Reusable E2000 APC Simplex 9 / 125μm Fiber Optic Connectors Green Color Quick Connector

  • Reusable E2000 APC Simplex 9 / 125μm Fiber Optic Connectors Green Color Quick Connector
  • Reusable E2000 APC Simplex 9 / 125μm Fiber Optic Connectors Green Color Quick Connector
  • Reusable E2000 APC Simplex 9 / 125μm Fiber Optic Connectors Green Color Quick Connector
Place of Origin China
Brand Name OMC or OEM
Certification ROHS and ISO
Model Number E2000 APC Simplex 9 / 125μm
Minimum Order Quantity 100 pcs
Price Negotiable
Packaging Details 200 pcs per plastic bag, This easy to take and well-protected fiber optical cable package has been labelled and marked by OMC as default.
Delivery Time 3 days
Payment Terms T/T, Western Union, alipay, paypal, credit card, , MoneyGram, L/C
Supply Ability 1000000 pcs per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Products Reusable E2000 APC Simplex 9 / 125μm Fiber Optic Connectors Green Color Quick Connector Insertion Loss <0.2dB
Return Loss >60dB Color Green
Fiber Mode SM Match With Cable OD 0.9mm, 1.2mm, 1.6mm, 2.0mm, And 2.8mm
High Light

fiber optic cable connectors

,

simplex fiber optic connector
Leave a Message
Product Description

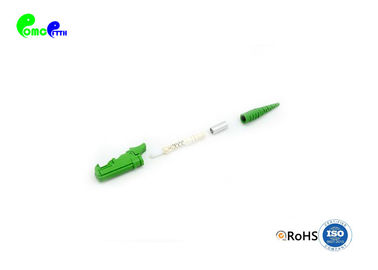

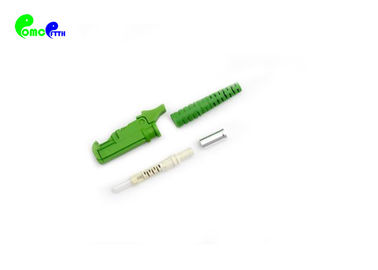

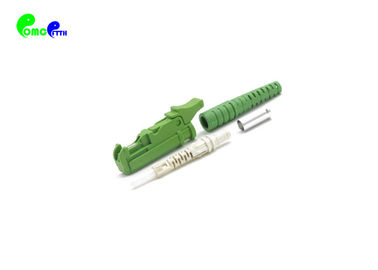

Reusable E2000 APC Simplex 9 / 125μm Fiber Optic Connectors Green Color Quick Connector





E2000 fiber optic connector has a push-pull coupling mechanism, with an automatic metal shutter in the connector and adapter as dust and laser beam protection. One-piece design for easy and quick termination, used for high safety and high power applications. E2000 connector available for Singlemode PC, APC and Multimode PC. Compact packaging is available for high density requirements.



Optical Connector is a reusable passive component which could be applied in fiber and Cable connection. They are widely used in ODF, ODN,PON etc.



Products Details



Fiber Connector E2000 Ceramic Material Zirconia Ceramic
Housing

SM: Blue

MM: Beige

APC: Green

 Boot Size

0.9mm,

2.0mm,

3.0mm
Operating Temp Range -40~80°C Boot color

SM: Blue

MM: Beige

APC: Green
Suit Cable 0.6-3.0mm OD cable Available for

Not assembled Multi-Piece

Pre-assembled one piece



E2000 APC ferrule



Reusable E2000 APC Simplex 9 / 125μm Fiber Optic Connectors Green Color Quick Connector 0



Environmental Performance:



Operating Environment: -40°C ~ + 80°C

Meets UL94-V0 Flammability Requirements

ROHS compliant



Optical Performance:



Meets Telcordia GR-326-Core issue

IL(Typical):SM<0.3dB; MM <0.3dB:

RL(Typical):SM >50dB; MM >35dB:



Mechanical Performance:



Connection Durability: 500 Matings cycles

Connector Repeatability: MM<0.2dB; SM <0.1dB



Application



Patch cord&pigtail produce&Manufacture



Ferrule for E2000 Connector



Reusable E2000 APC Simplex 9 / 125μm Fiber Optic Connectors Green Color Quick Connector 1
