LC APC - LC APC Fiber Optic Adapter With High Precision Alignment Sleeves
| Place of Origin | China |
|---|---|
| Brand Name | OMC or OEM |
| Certification | ROHS and ISO |
| Model Number | LC APC Duplex Green |
| Minimum Order Quantity | 100 piece |
| Price | Negotiable |
| Packaging Details | 25 pcs in a plastic box, several boxes in a carton of 54*39*35cm |
| Delivery Time | 3 days after payment confirmed |
| Payment Terms | T/T, Western Union |
| Supply Ability | 1000000 pcs per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Place Of Origin | Guangdong, China (Mainland) | Brand Name | OMC Or OEM |
|---|---|---|---|
| Model Number | LC APC Duplex Green | IL | <0.2dB |
| Return Loss | >60dB | Durability | 1000 Times |
| Temp | -40°C To +80°C | Certification | ISO9001:2008,ROHS |
| Sleeve | Ceramic LC 1.25mm Sleeve | Material | Plastic |
| Withdrawal Force (g/f) | 200~600 | Application | Patch Panels, ODF And Other Optical Connections |
| High Light | single mode fiber adapter,fiber optic cable adapter |
||
Product Description

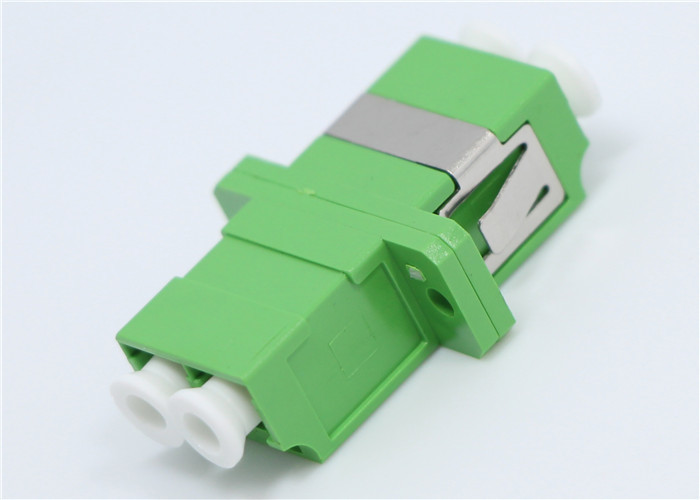

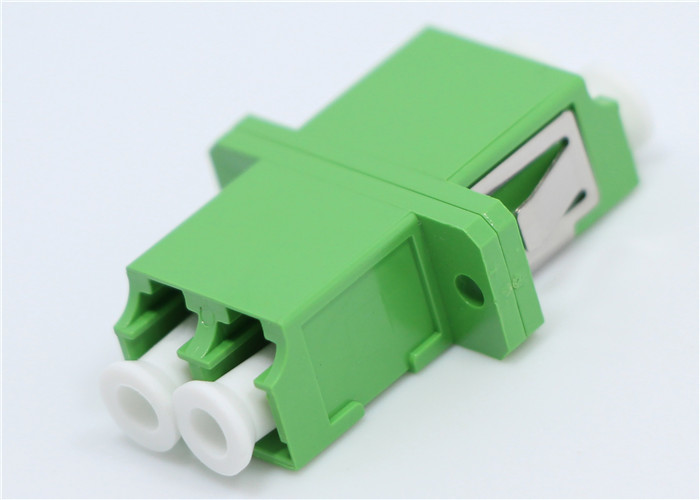

LC APC - LC APC Fiber Optic Adapter Duplex Green color With full Flange 0.2dB
Our range of LC adapters have high precision alignment sleeves for improved reliability and better reconnectability. The LC adaptors come with ceramic sleeves for both singlemode and multimode. The housing is available in different colours with options for flange or flangeless body and metal or inbuilt clips.
Optical Adapter are developed to couple and mate two identical or two different (hybrid) connector plugs. The housing of the Adaptors of the last generation has a reference key for the right position coupling and zirconia or phosphorus bronze split sleeve for high alignment.
OMC could supply standard types of Adapters, such as FC, SC, LC, ST, MU, MTRJ, MPO/MTP etc. Hybrid is also available.
OMC Adapters design, material and manufacturing process assure long life and high repeatability of optical performances even for different brand connectors mating.
Spec Performance:
| Connector Type | LC-LC | Polish Type | APC |
| Fiber Counts | Duplex | Fiber Mode | Singlemode |
| Insertion Loss | ≤0.2dB | Durability | ≤0.1dB |
| Flammability Rate | UL94-V0 | Working Temperature | -25~70°C |
Application:
- Patch panels, ODF and other optical connections.
- Optical networks demarcation and monitoring point
Application:
1. Patch panels, ODF and other optical connections.
2. Optical networks demarcation and monitoring point
Drawing:
Packaging & Shipping
Several piece in one plastic box,
Several boxes then packed in a 54*39*35 carton paper box
Other size carton is available too.
