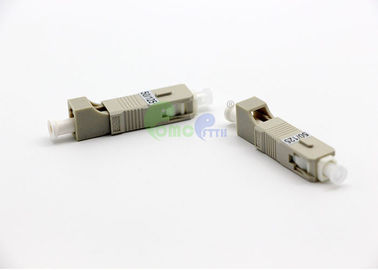

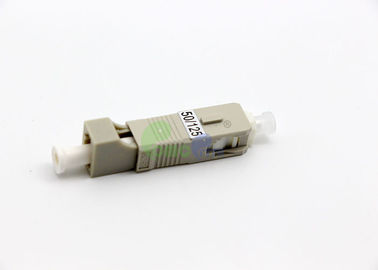

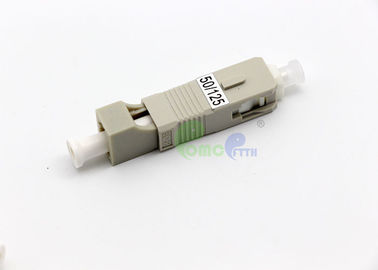

Simplex Converter LC To SC Fiber Adapter Multimode 50/125 For Patch Panels

Simplex Converter LC / UPC Female To SC / UPC Male Multimode 50/125 Hybrid Adapter

• This is a SC-LC 2.5mm to 1.25 adapter for visual fault locator with a connector plug (male )end and an adapter socket (female) end . it simply plug to the 2.5mm hole to convert it to a 1.25 hole
• The adapter fits in various circumstances, offering flexibility and reducing the size, weight and complexity of the system. It adapts Single-mode ceramic earthenware
• Insertion loss: ≤0.5dB (For Adaptor) / Attenuation range: 0-25dB (For Attenuator)
• Tensile strength: 200 ~ 600g / Mating cycles (1000 times) ≤0.5dB
• FC to LC Adapter is very practical and compact, easy to carry and operate. its temperature range: -40 ℃ ~ + 80 ℃

Female to male hybrid Adaptor

Hybrid adaptors are used for mating 2 different style connectors or assemblies. These adaptors have a female adaptor end united to the back end of a different male connector which can be connected to an additional adaptor or interface of the same type. This can change the assembly end without the need for additional cable, therefore reducing space. Our hybrid adaptors conform to international standards, are quality tested, and are available in singlemode and multimode and come in many different connector-type configurations.

Optical Adaptor are developed to couple and mate two identical or two different (hybrid) connector plugs. The housing of the Adaptors of the last generation has a reference key for the right position coupling and zirconia or phosphorus bronze split sleeve for high alignment.

OMC could supply standard types of Adaptors, such as SC-FC, SC-ST, FC-ST, SC-LC, FC-LC and ST-LC etc. Hybrid adaptor.

OMC Adaptors design, material and manufacturing process assure long life and high repeatability of optical performances even for different brand connectors mating.

Spec Performance:

• IL: <0.3B,
• Withdrawal force (g/f): 200~600
• Durability: <0.10 dB typical change, 1000 matings
• Temp.: -40°C to +80°C
• ROHS certificated

Application:

• Patch panels, ODF and other optical connections.
• Optical networks demarcation and monitoring point
