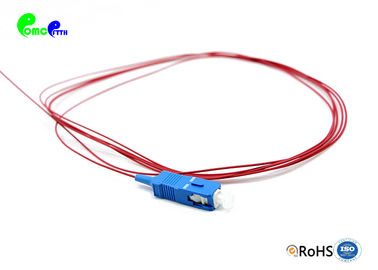

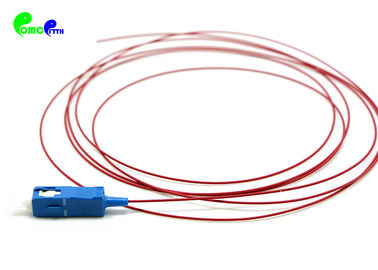

SC Fiber Pigtail 2m SM G657A 9/ / 125 Simplex 900μm red Color LSZH TIght buffer

  • SC Fiber Pigtail 2m SM G657A 9/ / 125 Simplex 900μm red Color LSZH TIght buffer
  • SC Fiber Pigtail 2m SM G657A 9/ / 125 Simplex 900μm red Color LSZH TIght buffer
  • SC Fiber Pigtail 2m SM G657A 9/ / 125 Simplex 900μm red Color LSZH TIght buffer
Place of Origin China
Brand Name OMC
Certification ROHS and ISO
Model Number 2 Meters SM SC UPC Simplex 900μm
Minimum Order Quantity 1
Price Negotiation
Packaging Details PP bage and CTN
Delivery Time 5-8 working days
Payment Terms L/C, T/T, Western Union

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name SC Fiber Pigtail 2m SM G657A 9/ / 125 Simplex 900μm Red Color LSZH TIght Buffer Quality Level IEC Grade B And IEC Grade C
Interstion Loss ≤0.30dB Return Loss ≥50 DB
Standard Telcordia GR-326.Core 100% 3D Interference Tested Available
Clean End Face Ferrule 100% Clean,no Dust, No Water,no Scratch Operating Temperature -40~+85
High Light

fiber optic pigtail connector

,

fiber pigtails patch cords
Leave a Message
Product Description

SC Fiber Pigtail 2m SM G657A 9/ / 125 Simplex 900μm red Color LSZH TIght buffer Red color





Pigtails are used for splice applications when terminating outside plant cable. It’s consists of a connector and a special length of fiber cable. Meets Telcordia GR-326 Core and ROHS requirements. All of OMC pigtails are factory inspected and tested, with available interferometer data upon request.





Products info



Connector A

SC

Connector B

Unterminated

Fiber Category

Single-mode (OS2)

Fiber Count

Simplex

Polish

UPC

Cable Diameter

0.9mm

Jacket Material

LSZH

Jacket Color

Red/12 different colors

Wavelength

1310nm and 1550nm

Durability

>1000 Times

Insertion loss

≤0.3dB

Interchangeability

≤0.2dB

Return loss

≥50dB

Vibration

≤0.2dB

Operating temperature

-40~75°C

Storage temperature

-45~85°C



 Geometric Specification (only for 3D interferometer tested)



 Test items

 Connectors

PC End-face

APC End-face

Radius of Curvature

SC/FC/ST

10~25 mm

5~12 mm

LC/MU

7~25 mm

5~15 mm

Apex Offset

≤50 um

Fiber Spherical Height

+/- 50 nm

Angular Offset

       ------

8°± 0.2°


CUSTOM option




OMC also provides a full set of OEM services, such as fiber connector, length, color, fiber grade, specification, material, package etc.



Length tolerance



SC pigtail.png



Overall Length(L)(m) length of tolerance(cm)
0<L<1 +5/-0
1<L<10 +10/-0
10<L<40 +15/-0
40<L +0.5% x L/-0



Fiber Optic Pigtail for Fusion Splicing



Fiber pigtail cables provide a fast way to make factory terminations in the field.



 SC Fiber Pigtail 2m SM G657A 9/ / 125 Simplex 900μm red Color LSZH TIght buffer 3



Packaging


This easily taken and well-protected fiber optical cable package has been labelled and marked by OMC as default
.Standard carton size : 34*22*15 cm; 44*34*24 cm ; 54*39*34 cm . Which carton to be used depends on
goods Qty . Packing can be customized.

SC Fiber Pigtail 2m SM G657A 9/ / 125 Simplex 900μm red Color LSZH TIght buffer 4





Company Information:



OMC industry co., limited, which was founded by an expert team, has been exporting FTTX passive products since 2007. We focus on providing innovative and integrated FTTX solutions for a variety of applications/Networks. Our capabilities include product/solution design, development, enhancement and integration. Our products are among the highest performing in the industry and truly represent the best values in the industry. We also offer training, pre and post-sales support. We help you select the right products for your Optical network's needs.



dustfree wrokshop.jpg


Quality contorl.jpg


SC Fiber Pigtail 2m SM G657A 9/ / 125 Simplex 900μm red Color LSZH TIght buffer 9

SC Fiber Pigtail 2m SM G657A 9/ / 125 Simplex 900μm red Color LSZH TIght buffer 10


FAQ:



1. Are you the real factory?

Yes,we are the real factory more than 10 years



2. What is your main products?

Outdoor fiber optic cables; indoor fiber optic cables;FTTH Drop cables;

Indoor armored patch cords fiber cable; Optical patch cords SC/LC/FC/ST; MTP/MPO optical patch cord.



3. Do you have certificate for raw material?

We build long-term relationship cooperation with qualified ISO9001, ROHS raw material suppliers.



4. What is your delivery time?

Within 24 hours for normal kinds of fiber optic cable;

3~5 days for fiber optic patch cords with 10000 connectors.



5. MOQ: what is your minimum quantity?

MOQ for fiber optic cables: 1KM

There is no MOQ required for fiber optic patch cords,as there’s stock for normal kinds.



6. Do you have distributor in other country or domestic?

Until now, we sell our products to customers directly. And factory price could be offered.



7. Payment

For large orders: T/T, L/C

For small orders: T/T,Western Union and Paypal are acceptable
