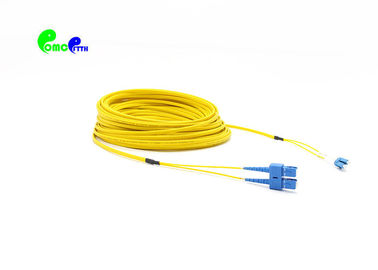

Flat Duplex Fiber Optic Patch Cables LC UPC - SC UPC Single Mode 9 / 125 SM DX 10m LSZH Jumper
| Place of Origin | China |
|---|---|
| Brand Name | OEM or OMC |
| Certification | ROHS and ISO |
| Model Number | LC UPC - SC UPC SM DX 2.0mm LSZH |
| Minimum Order Quantity | 5pcs |
| Price | Negotiable |
| Packaging Details | One piece in a plastic bag, several pieces in the carton of 54*39*35cm carton |
| Delivery Time | 3-7days |
| Payment Terms | Western Union, T/T, Paypal |
| Supply Ability | 1000000pcs per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Products | LC UPC - SC UPC SM Duplex 2.0mm LSZH Optical Patch Cord | Insertion Loss | ≤0.12dB(IEC Grade B) |
|---|---|---|---|
| Return Loss | ≥50dB(min) | Cable OD | 2.0mm Duplex |
| Fiber Type | 9/125 Single Mode | Material | PVC/LSZH Jacket |
| Certification | ISO9001, RoSH | Operating Temperature | -40~+75Degree |
| High Light | fiber optic jumpers,fibre optic patch leads |
||
Product Description
Flat Fiber Optic Patch Cables LC UPC - SC UPC Duplex Single Mode 9 / 125 SM DX LSZH Jumper
Patch Cords are used to provide optical connection for fiber optic electronics. The use of the patch cord provides a quick and easy method for routing fiber patches in data centers, head-ends, cellular hubs and central offices. The patch cord can be used in interconnect or cross-connect path connecting the incoming fibers to the electronic equipment and providing patching within the fiber paths. Patch Cords include simplex, duplex and Multi-fibers assemblies.
The 9/125μm OS2 single mode bend insensitive fiber optic cable is less attenuation when bent or twisted compared with traditional optical fiber cables and this will make the installation and maintenance of the fiber optic cables more efficient. It can also save more space for your high density cabling in data centers, enterprise networks, telecom room, server farms, cloud storage networks, and any places fiber patch cables are needed.
This 9/125 OS2 single mode fiber optic cable is ideal for connecting 1G/10G/40G/100G/400G Ethernet connections. It can transport data for up to 10km at 1310nm, or up to 40km at 1550nm.
Connector’s Standard
LC: TIA/EIA, FOCIS10, GR-326 EIA/TIA-604-10, IEC61754-20 and JIS C5973.
SC: TIA/EIA, FOCIS3, GR-326.NTT-SC IEC61754-4 and JIS C5973.
Packaging & Delivery
Packaging Details
1. Fumigation of wood drum, plywooden drum or wooden drum
2. carton box
3. customized
Port: Shenzhen
Description
Flat Duplex Patch Cord LC UPC-SC UPC Single Mode Fibre Optic Patch Cable Yellow LSZH Jumper
Optical Specifications
| Connector 1 | LC | Connector 2 |
SC |
| Fiber Mode | 9/125μm | Jacket Color |
SM:Yellow/Blue/White |
| Polish | UPC | Wavelength |
SM:1310/1550nm |
| Cable Type | Flat Duplex | Jacket Material | LSZH/PVC/OFNR/OFNP |
| Return loss | SM UPC ≥ 50dB(min) | Insertion loss |
≤0.3dB |
| Jacket OD(mm) |
2.0x4.1 |
Vibration&Interchangeability | ≤0.2dB |
| Operating temperature |
-20~70°C |
Storage temperature |
-40~80°C |
Geometric Specification (For special request)
| Items | Connector | PC End-face | APC End-face |
| Radius of Curvature | SC/FC/ST | 10~25 mm | 5~12 mm |
| LC/MU | 7~25 mm | 5~15 mm | |
| Apex Offset | ≤50 um | ||
| Fiber Spherical Height | +/- 100 nm | ||
| Angular Offset | ------ | 8°± 0.5° | |
End-face Quality (SM)
| Zone | Range (μm) | Scratches | Defects | Reference |
| A: Core | 0 to 25 | None | None | IEC 61300-3-35:2015 |
| B: Cladding | 25 to 115 | None | None | |
| C: Adhesive | 115 to 135 | None | None | |
| D: Contact | 135 to 250 | None | None | |
| E: Rest of ferrule | None |
None
|
||
Standard Compliance
1. TIA 604 (FOCIS)
2. TIA/EIA 492AAAE
3. IEC 61754
4. IEC 60793-2-10
5. IEC61300-3-35
6. YD/T1272.1-2003
7. RoHS, ISO9001 Compliant
Features
1. High quality zirconia ferrules.
2. Good repeatability and interchange.
3. Flame-retardant, rugged and durable jacket.
4. 100% optically tested for insertion loss to ensure high quality
Application
1. Data Center
2. Enterprise
3. Fiber to the X (FTTX)
4. LAN and WAN
5. CATV Network
6. Telecommunications Network
Packaging
This easily taken and well-protected fiber optical cable package has been labelled and marked by OMC as default
.Standard carton size : 34*22*15 cm; 44*34*24 cm ; 54*39*34 cm . Which carton to be used depends on goods
Qty . Packing can be customized.
Company Information:
OMC industry co., limited, which was founded by an expert team, has been exporting FTTX passive products since 2007. We focus on providing innovative and integrated FTTX solutions for a variety of applications/Networks. Our capabilities include product/solution design, development, enhancement and integration. Our products are among the highest performing in the industry and truly represent the best values in the industry. We also offer training, pre and post-sales support. We help you select the right products for your Optical network's needs.
FAQ:
1. Are you the real factory?
Yes,we are the real factory more than 10 years
2. What is your main products?
Outdoor fiber optic cables; indoor fiber optic cables;FTTH Drop cables;
Indoor armored patch cords fiber cable; Optical patch cords SC/LC/FC/ST; MTP/MPO optical patch cord.
3. Do you have certificate for raw material?
We build long-term relationship cooperation with qualified ISO9001, ROHS raw material suppliers.
4. What is your delivery time?
Within 24 hours for normal kinds of fiber optic cable;
3~5 days for fiber optic patch cords with 10000 connectors.
5. MOQ: what is your minimum quantity?
MOQ for fiber optic cables: 1KM
There is no MOQ required for fiber optic patch cords,as there’s stock for normal kinds.
6. Do you have distributor in other country or domestic?
Until now, we sell our products to customers directly. And factory price could be offered.
7. Payment
For large orders: T/T, L/C
For small orders: T/T,Western Union and Paypal are acceptable
