Unibody LC - LC SM Duplex 2.0mm Fiber Patch cord / Pigtail from China available for SM , OM1 ,OM2 , OM3 , OM4 ,
| Place of Origin | China |
|---|---|
| Brand Name | OEM or OMC |
| Certification | ROHS and ISO |
| Model Number | High quality Unibody LC - LC Duplex Fiber Patch cord |
| Minimum Order Quantity | 100 |
| Price | Negotiable |
| Packaging Details | One piece in a plastic bag, several pieces in the carton of 54*39*35cm carton |
| Delivery Time | 3-7days |
| Payment Terms | Western Union, T/T, Paypal |
| Supply Ability | 10000pcs per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Products | High Quality Unibody LC - LC Duplex Fiber Patch Cord | Polish Type | UPC |
|---|---|---|---|
| Cable Type | Duplex 2.0mm OD Zip Cord Cable | Fiber Mode | Single Mode 9/125 |
| Insertion Loss | ≤0.3dB(IEC Grade C); ≤0.12dB(IEC Grade B) | Return Loss | SM UPC ≥ 50dB(min); SM APC ≥ 60dB(min); MM PC ≥ 35dB(min) |
| Cable Jacket | LSZH/PVC | Operating Temperature | -40-85℃ |
| High Light | fiber optic jumpers,fibre optic patch leads |
||
Product Description

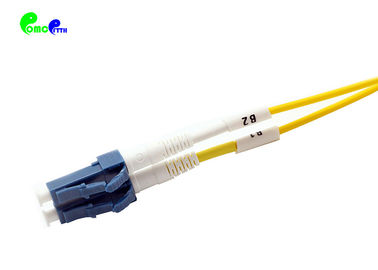

High quality Unibody LC - LC Duplex Fiber Patch cord / Pigtail from China available for SM , OM1 ,OM2 , OM3 , OM4 , OM5
Unibody LC Patch cord/Pigtail is a new kind of LC patch cables which assembled with our New generation UNIBODY LC connector. As everyone knows that traditional LC housing included 2pieces. But our Unibody LC is just one piece. The first advantage is much stable and can withstand bigger surface impact force than standard LC. Of course, this Unibody LC connector have more advantages. At the same time, It has a flexible Clip, can be assembled and unassembled easily. So good for polarity changeable and Simplex&Duplex changeable.
Products Details
Advantages
Optical Specifications-Standard quality
|
Insertion loss |
≤0.25dB Mean (Standard) |
Interchangeability |
≤0.2dB |
|
Return loss |
SM UPC≥50dB SM APC≥60dB MM PC≥35dB |
Vibration |
≤0.2dB |
|
Polarity |
A(Tx) to B(Rx) |
Maximum pulling force |
660N(<12 cores) 1320N(>12 cores) |
Optical Specifications-IEC Grade B quality
|
Insertion loss |
≤0.12dB mean, ≤0.25dB max. for >97% of sample |
Interchangeability |
≤0.2dB |
|
Return loss |
SM UPC≥50dB SM APC≥60dB MM PC≥35dB |
Vibration |
≤0.2dB |
|
Polarity |
A(Tx) to B(Rx) |
Maximum pulling force |
660N(<12 cores) 1320N(>12 cores) |
Geometric Specification( if Customer requested)
|
Items |
Parameter |
||
|
Polishing |
PC |
APC |
|
|
ROC |
LC |
7~ 25 |
5 ~ 12 |
|
Apex Offset |
≤ 50 |
||
|
Fiber Spherical Height |
±100 |
||
|
Angle |
± 0.5 |
8 ± 0.5 |
|
End-face Quality (SM)
SM UPC SM APC
|
Zone |
Range (μm) |
Scratches |
Defects |
Reference |
|
A: Core |
0 to 25 |
None |
None |
IEC 61300-3 -35:2015 |
|
B: Cladding |
25 to 115 |
None |
None |
|
|
C: Adhesive |
115 to 135 |
None |
None |
|
|
D: Contact |
135 to 250 |
None |
None |
|
|
E: Rest of ferrule |
None |
None |
||
End-face Quality (MM)
MM PC
|
Zone |
Range (μm) |
Scratches |
Defects |
Reference |
|
A: Core |
0 to 65 |
None |
None |
IEC 61300-3 -35:2015 |
|
B: Cladding |
65 to 115 |
None |
None |
|
|
C: Adhesive |
115 to 135 |
None |
None |
|
|
D: Contact |
135 to 250 |
None |
None |
|
|
E: Rest of ferrule |
None |
None |
||
Length Tolerance
|
Overall Length(L)(m) |
length of tolerance(cm) |
|
0<L<1 |
+5/-0 |
|
1<L<10 |
+10/-0 |
|
10<L<40 |
+15/-0 |
|
40<L |
+0.5% x L/-0 |
High Quality Fibre Optic Cable Guarantee
Comprehensive performance testing makes sure the cable work more securely and data transmission more reliable and stable in your network.
Company Information:
OMC industry co., limited, which was founded by an expert team, has been exporting FTTX passive products since 2007. We focus on providing innovative and integrated FTTX solutions for a variety of applications/Networks. Our capabilities include product/solution design, development, enhancement and integration. Our products are among the highest performing in the industry and truly represent the best values in the industry. We also offer training, pre and post-sales support. We help you select the right products for your Optical network's needs.
FAQ:
1. Are you the real factory?
Yes,we are the real factory more than 10 years
2. What is your main products?
Outdoor fiber optic cables; indoor fiber optic cables;FTTH Drop cables;
Indoor armored patch cords fiber cable; Optical patch cords SC/LC/FC/ST; MTP/MPO optical patch cord.
3. Do you have certificate for raw material?
We build long-term relationship cooperation with qualified ISO9001, ROHS raw material suppliers.
4. What is your delivery time?
Within 24 hours for normal kinds of fiber optic cable;
3~5 days for fiber optic patch cords with 10000 connectors.
5. MOQ: what is your minimum quantity?
MOQ for fiber optic cables: 1KM
There is no MOQ required for fiber optic patch cords,as there’s stock for normal kinds.
6. Do you have distributor in other country or domestic?
Until now, we sell our products to customers directly. And factory price could be offered.
7. Payment
For large orders: T/T, L/C
For small orders: T/T,Western Union and Paypal are acceptable.
