12 Cores Fiber Termination Box Wall Mounted Fiber Distribution Box Outdoor Lockable IP55 ABS Material

  • 12 Cores Fiber Termination Box Wall Mounted Fiber Distribution Box Outdoor Lockable IP55 ABS Material
  • 12 Cores Fiber Termination Box Wall Mounted Fiber Distribution Box Outdoor Lockable IP55 ABS Material
  • 12 Cores Fiber Termination Box Wall Mounted Fiber Distribution Box Outdoor Lockable IP55 ABS Material
  • 12 Cores Fiber Termination Box Wall Mounted Fiber Distribution Box Outdoor Lockable IP55 ABS Material
Place of Origin China
Brand Name OMC or OEM
Certification RoHS and ISO
Model Number 12 Cores Fiber Distribution Box FDB-12B
Minimum Order Quantity 5pcs
Price Negotiable
Packaging Details one peace in box, several pieces in cartoon
Delivery Time 3-7 work days
Payment Terms L/C, T/T, Western Union, Paypal
Supply Ability 20000 per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name 12 Cores Fiber Termination Box Wall Mounted Fiber Distribution Box Outdoor Lockable IP55 ABS Material Adapter 12pcs Of SC /24pcs Of LC
Cable Ports 2 In/12 Out Applicable Cable OD 7-13mm
Box Dimensions(mm) 248x189x72 Material ABS/ABS+PC
Max Capacity(F) 24F LC Installation Method Wall Mount And Pole Mount
High Light

fiber distribution box

,

fiber optic junction box
Leave a Message
Product Description

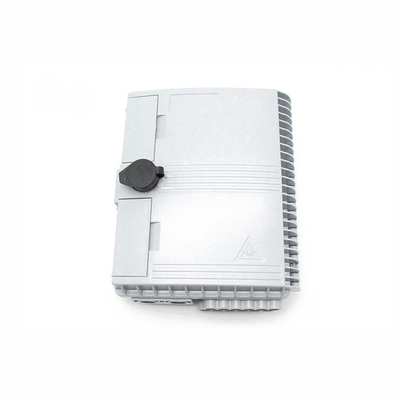

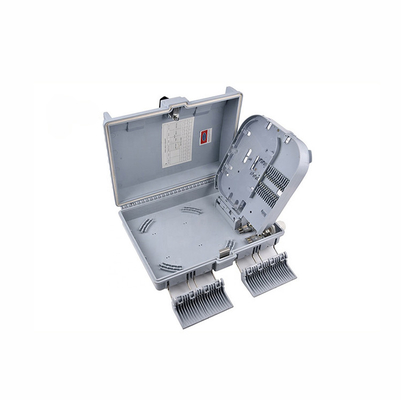

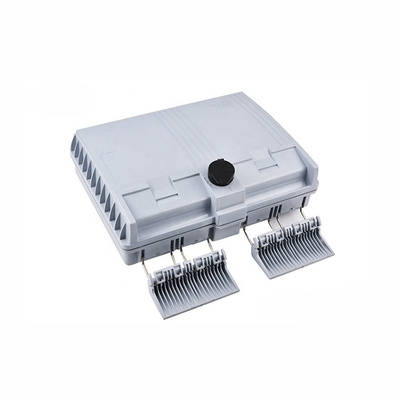

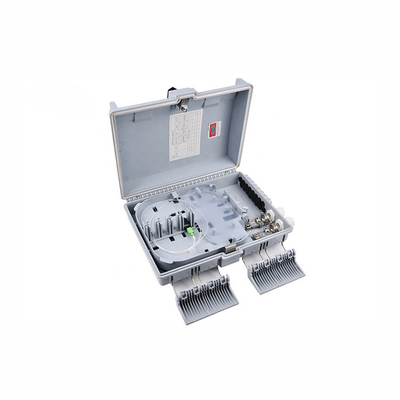

12 Cores Fiber Termination Box Wall Mounted Fiber Distribution Box Outdoor Lockable IP55 ABS Material



This Lockable IP55 distribution box is supplied loaded or unloaded and offers the ability to terminate 12 fibers housed in a strong robust ABS enclosure for indoor and outdoor applications. This terminal box terminates up to 1-2 fiber optic cables, offers spaces for splitters and up to 12 fusions, allocates 12SC adapters and working under both indoor and outdoor environments. It is a perfect cost-effective solution-provider in the FTTX networks. Accommodates splitters and up to 12 SC simplex adapters ,Max allowance for entry cables: max diameter 15mm, up to 1 cable, Max allowance for exit cables: Up to 12 simplex cables



Optical Specifications:



Model FDB-12B
Adapter 12pcs of SC /24pcs of LC
Cable Ports 2 In/12 out
Applicable cable OD 7-13mm
Box Dimensions(mm) 248x189x72
Material ABS/ABS+PC
Max capacity(F) 24F LC
Installation method wall mount and pole mount



Packaging & Delivery:



1. paper box
2. carton box
3. customized

Port: Shenzhen



Description:



Premium Performance Fiber Optic Terminal Box



Fiber optic terminal box is widely used in FTTH access network, Telecommunication Networks, CATV Networks,

Data communications Networks, Local Area Networks.



12 Cores Fiber Termination Box Wall Mounted Fiber Distribution Box Outdoor Lockable IP55 ABS Material 0

12 Cores Fiber Termination Box Wall Mounted Fiber Distribution Box Outdoor Lockable IP55 ABS Material 1



Operation conditions:



Temperatures: -40℃ -- 60℃

Humidity: 93% at 40℃

Air Pressure: 62kPa – 101kPa



Product Highlights



IP 55 Rating for external use

Lockable door for added security

Integrated cable tie points for securing incoming cable

Up to 12 splice & SC connection points

Removable splice tray for easy installation

Accepts loose tube, distribution and pre-terminated cables

Integrated bend radius protection

Removable door for ease of installation

Supplied with 12 heat shrink splice protectors

Supplied with transit tubing

Supplied with wall fixings and tie wraps

ROHS, REACH & SvHC compliant



FAQ:



1. Are you the real factory?

Yes,we are the real factory more than 10 years



2. What is your main products?

Outdoor fiber optic cables; indoor fiber optic cables;FTTH Drop cables;

Indoor armored patch cords fiber cable; Optical patch cords SC/LC/FC/ST; MTP/MPO optical patch cord.



3. Do you have certificate for raw material?

We build long-term relationship cooperation with qualified ISO9001, ROHS raw material suppliers.



4. What is your delivery time?

Within 24 hours for normal kinds of fiber optic cable;

3~5 days for fiber optic patch cords with 10000 connectors.



5. MOQ: what is your minimum quantity?

MOQ for fiber optic cables: 1KM

There is no MOQ required for fiber optic patch cords,as there’s stock for normal kinds.



6. Do you have distributor in other country or domestic?

Until now, we sell our products to customers directly. And factory price could be offered.



7. Payment

For large orders: T/T, L/C

For small orders: T/T,Western Union and Paypal are acceptable.
