SC APC Fast connector / Field install connector / for FTTH project available for SC UPC , SC APC , LC , FC .....
| Place of Origin | China |
|---|---|
| Brand Name | OMC or OEM |
| Certification | RoHS |
| Model Number | SC UPC /APC |
| Minimum Order Quantity | 100 pcs |
| Price | Negotiable |

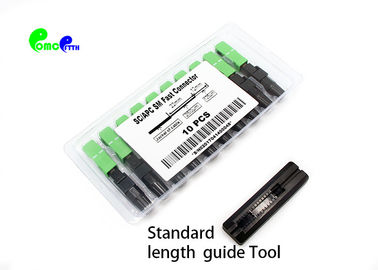

| Packaging Details | 200 pcs per plastic bag, This easy to take and well-protected fiber optical cable package has been labelled and marked by OMC as default. |
| Delivery Time | 3 days |
| Payment Terms | T/T, Western Union, alipay, paypal, credit card, , MoneyGram, L/C |
| Supply Ability | 1000000 pcs per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Products | SC APC Fast Connector | Insertion Loss | <0.5dB (Max) |
|---|---|---|---|
| Return Loss | >50dB | Fiber Mode | SM |
| Cable Size | 2x3mm FTTH Drop Cable | Color | UPC SM Blue,APC Green |
Product Description

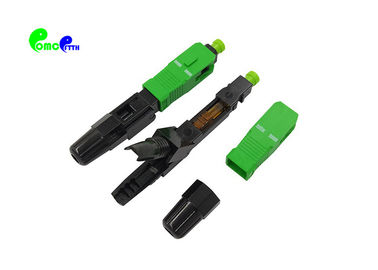

SC Field Install Fiber Optic Connector- Terminated onto 900µm Coated Fiber as Well as 2mm and 3mm Jacketed Cable
Field installation connector also be called Fast install connector is a new kind of connector that could be used in FTTH project scene.
Our Field Assembly Connector products have been factory-polished, eliminating the need for any polishing materials, thereby enabling the preparation and termination of optical fibers in a fraction of the time of other conventional methods. The connector also uses V-groove mechanical splice principals and therefore the use of an epoxy is not required for the termination of the connector.
This Fast Connector offers convenience in assembling and strong stability. It allows simple optical core connection without any additional practices, or adhesives. It does not require a working space by connecting itself in the challenging environments such as a telephone pole and a manhole. It reconnects the cables and reduces the connection defect rate by an installer error in the field.
The Field Assembly Connector series are already a popular solution for optical wiring inside buildings and floors for LAN & CCTV applications and with the expansion of FTTH, is already proving itself to be the connector of choice by incumbents, municipalities, utilities & alternative carriers.
Our Field Assembly Optical Connector series are now available in SC, LC, or FC variants, catering for 250um to 900um, and 2.0mm, 3.0mm diameter single mode and multimode fiber types, including Multi-mode 62.5/125um and Multi-mode 50/125um. The single-mode versions are available with UPC or APC ferrules.
Working principle
Optical Specification:
| Connector Type | SC | Polishing | UPC and APC |
| Ferrule | Ceramic | Fiber Mode | 9/125μm Single mode |
| Cable Diameters |
0.9/2.0/3.0mm Simplex cable 2x3 FTTH Drop Cable |
Length | 50mm/53mm/55mm/60mm |
| Insertion Loss | ≤0.3dB(typical);≤0.5dB(Max) | Return Loss | UPC≥40dB;APC≥50dB |
| Tension Strength | ≥50N | Operating Temp | -40°C~+75°C |
Products Family:
50mm type SC Fast connector
53mm type SC Fast connector

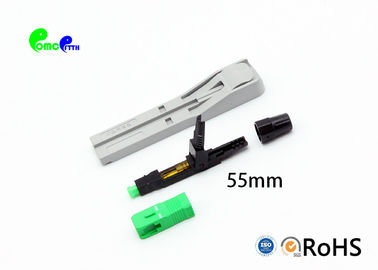

55mm type SC Fast connector
60mm type SC Fast connector
Installation introduction
Assembly of the connector requires only normal fiber preparation tools: a fiber stripping tool, wipes and a fiber cleaver. They don’t need to polishing, no epoxy, No electrical power supply, no fused the fiber. Just Strip the buffer, cleave and clean the fiber and then insert the fiber into the Fast Connector. Installation takes just minutes and couldn't be easier.
1, FTTH Drop cable stripper, To strip the Bow type 2x3mm Drop cable
2, 0.9mm/2.0mm/3.0mm Fiber Cable Stripper. To Strip those round cable and bare fiber of 2x3mm Drop cable
3, Fiber cleaver to cut the fiber of Cable&Fiber

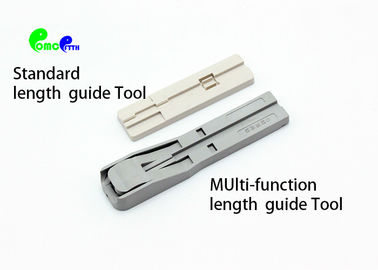

4,Use the Length guard board cut the fiber in requested length,.
5,Alcohol, For Fiber Clean after cut
6, Cleanroom Wipes, for Fiber Clean after Alcohol Cleaned
