OSFP Interface CS UPC Single mode Optical Fiber Adapter 0.2dB

  • OSFP Interface CS UPC Single mode Optical Fiber Adapter 0.2dB
  • OSFP Interface CS UPC Single mode Optical Fiber Adapter 0.2dB
  • OSFP Interface CS UPC Single mode Optical Fiber Adapter 0.2dB
Place of Origin China
Brand Name OMC or OEM
Certification ROHS and ISO
Model Number 2 / 4 / 8 Fibers CS UPC SM
Minimum Order Quantity 5pcs
Price Negotiable
Packaging Details 25 pcs in a plastic box, several boxes in a carton of 54*39*35cm
Delivery Time 3 days after payment confirmed
Payment Terms L/C, T/T, Western Union, MoneyGram
Supply Ability 1000000 pcs per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name CS Fiber Optic Adapter Without Flange Insertion Loss ≤0.2dB
Return Loss SM UPC≥50 DB,APC≥60 DB;MM PC≥35 DB Durability (500 Mating) 0.1dB Max.
Withdrawal Force (g/f) 2.0N ~ 5.9N (200gf ~ 600gf) Storage Temp(℃) -40～+85
High Light

UPC SM Optical Fiber Adapter

,

OSFP Interface Optical Fiber Adapter

,

0.2dB Fiber Optic Cable Adapter
Leave a Message
Product Description

2 / 4 / 8 Fibers CS UPC Singlemode Fiber Optic Adapter Without Flange For Data Center





Network uplinks need to move to higher speeds to match servers. The IEEE has released a new standard (IEEE 802.3.bs- 2017), but currently there are parallel and WDM transceiver structures for 200/400G QSFP-DD/OSFP, each needing 8 optical lanes. Due to the QSFP interface, 2X duplex LC connectors cannot fit in the QSFP-DD/OSFP form factor. There- fore, network customers have requested a new LC design to fit the QSFP-DD/OSFP interface. In response, Senko has developed solutions incorporating CS Connectors/Adapter for use with QSFP-DD and OSFP transceivers to increase port density in 100/200/400G applications.



OMC offer Senko’s new CS Adapter is specifically designed for CS Connector. CS Adapters offer reduced ferrule pitch and higher density than LC connectors, and they support next-generation 200/400G QSFP-DD and OSFP transceivers.



Optical Performance



Test item (SM-9/125) UPC (SM-9/125) APC MM PC
Insertion Loss ≤0.2dB ≤0.2dB ≤0.2dB
Return Loss ≥50 dB ≥60 dB ≥35 dB
Durability (500 Mating) 0.1dB Max.
Withdrawal force (g/f) 2.0N ~ 5.9N (200gf ~ 600gf)
Storage Temp(℃)

-40～+85





Environment and Mechanical



Properties Test condition Conformance Test result
Vibration 10-55Hz, 1.5mm, 60min IEC61300-2-1 ≤0.2dB
Mating Durability 1000 Mating, clean every 25 mating. IEC61300-2-2 ≤0.2dB
Impact 1.5m, 8 drops IEC61300-2-6 ≤0.2dB
Strength of Coupling Mechanism 40N, 10Min, L=22-28cm IEC61300-2-12 ≤0.2dB
Temperature Cycling 40ºC to +75ºC, 40 cycles IEC61300-2-22 ≤0.2dB
Temperature humidity cycling 40ºC, 95%, 96Hr IEC61300-2-21 ≤0.2dB
Operating Temperature -40ºC to +85ºC   ≤0.2dB
Storage Temperature -40ºC to +85ºC

≤0.2dB





Products Highlights

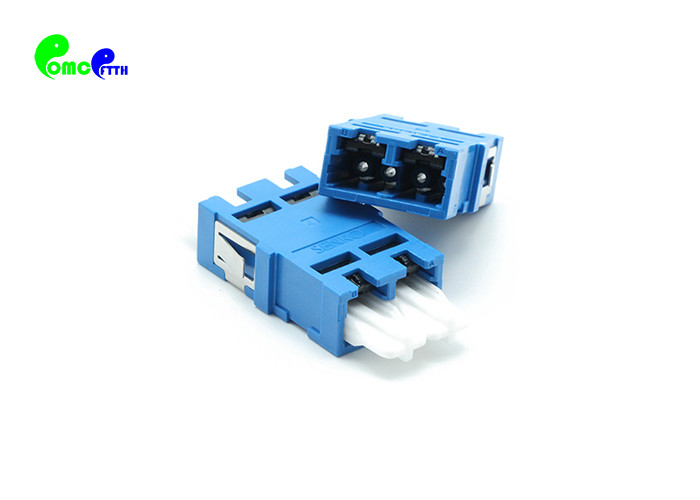

OSFP Interface CS UPC Single mode Optical Fiber Adapter 0.2dB 0



Products Group

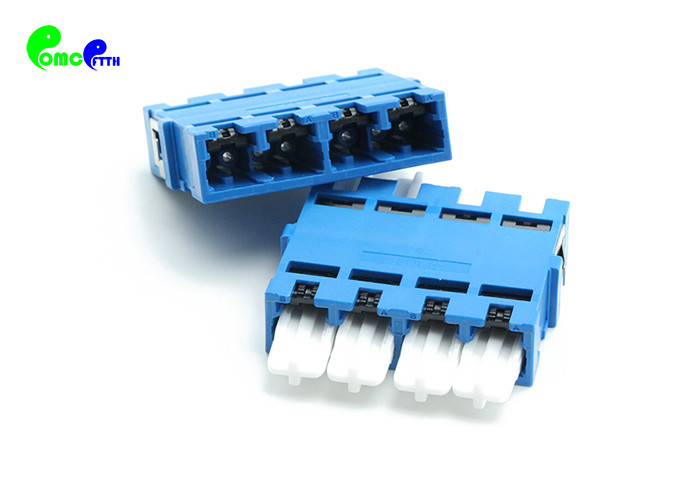

OSFP Interface CS UPC Single mode Optical Fiber Adapter 0.2dB 1

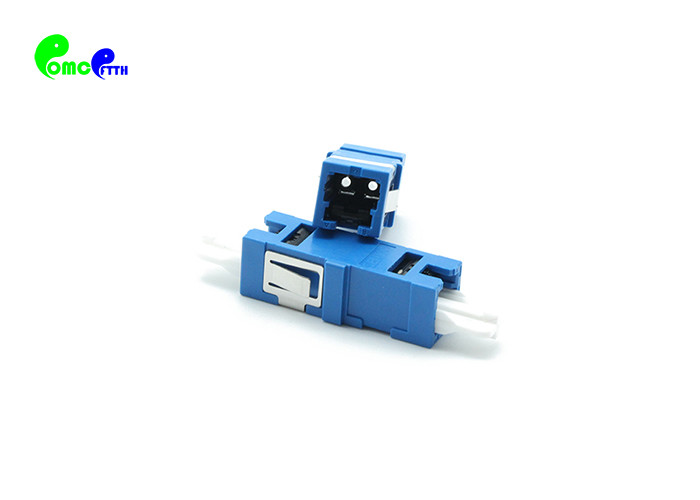

OSFP Interface CS UPC Single mode Optical Fiber Adapter 0.2dB 2





Company Information:



OMC industry co., limited, which was founded by an expert team, has been exporting FTTX passive products since 2007. We focus on providing innovative and integrated FTTX solutions for a variety of applications/Networks. Our capabilities include product/solution design, development, enhancement and integration. Our products are among the highest performing in the industry and truly represent the best values in the industry. We also offer training, pre and post-sales support. We help you select the right products for your Optical network's needs.



OSFP Interface CS UPC Single mode Optical Fiber Adapter 0.2dB 3

OSFP Interface CS UPC Single mode Optical Fiber Adapter 0.2dB 4

OSFP Interface CS UPC Single mode Optical Fiber Adapter 0.2dB 5


OSFP Interface CS UPC Single mode Optical Fiber Adapter 0.2dB 7

OSFP Interface CS UPC Single mode Optical Fiber Adapter 0.2dB 8


FAQ:



1. Are you the real factory?

Yes,we are the real factory more than 10 years



2. What is your main products?

Outdoor fiber optic cables; indoor fiber optic cables;FTTH Drop cables;

Indoor armored patch cords fiber cable; Optical patch cords SC/LC/FC/ST; MTP/MPO optical patch cord.



3. Do you have certificate for raw material?

We build long-term relationship cooperation with qualified ISO9001, ROHS raw material suppliers.



4. What is your delivery time?

Within 24 hours for normal kinds of fiber optic cable;

3~5 days for fiber optic patch cords with 10000 connectors.



5. MOQ: what is your minimum quantity?

MOQ for fiber optic cables: 1KM

There is no MOQ required for fiber optic patch cords,as there’s stock for normal kinds.



6. Do you have distributor in other country or domestic?

Until now, we sell our products to customers directly. And factory price could be offered.



7. Payment

For large orders: T/T, L/C

For small orders: T/T,Western Union and Paypal are acceptable
