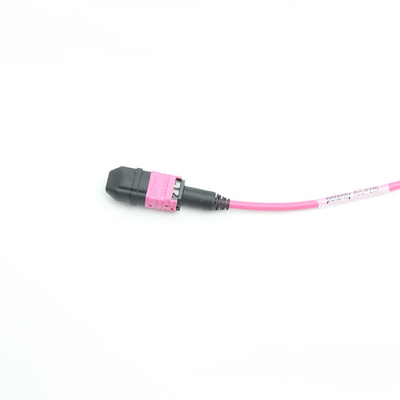

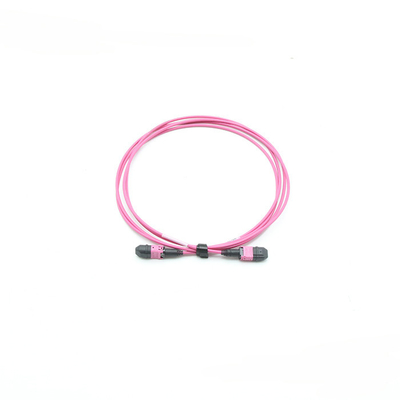

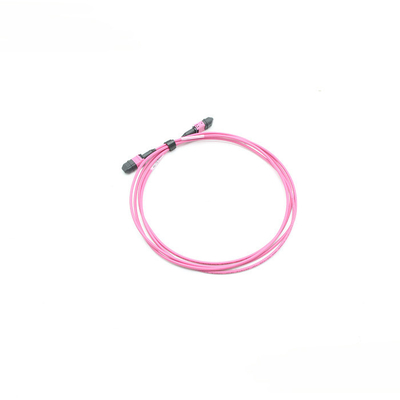

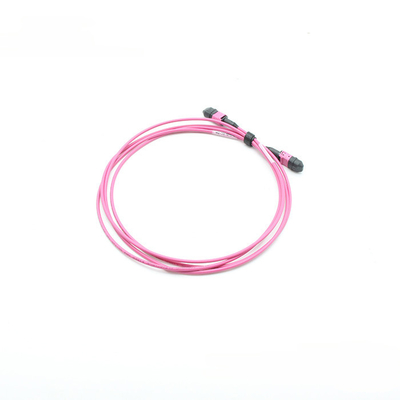

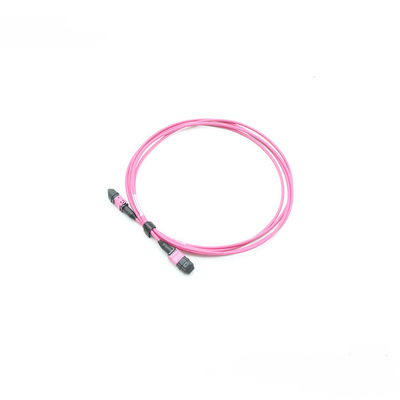

2m Polarity Changeable Senko MPO Trunk Cable Multimode 12F Fiber Optic Patch Cord

2m Polarity Changeable Senko MPO Trunk Cable Multimode 12F Fiber Optic Patch Cord

2m Polarity Changeable 12 Cores Senko MPO Female Trunk Cable Multimode Fiber Optic 12F MPO - MPO Fiber Optic Patch Cord

12F MPO(Female)- MPO(Female) 3.0mm LSZH Patch cable/trunk cable. MPO Fiber Patch cable/trunk cable is terminated with MTP connector on both ends. MTP Patch cable/trunk cables connect MPO modules together as a permanent link. The Patch cable/trunk cables are available with 12, 24, 48,60,72 ,96,144fibers. Support speeds up to 10/40/100Gbps data center solutions. They are typically adopted to interconnect cassettes, panels or ruggedized MTP fan-outs, and to facilitate rapid deployment of high-density backbone cabling in data centers and other high fiber environments. Besides, MTP also provides much flexibility and convenience once you have to change the connector style in the patch panels. Instead of changing the connector on the cable trunk, just installing a new cassette with the new connector style on the cross-connect side of the patch panel.

The merits of MTP/MPO Patch cable/trunk cable generally include:

High quality—MTP/MPO Patch cable/trunk cables are factory pre-terminated, tested and packaged along with the test reports. These reports serve as long-term documentation and quality control.

Decreasing cable volume—MTP/MPO Patch cable/trunk cables have very small diameters, which decrease the cable volume and improve the air-conditioning conditions in data centers.

Time saving—With the special plug and play design, MTP/MPO Patch cable/trunk cables can be incorporated and immediately plugged in. It greatly helps reduce the installation time.

All of OMC’s MTP Connectors are from USconec. MTP Patch cable/trunk cable is a kind of high density cable assemblies which is generally use in three areas.

1, The Data Center application with high dense degree environment

2, The optical fiber to the building

3, The internal connector application in fiber equipment.

The 12F MTP-MTP Patch cable / trunk cable is designed for 40G QSFP+ SR4, 40G QSFP+ CSR4 and 100G QSFP28 SR4 optics direct connections and high-density data center.

MTP products’ Standard:

Meets IEC Standard IEC-61754-7; JIS C5982; TIA-604-5(FOCIS5); Telcordia GR-1435-CORE compliant

Structured cabling per TIA-568-C

MTP Patch cable/trunk cable ’s Specification:

MTP products’ Details& Standard:

• Meets IEC Standard IEC-61754-7; IEC61755, Telcordia GR-1435-CORE, JIS C5982; TIA-604-5(FOCIS5) compliant
• Structured cabling per TIA-568-C
• 10G Fiber Channel Compliant
• 40G and 100G IEEE 802.3

Cable Parameters-12F Microfiber cable

MTP End-Face 3D Interference Index

Length Tolerance

Pre-terminated MTP Technology-Polarity

Features:

• Low insertion loss, high return loss
• MT based Multi-fiber Connector, 4,8,12 and 24 fiber connector terminations and assemblies
• Economical solution for mass-termination of fiber
• Designed for low loss and standard loss SM and MM applications
• Ruggedized round cable, oval cable and bare ribbon options available
• Color coded housings available to differentiate fiber type, polish type and/or connector grade
• Good in repeatability and exchangeability

AVAILABILITY:

• Ribbon and bundle cable available;
• Patch cord, pigtail cable assemblies available.
• MT-MT ribbon patch cord is available.
• MTP Loopback available

Highlights : Push-pull tab MTP connector is easy to install and remove with one hand

1. High-performance polishing machine, and complemented by precision plates holders designed for MT ferrules.
2. 3D interferometer provides verification of MTP/MPO polishing process, and making all parameters of the polished MT ferrule complies and exceeds industry standards.
3. The flexibility of the tester provides the complete spectrum of optical testing required for complex and high fiber count cable assemblies.
