Outdoor Armored 2F 4F 8F 12F GYXTW Fiber Optic Patch Cables Single Mode
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Type | 2-12F Outdoor Fiber Optic Cable GYXTW | Number Of Fiber | 2 4 6 8 12 Cores |
|---|---|---|---|
| Fiber Type | SM G652D G657 | Jacket Material | PE/LSZH/PVC |
| Armoured | Steel Tape | Cable Diameter | 8.0mm |
| Application | Long-distance Communications | Strength Member | Two Parallel Steel Wires |
| Operating Temperature | -40℃ To + 70℃ | ||
| High Light | GYXTW Fiber Optic Patch Cables,G652D Fiber Optic Patch Cables,4F 12 Core Fiber Optic Cable |
||
Product Description

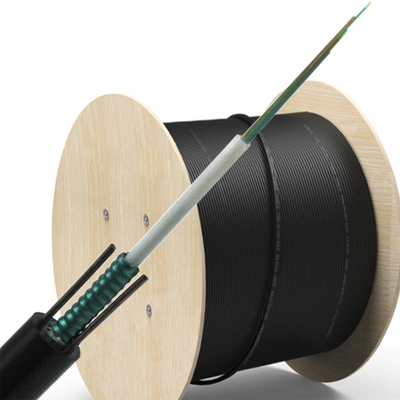

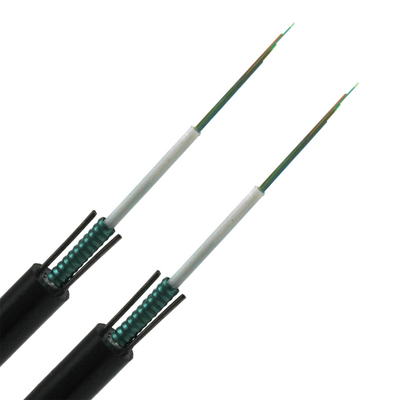

Armored 2F 4F 8F 12F GYXTW Fiber Optic Patch Cables Single Mode
Outdoor Aerial Cable Duct FTTH Unitube Outdoor Armored Single mode GYXTW 4F 6F 8F 12 Cores Fiber Optic Cable

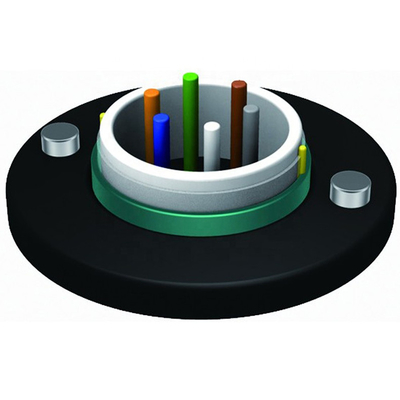

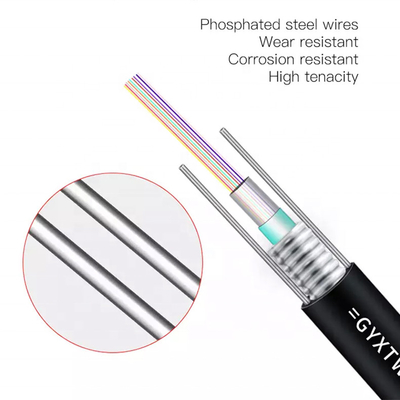

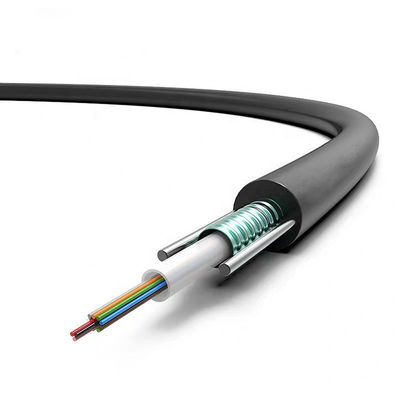

The fibers, 250μm, are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. The tube is wrapped with a layer of PSP longitudinally. Between the PSP and the loose tube water-blocking material is applied to keep the cable compact and watertight. Two parallel steel wires are placed at the two sides of the steel tape. The cable is completed with a polyethylene (PE) sheath.
Technical Parameters
| Optical cable model | Fiber number | Cable Diameter | cable weight kg/km | Maximum Tension(N) | Maximum Crush Resistance(N/per100cm) | Minimum Bending Radius |
| GYXTW-2~12 | 2~12 | 8.0 mm | 75 | 600/1500 | 1000/3000 | 10D/20D |
Optical Characteristics
| G.652 | G.655 | 50/125μm | 62.5/125μm | ||
| Attenuation | @850nm | ≤3.0 dB/km | ≤3.0 dB/km | ||
| @1300nm | ≤1.0 dB/km | ≤1.0 dB/km | |||
| @1310nm | ≤0.36 dB/km | ≤0.40 B/km | |||
| @1550nm | ≤0.22 dB/km | ≤ | |||
|
Bandwidth (Class A) |
@850nm | ≥500 MHz·km | ≥200 MHz·km | ||
| @1300nm | ≥1000 MHz·km | ≥600 MHz·km | |||
| Numerical Aperture | 0.200±0.015NA | 0.275±0.015NA | |||
| Cable Cut-off Wavelength λcc | ≤1260nm | ≤1480nm | |||
Characteristics
Good mechanical and temperature performance
High strength loose tube that is hydrolysis resistant
Special tube filling compound ensure a critical protection of fiber
Crush resistance and flexibility
PSP enhancing moisture-proof
Small diameter, light weight and friendly installation
Company Information:
OMC industry co., limited, which was founded by an expert team, has been exporting FTTX passive products since 2007. We focus on providing innovative and integrated FTTX solutions for a variety of applications/Networks. Our capabilities include product/solution design, development, enhancement and integration. Our products are among the highest performing in the industry and truly represent the best values in the industry. We also offer training, pre and post-sales support. We help you select the right products for your Optical network's needs
FAQ:
1. Are you the real factory?
Yes, we are the real factory more than 10 years
2. What is your main products?
Outdoor fiber optic cables; indoor fiber optic cables;FTTH Drop cables;
Indoor armored patch cords fiber cable; Optical patch cords SC/LC/FC/ST; MTP/MPO optical patch cord.
3. Do you have certificate for raw material?
We build long-term relationship cooperation with qualified ISO9001, ROHS raw material suppliers.
4. What is your delivery time?
Within 24 hours for normal kinds of fiber optic cable;
3~5 days for fiber optic patch cords with 10000 connectors.
5. MOQ: what is your minimum quantity?
MOQ for fiber optic cables: 1KM
There is no MOQ required for fiber optic patch cords,as there’s stock for normal kinds.
6. Do you have distributor in other country or domestic?
Until now, we sell our products to customers directly. And factory price could be offered.
7. Payment
For large orders: T/T, L/C
For small orders: T/T,Western Union and Paypal are acceptable.
