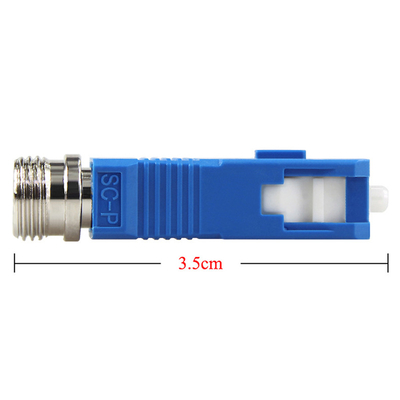

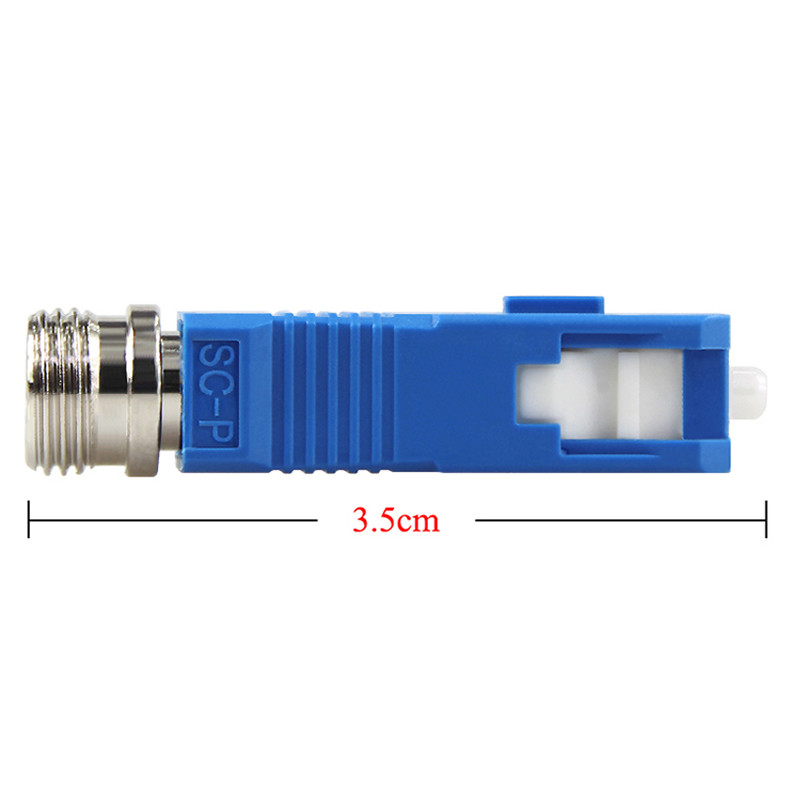

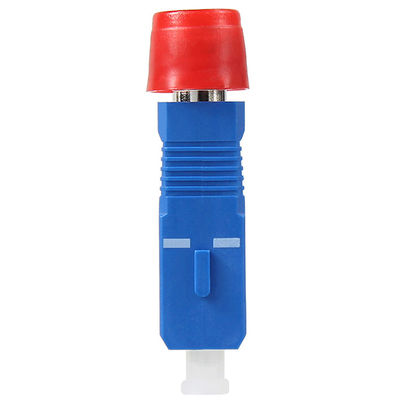

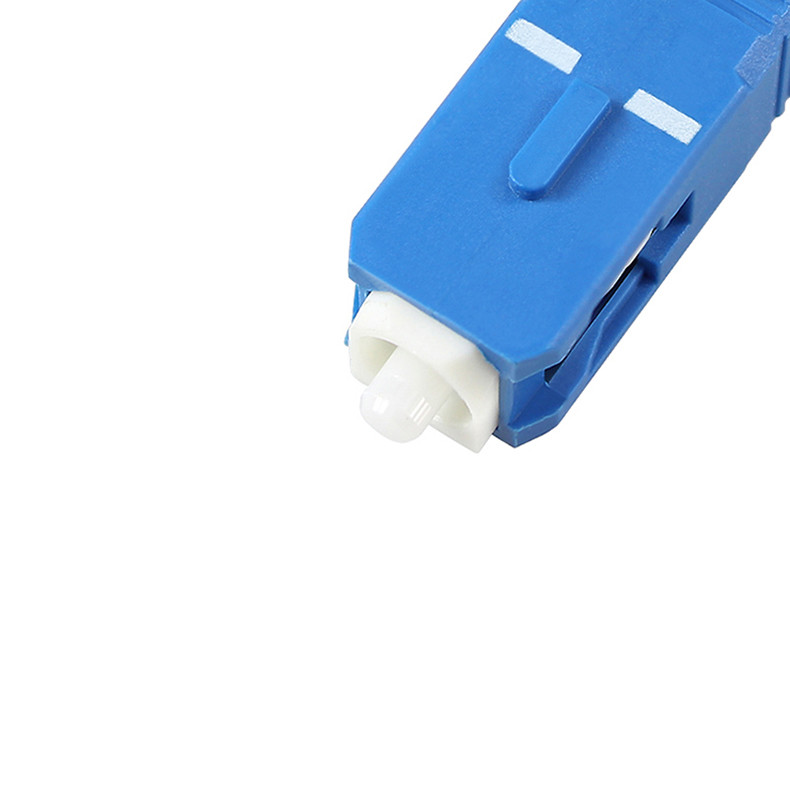

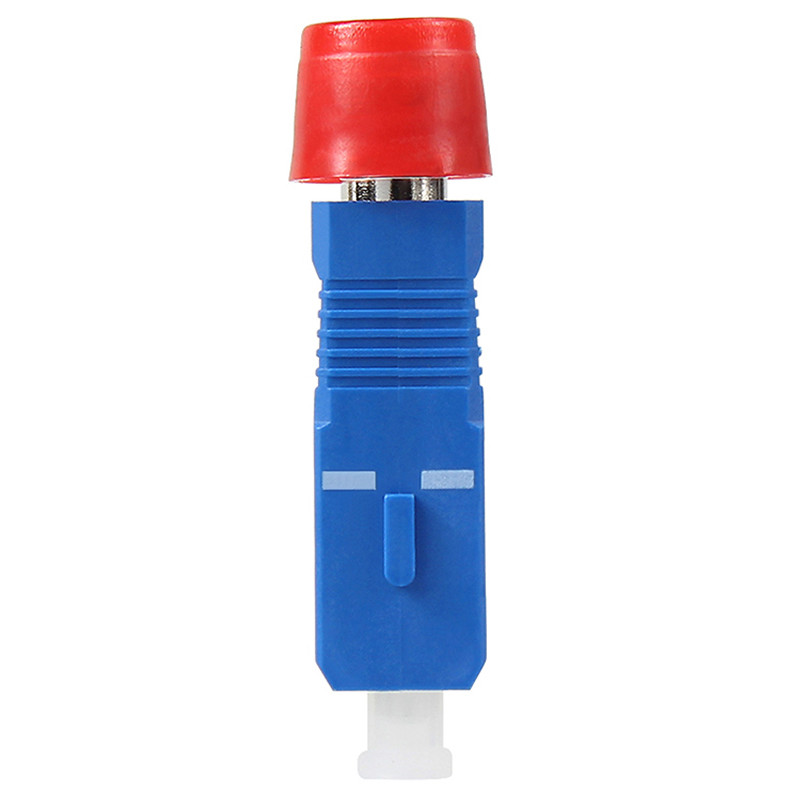

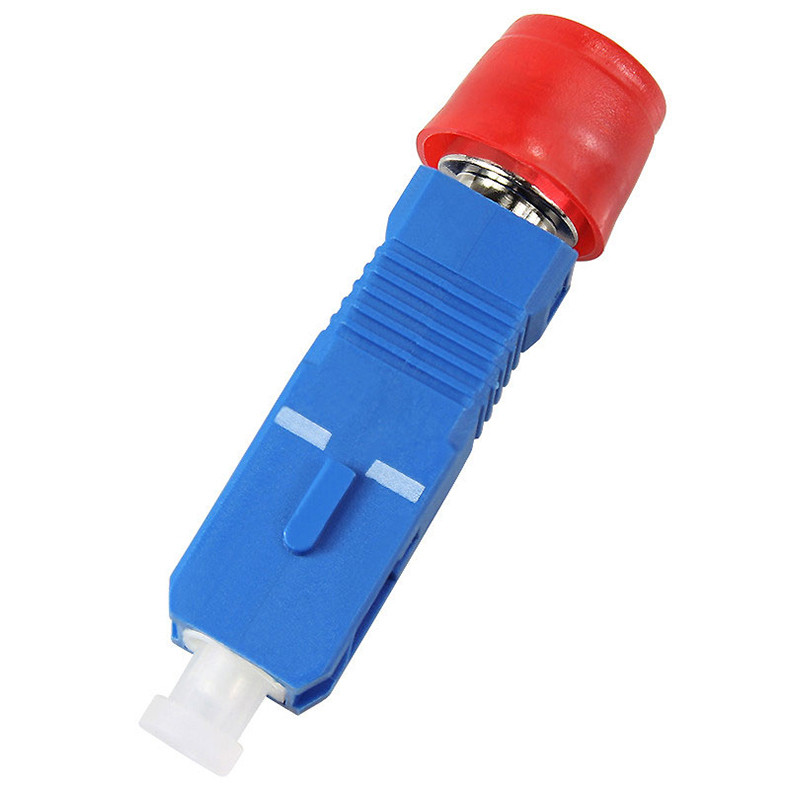

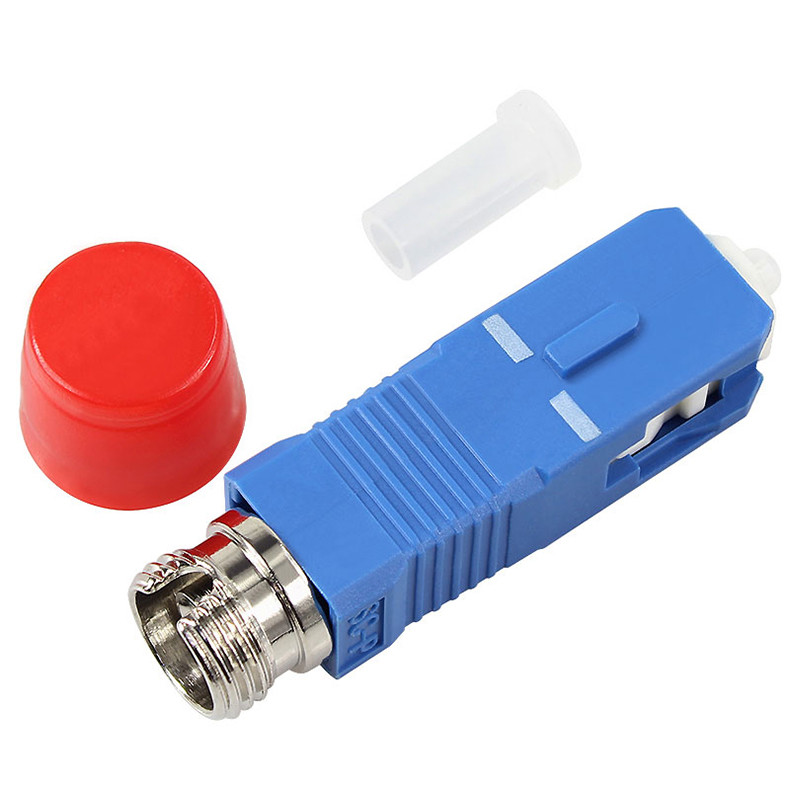

Simplex Coupler Single Mode Fiber Optic Adapter SC Male To FC Female

  • Simplex Coupler Single Mode Fiber Optic Adapter SC Male To FC Female
  • Simplex Coupler Single Mode Fiber Optic Adapter SC Male To FC Female
  • Simplex Coupler Single Mode Fiber Optic Adapter SC Male To FC Female
  • Simplex Coupler Single Mode Fiber Optic Adapter SC Male To FC Female
  • Simplex Coupler Single Mode Fiber Optic Adapter SC Male To FC Female
  • Simplex Coupler Single Mode Fiber Optic Adapter SC Male To FC Female
Place of Origin China
Brand Name OEM or OMC
Certification ROHS and ISO
Model Number SC male to FC female simplex coupler fiber optic adapter
Minimum Order Quantity 10 pcs
Price Negotiable
Packaging Details One piece in a plastic bag, several pieces in the carton of 54*39*35cm carton
Delivery Time 3 days after payment confirmed
Payment Terms L/C, T/T, Western Union,Paypal
Supply Ability 2000000 pcs per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name SC Male To FC Female Simplex Hybrid Adapter Connector 1 FC Female
Connector 2 SC Male Body Style Simplex
Fiber Mode Single Mode Insertion Loss ≤0.2dB
Durability 1000 Times Alignment Sleeve Material Ceramic
Storage Temp（℃） -40～+85
High Light

Single Mode Fiber Optic Adapter

,

0.2dB Fiber Optic Adapter

,

Single Mode fiber optic coupler
Leave a Message
Product Description

Simplex Coupler Single Mode Fiber Optic Adapter SC Male To FC Female



Fiber optic adapter SC male to FC female simplex coupler SC FC fiber optical adapter



FC Female to SC male conversion adapter adopt embedded optical fiber connector and optical fiber ferrule matching Sleeve joint technology. The products can hybrid a type of fiber optic connectors (male) into another type of optical fiber connector (male). It keeps the advantages of small size, light signal stable, easy to use characteristics, widely used in optical fiber equipment instrument testing and rescue project construction field.



This FC(Female) to SC(Male) fiber optic conversion adapter, Converting FC connector to SC Connector. Variable FC interface conversion SC interface. Provided a simple and reliable solution for connecting two different optic fiber transmission joints.



Features

TIA/EIA-604 FOCIS-10 compatible; exceeds TIA/EIA-568-B.3 requirements

Complies with IEC 61754-4, Flammability UL94 V-0 standard

Available in Flanged and Flangeless options

Precision connection with sleeve

Low insertion loss, High Return loss

Good interchangeability and reliability

Meet IEC and ROHS standards

High precision of mechanical dimensions Accuracy



Specifications



Test item (SM-9/125) UPC (SM-9/125) APC MM PC
Insertion Loss ≤0.3dB ≤0.3dB ≤0.3dB
Return Loss ≥50 dB ≥60 dB ≥35 dB
Durability (500 Mating) 0.2dB Max.
Withdrawal force(g/f) 2.0N ~ 5.9N (200gf ~ 600gf)
Storage Temp(℃) -40~+85




Material



Parts name Material Color
Housing body PBT Green
Sleeve High precision Ceramic sleeve Sleeve
Inside hook PBT/PPS Green
Dust Cover PBT Green




Application



Patch panels, ODF and other optical connections.

Optical networks demarcation and monitoring point



Available for Simplex of SM UPC, SM APC, MM OM1 62.5/125, MM OM2 50/125





Simplex Coupler Single Mode Fiber Optic Adapter SC Male To FC Female 0

Simplex Coupler Single Mode Fiber Optic Adapter SC Male To FC Female 1

Simplex Coupler Single Mode Fiber Optic Adapter SC Male To FC Female 2







Company Information:



OMC industry co., limited, which was founded by an expert team, has been exporting FTTX passive products since 2007. We focus on providing innovative and integrated FTTX solutions for a variety of applications/Networks. Our capabilities include product/solution design, development, enhancement and integration. Our products are among the highest performing in the industry and truly represent the best values in the industry. We also offer training, pre and post-sales support. We help you select the right products for your Optical network's needs.



Simplex Coupler Single Mode Fiber Optic Adapter SC Male To FC Female 3

Simplex Coupler Single Mode Fiber Optic Adapter SC Male To FC Female 4

Simplex Coupler Single Mode Fiber Optic Adapter SC Male To FC Female 5



Simplex Coupler Single Mode Fiber Optic Adapter SC Male To FC Female 6



FAQ:



1. Are you the real factory?

Yes,we are the real factory more than 10 years



2. What is your main products?

Outdoor fiber optic cables; indoor fiber optic cables;FTTH Drop cables;

Indoor armored patch cords fiber cable; Optical patch cords SC/LC/FC/ST; MTP/MPO optical patch cord.



3. Do you have certificate for raw material?

We build long-term relationship cooperation with qualified ISO9001, ROHS raw material suppliers.



4. What is your delivery time?

Within 24 hours for normal kinds of fiber optic cable;

3~5 days for fiber optic patch cords with 10000 connectors.



5. MOQ: what is your minimum quantity?

MOQ for fiber optic cables: 1KM

There is no MOQ required for fiber optic patch cords,as there’s stock for normal kinds.



6. Do you have distributor in other country or domestic?

Until now, we sell our products to customers directly. And factory price could be offered.



7. Payment

For large orders: T/T, L/C

For small orders: T/T,Western Union and Paypal are acceptable
