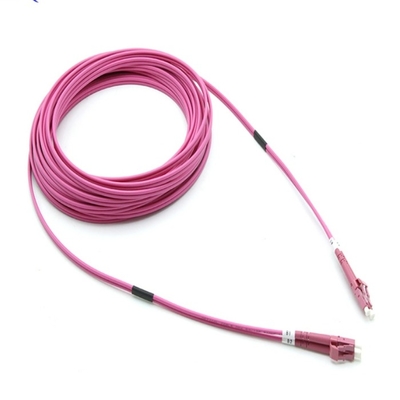

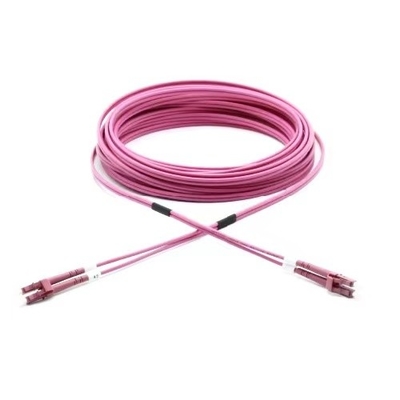

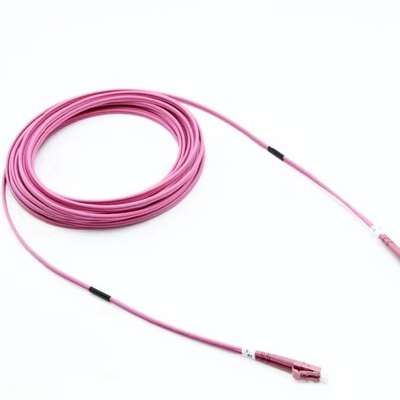

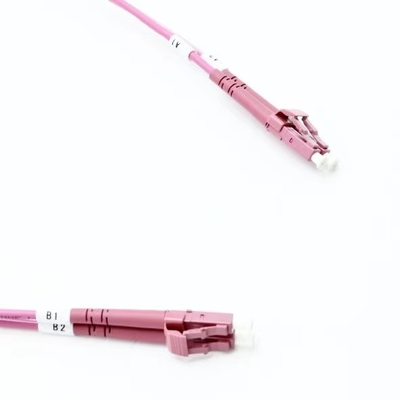

FTTH Product Multiple Mode OM4 Patch Cable LC To LC Low Insertion Loss

  • FTTH Product Multiple Mode OM4 Patch Cable LC To LC Low Insertion Loss
  • FTTH Product Multiple Mode OM4 Patch Cable LC To LC Low Insertion Loss
  • FTTH Product Multiple Mode OM4 Patch Cable LC To LC Low Insertion Loss
  • FTTH Product Multiple Mode OM4 Patch Cable LC To LC Low Insertion Loss
Place of Origin China
Brand Name OMC or OEM
Certification ROHS and ISO
Model Number 1×4
Minimum Order Quantity 50
Price Negotiation
Packaging Details Inner PE Bag and carton
Delivery Time 5 - 8 work days
Payment Terms L/C, T/T, Western Union
Supply Ability 100,000/fiber/km per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name OM4 Patch Cable Fiber Mode 50/125μm
Return Loss SM UPC ≥ 50dB(min) ,SM APC ≥ 60dB(min),MM PC≥ 35dB(min) Insertion Loss ≤0.3dB(IEC Grade C) ≤0.12dB(IEC Grade B)
Jacket Color Magenta Cable Type Zip-cord Duplex (Fig 8 Duplex)
Jacket Material LSZH/PVC/OFNR/OFNP Operating Temperature -40~75°C
High Light

Multiple Mode OM4 Patch Cable

,

FTTH OM4 Patch Cable

,

Multiple Mode om4 patch cord
Leave a Message
Product Description

FTTH Product Multiple Mode OM4 Patch Cable LC To LC Low Insertion Loss



High Quality and Cost-effective MM Zip-cord Duplex Fiber Patch Cord



Patch Cords are used to provide optical connection for fiber optic electronics. The use of the patch cord provides a quick and easy method for routing fiber patches in data centers, head-ends, cellular hubs and central offices. The patch cord can be used in interconnect or cross-connect path connecting the incoming fibers to the electronic equipment and providing patching within the fiber paths. Patch Cords include simplex, duplex and Multi-fibers assemblies.





OMC’s Patch cables are manufactured and tested in compliance with TIA 604 (FOCIS), IEC 61754 and YD/T industry standards. OM1, OM2, OM3, OM4, OM5 or OS2 fiber types to meet the demand of Gigabit Ethernet, 10 Gigabit

Ethernet and high speed Fiber Channel. Every termination through rigorous parameter test to ensure the highest in network performance.

OM4

Connector Standard



SC: TIA/EIA, FOCIS3, GR-326.NTT-SC IEC61754-4 and JIS C5973.

LC: TIA/EIA, FOCIS10, GR-326 EIA/TIA-604-10, IEC61754-20 and JIS C5973.

FC: EIA /TIA-604-04, FOCIS4, NTT-FC, GR-326. IEC61754-13 and JIS C5973

ST: TIA/EIA, FOCIS2, GR-326. IEC61754-2 and JIS C5973 Etc.

MU: TIA/EIA-604-3A, GR-326.NTT-MU, JIS and IEC.

MTRJ: TIA/EIA, FOCIS12, GR-326. IEC and JIS C5973.

DIN: IEC61754-3

E2000: IEC61754-15





Optical Specifications



Connector

SC,LC,FC,ST,E2000,MU,

MTRJ,LX.5,DIN,D4

 Jacket OD(mm)

1.2x2.5,1.6x3.3,1.73.5,1.8x3.7

2.0x4.1,2.44.9,2.6x5.3,2.8x5.7
Fiber Mode 9/125μm, 50/125μm, 62.5/125μm, Jacket Color

SM:Yellow/Blue/White;

OM1&OM2: Orange; OM3:Aqua;

OM4:Aqua/Violet/ Magenta
Polish PC,UPC,APC Wavelength

SM:1310/1550nm

MM:850nm
Cable Type Zip-cord Duplex (Fig 8 Duplex) Jacket Material LSZH/PVC/OFNR/OFNP
Insertion loss ≤0.3dB(IEC Grade C) Insertion loss ≤0.12dB(IEC Grade B)
Return loss

SM UPC ≥ 50dB(min)

SM APC ≥ 60dB(min)

MM P ≥ 35dB(min)

 Interchangeability &Vibration ≤0.2dB
Operating temperature -40~75°C Storage temperature -45~85°C





Geometric Specification (For special request)



Items Connector PC End-face APC End-face
Radius of Curvature SC/FC/ST 10~25 mm 5~12 mm
LC/MU 7~25 mm 5~15 mm
Apex Offset ≤50 um
Fiber Spherical Height +/- 100 nm
Angular Offset ------ 8°± 0.5°





End-face Quality (MM)



Zone Range (μm) Scratches Defects Reference
A: Core 0 to 65 None None IEC 61300-3-35:2015
B: Cladding 65 to 115 None None
C: Adhesive 115 to 135 None None
D: Contact 135 to 250 None None
E: Rest of ferrule None None





Length Tolerance

Overall Length(L)(m) length of tolerance(cm)
0<L<1 +5/-0
1<L<10 +10/-0
10<L<40 +15/-0
40<L +0.5% x L/-0



Application:



This 50/125 OM4 multimode fiber optic cable is ideal for connecting 40G BIDI SR, 10G SR, QSFP+, SFP+ transceivers etc. for 10G/40G/100G Ethernet connections and is the preferred fiber specification for 40G/100G applications.

OM4
