Pre Terminated Multimode Fiber Optical Pigtail LC UPC OM3 50/125μM

  • Pre Terminated Multimode Fiber Optical Pigtail LC UPC OM3 50/125μM
  • Pre Terminated Multimode Fiber Optical Pigtail LC UPC OM3 50/125μM
  • Pre Terminated Multimode Fiber Optical Pigtail LC UPC OM3 50/125μM
Place of Origin China
Brand Name OMC or OEM
Certification ROHS and ISO
Model Number LC
Minimum Order Quantity 20
Price Negotiation
Packaging Details Inner PE Bag and carton
Delivery Time 5 - 8 work days
Payment Terms L/C, T/T, Western Union
Supply Ability 10000/pcs/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Pre-terminated 900um Cable Fiber Pigtail Connector LC
Jacket OD(mm) 8.3mm Fiber Mode 50/125μm
Insertion Loss ≤0.12dB(IEC Grade B) Return Loss SM UPC ≥ 50dB(min) SM APC ≥ 60dB(min) MM P ≥ 35dB(min)
Return Loss(LC/SC/FC/ST) APC≥60dB; UPC≥50dB
High Light

Multimode Fiber Optical Pigtail

,

OM3 Fiber Optical Pigtail

,

OM3 multimode pigtail
Leave a Message
Product Description

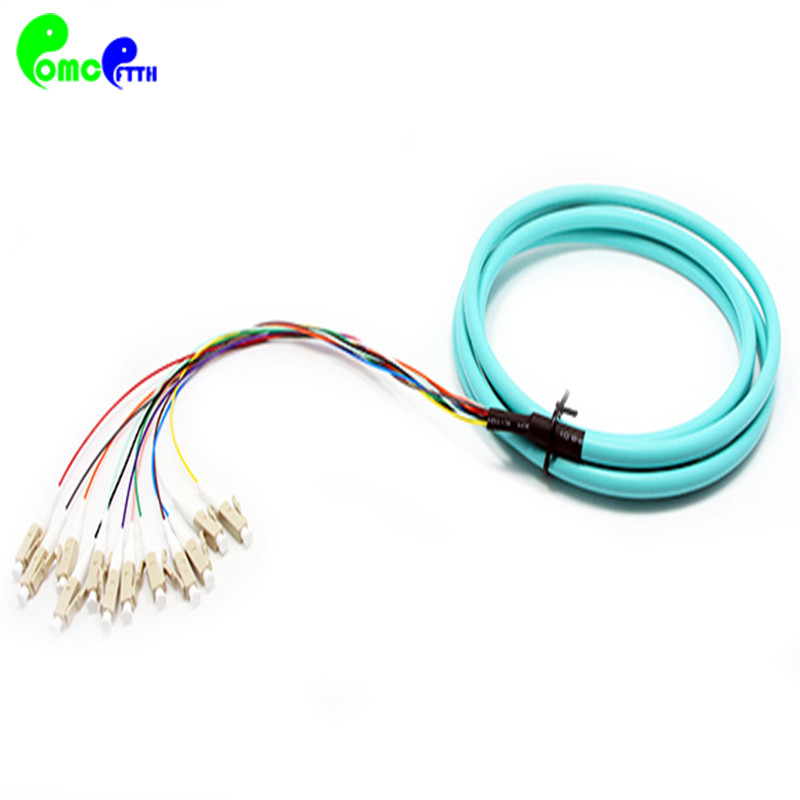

Pre Terminated Multimode Fiber Optical Pigtail LC UPC OM3 50/125μM





4-144F Pre-terminated 900um cable fiber pigtail is a multi-fibers pigtail. The unit fiber is 0.6 or 0.9 tight buffer cable. Meets Telcordia GR-326 Core and ROHS requirements.

OMC’s 4-144F Pre-terminated 900um cable fiber pigtail are available in both single and multimode versions with either APC or UPC polish types. Our fiber pigtails come with a partial outer jacket protecting the Tight/Loose buffers from damage. If installed in a high density application, the outer jacket can be easily removed to accommodate a tighter bend radius for the pigtails. Perfect for fiber optic installations within a building or between two buildings.

All of OMC pigtails are factory inspected and tested, with available interferometer data upon request.

LC pigtail

Connector’s Standard:

SC: TIA/EIA, FOCIS3, GR-326.NTT-SC IEC61754-4 and JIS C5973.

LC: TIA/EIA, FOCIS10, GR-326 EIA/TIA-604-10, IEC61754-20 and JIS C5973.

FC: EIA /TIA-604-04, FOCIS4, NTT-FC, GR-326. IEC61754-13 and JIS C5973

ST: TIA/EIA, FOCIS2, GR-326. IEC61754-2 and JIS C5973 Etc.

MU: TIA/EIA-604-3A, GR-326.NTT-MU, JIS and IEC.

DIN: IEC61754-3

E2000: IEC61754-15



Optical Specification

Connector SC,LC,FC,ST,E2000,MU,LX.5,DIN,D4 Jacket OD(mm)

4cores:5.0mm
6cores:5.3mm
8cores:5.6mm
12cores:6.3mm
24cores:8.3mm
48cores:10.5mm

Fiber Mode 9/125μm, 50/125μm, 62.5/125μm, Jacket Color

SM:Yellow/Blue/White;

OM1&OM2: Orange; OM3:Aqua;

OM4:Aqua/Violet/ Magenta
Polish PC,UPC,APC Wavelength

SM:1310/1550nm

MM:850nm
Cable Type Multi-fibers Breakout 0.9mm unit cable Jacket Material LSZH/PVC/OFNR/OFNP
Insertion loss ≤0.3dB(IEC Grade C) Insertion loss ≤0.12dB(IEC Grade B)
Return loss

SM UPC ≥ 50dB(min)

SM APC ≥ 60dB(min)

MM P ≥ 35dB(min)

 Interchangeability &Vibration ≤0.2dB
Operating temperature -40~75°C Storage temperature -45~85°C



Geometric Specification (only for 3D interferometer tested)

Items Connector PC End-face APC End-face
Radius of Curvature SC/FC/ST 10~25 mm 5~12 mm
LC/MU 7~25 mm 5~15 mm
Apex Offset ≤50 um
Fiber Spherical Height +/- 100 nm
Angular Offset ------

8°± 0.5°


 End-face Quality (SM)

Zone Range (μm) Scratches Defects Reference
A: Core 0 to 25 None None IEC 61300-3-35:2015
B: Cladding 25 to 115 None None
C: Adhesive 115 to 135 None None
D: Contact 135 to 250 None None
E: Rest of ferrule None None


 End-face Quality (MM)

Zone Range (μm) Scratches Defects Reference
A: Core 0 to 65 None None IEC 61300-3-35:2015
B: Cladding 65 to 115 None None
C: Adhesive 115 to 135 None None
D: Contact 135 to 250 None None
E: Rest of ferrule None None


 Length Tolerance

Overall Length(L)(m) length of tolerance(cm)
0<L<1 +5/-0
1<L<10 +10/-0
10<L<40 +15/-0
40<L +0.5% x L/-0



Application:



1. Optical fiber communication systems engineering

2. Fiber optic data communication network

3. Connected with trunk cables on one end, equipment port on the other end.

4. Connected with transfer modules on one end, equipment port on the other end.



Features

1. 100% pre-terminated and tested in factory to ensure transfer performance.
2. Rapid configuration and networking, reduce installation time.
3. Supports 40G and 100G network applications.
4. Low insertion loss and added loss.
5. Supports up to 12F, 24F, 48F, 72F, 96F, 144F, customized products are available.
6. High back loss, small volume, light weight.
7. End-face geometry and quality superior than IEC and Telcordia standards.
8. LSZH, OFNP, OFNR cable jacket.
9. Mechanical performance: IEC 61754-20 standard.
10. RoHS and REACH materials compliant.
