FTTHIndoor Drop Cable Butterfly Shaped 2F G652D G657A LSZH
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | 2F Indoor Fiber Drop Cable | Strength Member | 0.45-0.52mm FRP/KFRP/ Steel Wire |
|---|---|---|---|
| Tensile Strength | 200/100N | Crush Resistance | 1000/500(N/100mm) |
| Operating Temperature | -40°C ~+70°C | Cable Diameter | 2.0*3.0mm |
| Cable Weight | 7KG | Material | LSZH |
| High Light | LSZH FTTH Indoor Drop Cable,Butterfly Shaped FTTH Indoor Drop Cable,Butterfly Shaped Fiber Optic Drop Cable |
||
Product Description
Indoor Drop Cable Butterfly-Shaped Fibra Optica 2F G652D G657A Fibra Optica E-Glass Yarn LSZH Fiber Optic Drop Cable

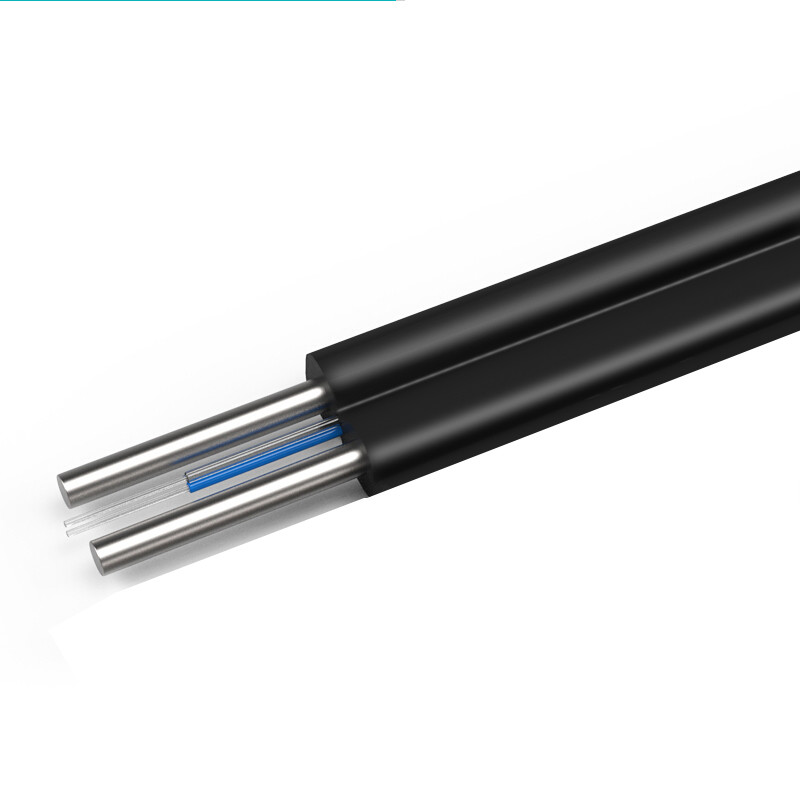

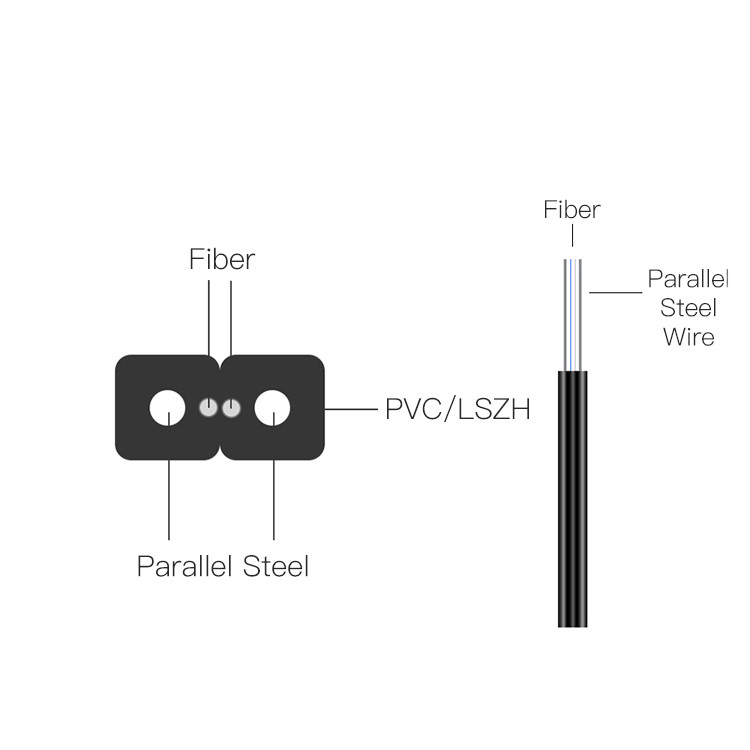

FTTH Indoor Drop Cable uses butterfly flat structure, whose optical fiber unit is positioned in the center. Two parallel Fiber Reinforced Plastic (FRP) strength members are placed at the two sides. Then, the cable is completed with LSZH sheath. FTTH indoor cable has a much greater bandwidth to carry data and less susceptible to interference than common indoor fiber cables. With small diameter, water-resistant, soft and bendable characteristics, it's easy to deploy and maintenance. In addition, the non-metallic strength member can provide lightning protection and anti-electromagnetic interference. FTTH cables are ideal for indoor cabling, end users directly cabling, and access network.
Feature
Good waterproof performance
Special low-bend-sensitivity fiber provides high bandwidth and excellent communication transmission property
Two parallel FRP strength members ensure good performance of crush resistance to protect the fiber
Simple structure, light weight and high practicability
Fibers count is 1-12 cores, can be other fiber cores upon request.
Novel flute design, easily strip and splice, simplify the installation and maintenance
Low smoke, zero halogen and flame retardant sheath
Technical Data
| Fiber Count | 1F/2F |
| Strength member | FRP/KFRP/ Steel wire |
| 0.45-0.52mm | |
| Cable diameter(mm) Approx. | 2.0*3.0(±0.1) |
| Cable weight(kg/km) Approx | 7/10 |
| Tensile Strength Short/ Long Term(N) |
200/100 for steel wire strength member 80/40 for KFRP wire strength member |
| Crush resistance short/long term (N/100mm) | 1000/500 |
| Operating temperature range(°C) | -40°C ~+70°C |
Main Mechanical and Environmental Performances
| Items | Test Standard | Specified Value | Requirements |
| Tension | IEC 60794-1-2-E1 | See Technical data |
Additional attenuation: ≤0.4dB after test |
| Crush | IEC 60794-1-2-E3 | See Technical data |
Additional attenuation: ≤0.4dB after test |
| Impact | IEC 60794-1-2-E4 |
R=300mm, 10Nm, one in 3 different places |
Additional attenuation: ≤0.4dB after test |
| Repeated Bending | IEC 60794-1-2-E6 | R=30H |
Additional attenuation: ≤0.4dB after test |
| Temperature Cycling | IEC 60794-1-2-F1 | -40℃~+70℃ |
Attenuation change: ≤0.4dB/km after test |
Application
Access network
Local area network (LAN)
Used end users directly cabling
Fiber optic communication system
FTTH (fiber to the home) indoor cabling and distribution
Ideal Using of Butterfly Flat Indoor FTTH Drop Cable
Butterfly Flat Indoor Drop Cable is widely used in fiber to the home (FTTH) network system, which can directly connect the communication line from the LAN to the end users. Butterfly flat drop cable uses special low-bend-sensitivity fiber to provide high bandwidth and excellent communication transmission, it's very suitable for indoor cabling, end users directly cabling, and access network.

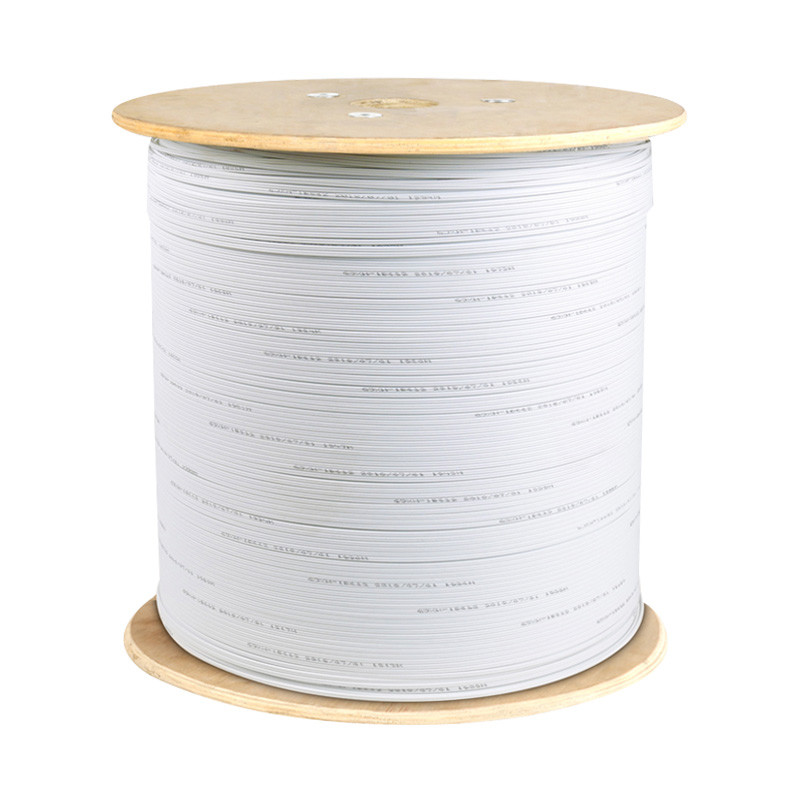

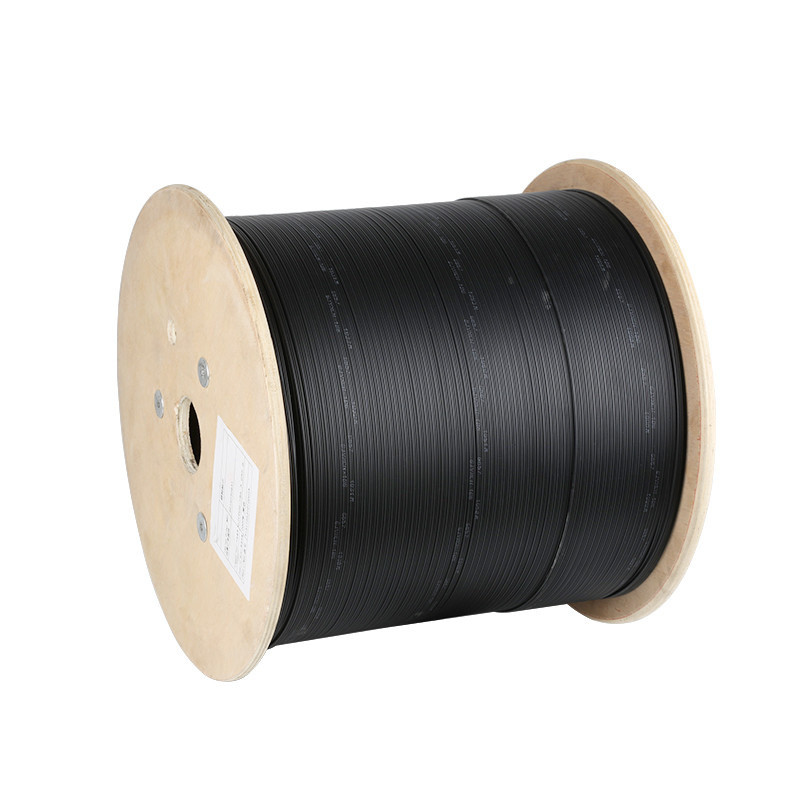

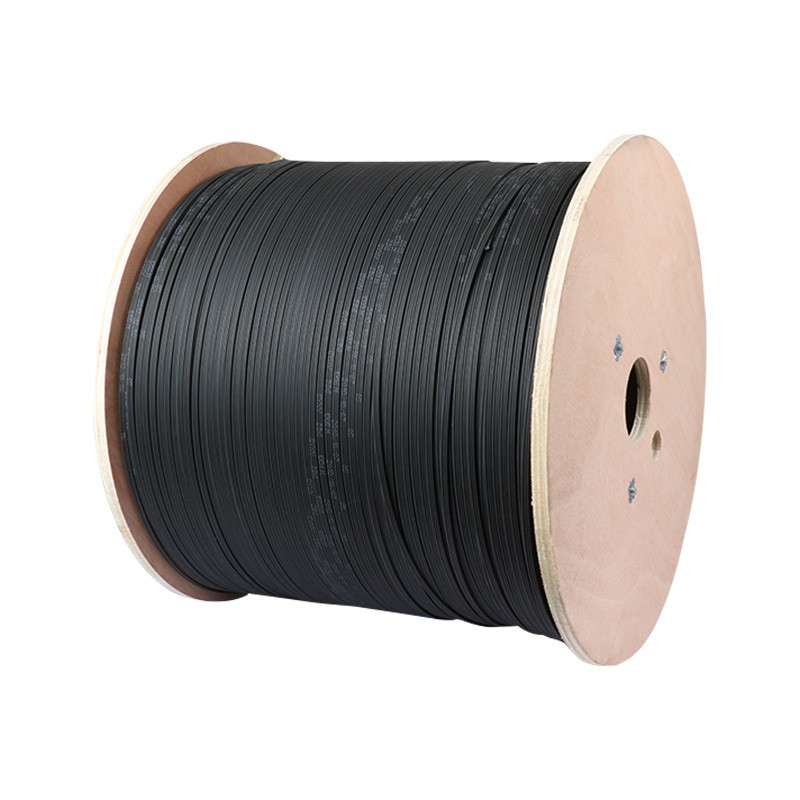

Delivery length
•2KM/reel, other length available on request
Package and shipping mark
Printing at out jacket of optical cable
Black color printing words at each meter distance, standard printing content as following, also can match the customer require for the printing content
1. Meter mark
2. Style of optical cable and fiber account
3. Manufacturer name
4. Manufacture date
Our Services
1, Free samples--- we can supply free products for testing .
2, Brand---OEM service acceptable
3, Payment terms---Nice payment. Like T/T, Western Union, Paypal etc.
4, Quality Level---High quality as per your requirements.
5, Competitive price---The manufacturer having our own factory has the advantage.
6, Delivery Time--- Usually 3 days. Less than a week.
8, Optical Network Project Consultant---Professional experts help you.
9, New Products development for customer---We can produce it for you with pattern.
10, logistic solution--- Cost-effective ways can be chosen for you.
