Fiber Optic Adapter LC Quad Single Mode SC Footprint Coupler LC Midcoupler
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Products | Fiber Optic Adapter LC Quad Single Mode SC Footprint Coupler LC Midcoupler | Fiber Mode | Singlemode |
|---|---|---|---|
| Insertion Loss | ≤0.2dB | Return Loss | APC≥60db |
| Durability | 1000 Times | Operating/Storage Temperature | -40~85°C |
| Color | Green | ||
| High Light | LC Quad SC Footprint Adapter,LC Quad SC Footprint Type Adapter,LC Quad Fiber Optic Adapter |
||
Product Description

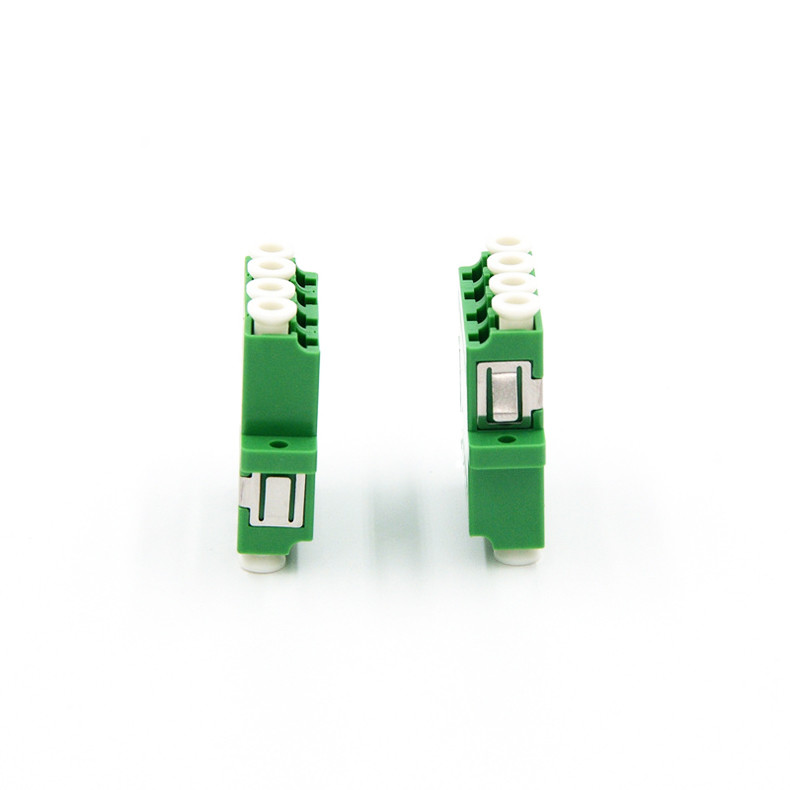

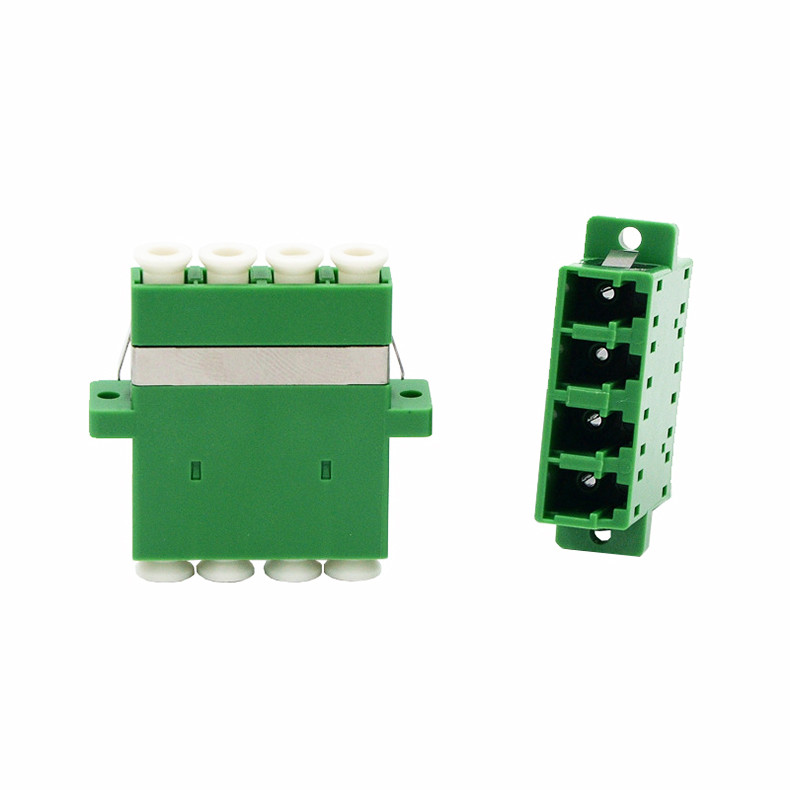

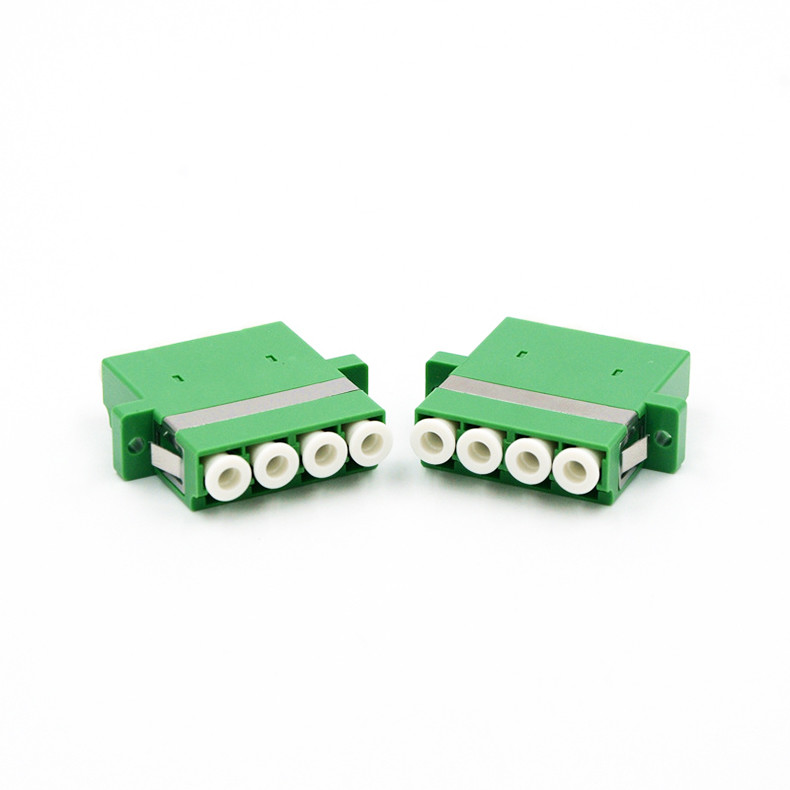

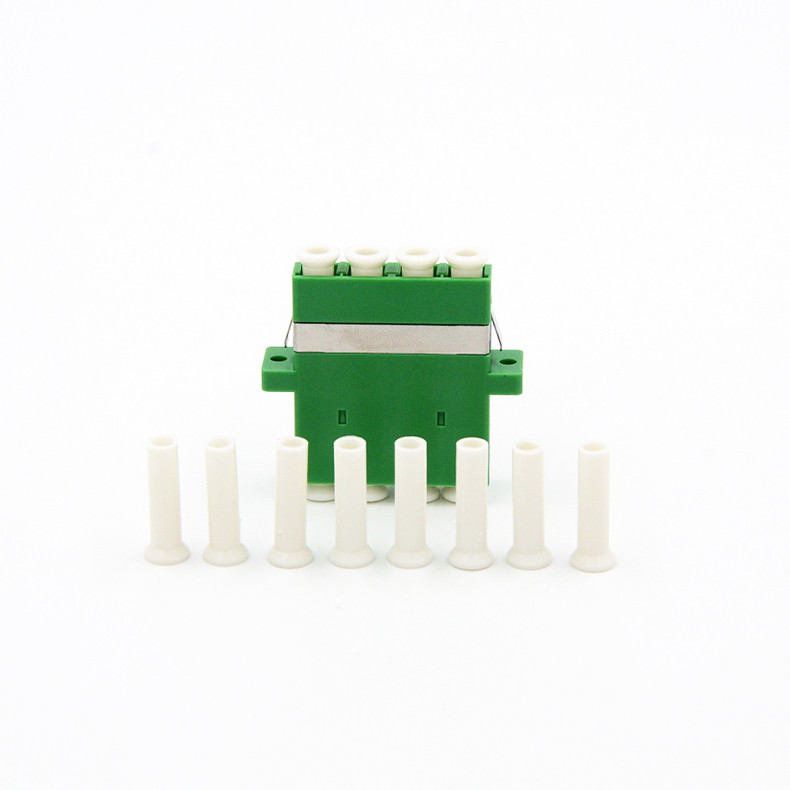

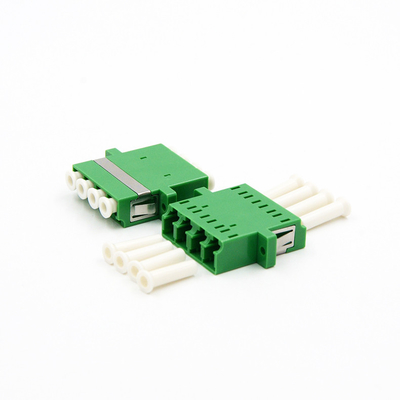

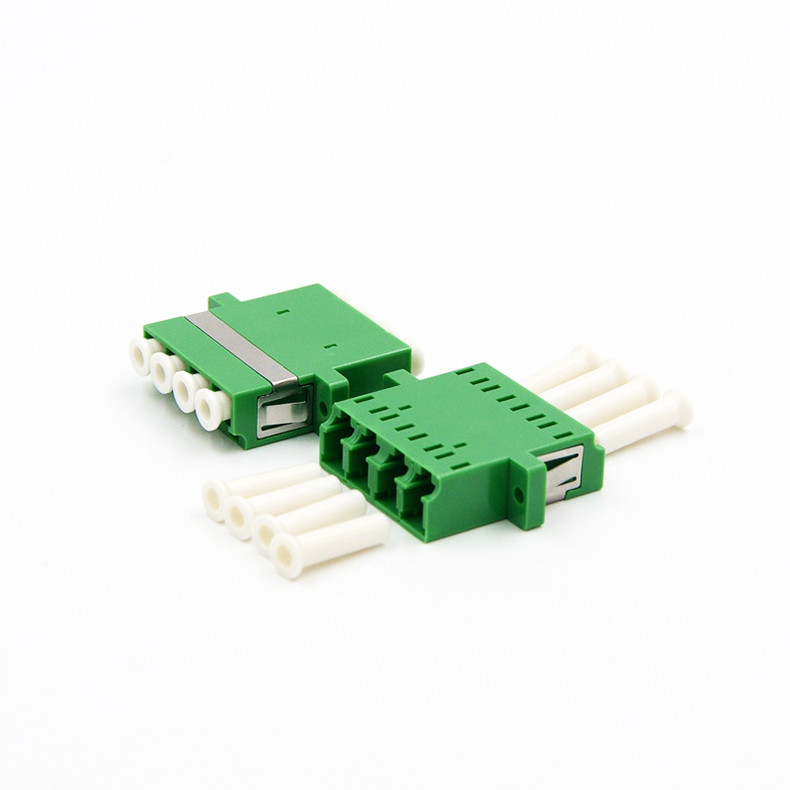

Fiber Optic Adapter LC Quad Single Mode SC Footprint Coupler LC Midcoupler
LC Quad SC footprint type Adapter are developed to couple and mate 8 LC connector plugs. Each LC adapter has receptacles on both ends to connect LC patch cords together. It has stainless steel mounting clips allowing it to be easily snapped into rectangular cut outs for duplex SC mount.
Our range of high-quality LC adapters have high precision alignment sleeves for reliability and improved reconnect ability. For single mode and multimode applications, a ceramic sleeve is supplied. The housing is available in different colors with options for flange or flangeless body, metal clips or inbuilt clips.
OMC Adapters design, material and manufacturing process assure long life and high repeatability of optical performances even for different brand connectors mating.
Features:
TIA/EIA-604 FOCIS-10 compatible; exceeds TIA/EIA-568-B.3 requirements
Complies with IEC 61754-4, Flammability UL94 V-0 standard
Available in Flanged and Flangeless options
Precision connection with sleeve
Low insertion loss, High Return loss
Good interchangeability and reliability
Meet IEC and ROHS standards
High precision of mechanical dimensions Accuracy
Specification
Material
| Parts name | Material | Color |
| Housing body | PC/PEI | Blue, Green, Beige, Aqua, Magenta or Customized |
| Sleeve | High precision Ceramic sleeve | White |
| Inside hook | PBT/PEI | Blue, Green, Beige, Aqua, Magenta or Customized |
| Metal Plate | Stainless steel | - |
| Dust Cover | ABS | White |
Specifications
| Test item | (SM-9/125) UPC | (SM-9/125) APC | MM PC |
| Insertion Loss | ≤0.2dB(Standard Grade); ≤0.1dB(Premium Grade); | ||
| Return Loss | ≥50 dB | ≥60 dB | ≥35 dB |
| Durability (1000 Mating) | 0.1dB Max. | ||
| Withdrawal force(g/f) | 2.0N ~ 5.9N (200gf ~ 600gf) | ||
| Storage Temp(℃) | -40～+85 | ||
Application:
Patch panels, ODF and other optical connections.
Optical networks demarcation and monitoring point
Available for Simplex of SM UPC, SM APC, MM OM1 62.5/125, MM OM2 50/125
Packaging & Shipping
Several piece in one plastic box,
Several boxes then packed in a 54*39*35 carton paper box
Other size carton is available too
Company Information:
OMC industry co., limited, which was founded by an expert team, has been exporting FTTX passive products since 2007. We focus on providing innovative and integrated FTTX solutions for a variety of applications/Networks. Our capabilities include product/solution design, development, enhancement and integration. Our products are among the highest performing in the industry and truly represent the best values in the industry. We also offer training, pre and post-sales support. We help you select the right products for your Optical network's needs.
FAQ:
1. Are you the real factory?
Yes,we are the real factory more than 10 years
2. What is your main products?
Outdoor fiber optic cables; indoor fiber optic cables;FTTH Drop cables;
Indoor armored patch cords fiber cable; Optical patch cords SC/LC/FC/ST; MTP/MPO optical patch cord.
3. Do you have certificate for raw material?
We build long-term relationship cooperation with qualified ISO9001, ROHS raw material suppliers.
4. What is your delivery time?
Within 24 hours for normal kinds of fiber optic cable;
3~5 days for fiber optic patch cords with 10000 connectors.
5. MOQ: what is your minimum quantity?
MOQ for fiber optic cables: 1KM
There is no MOQ required for fiber optic patch cords,as there’s stock for normal kinds.
6. Do you have distributor in other country or domestic?
Until now, we sell our products to customers directly. And factory price could be offered.
7. Payment
For large orders: T/T, L/C
For small orders: T/T,Western Union and Paypal are acceptable
