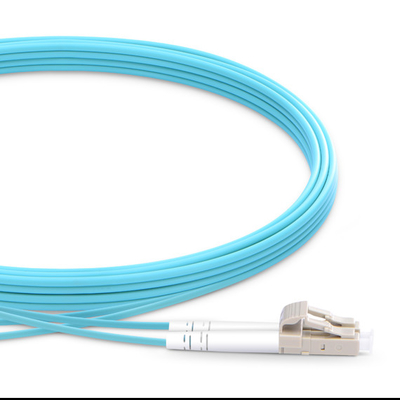

2 Cores Duplex Armored Patch Cord SM / MM LC To LC Fiber Optical Jumper Cable G652D G657A1
| Place of Origin | China |
|---|---|
| Brand Name | OMC or OEM |
| Certification | ROHS and ISO |
| Model Number | Common duplex armored cable patch cord |
| Minimum Order Quantity | 5pcs |
| Price | Negotiable |
| Packaging Details | 20 pieces in a plastic bag. Several bags in a larger plastic bag. hundreds of bags in a cartoon of 54*35*39cm. other size carton is available too. |
| Delivery Time | 3-5 days |
| Payment Terms | T/T, Western Union |
| Supply Ability | 1000000 pcs per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Products | Common Duplex Armored Cable Patch Cord | Fiber | G652D,G657A1 |
|---|---|---|---|
| Cable OD | 3.0x6.1mm | Cable Jacket | PVC (Riser/OFNR)，LSZH |
| Insertion Loss | ≤0.25dB Mean (Standard) | Operating Temperature | -40~75°C |
| High Light | Duplex Armored Patch Cord,LSZH Armored Patch Cord,LC Fiber Optical Jumper Cable |
||
Product Description
2 Cores Duplex Armored Patch Cord SM or MM LC to LC Fiber Optical Fiber Jumper Cable G652D,G657A1
Armored Patch cord is a patch cord which could be used as cooper patch cable. They adopted a cable with soft metal protection tube and standard connector. The apply place are in the floor corner. Those products could protect the fiber bite by mouse and ant. Although armored fiber optic cables are strong, they are actually as flexible as standard fiber optic patch cords; they can be bending randomly without being broken. The rugged armored cables allow optical fiber to be installed in the most hazardous areas, including environments with excessive dust, oil, gas, moisture, or even damage-causing rodents.
PRODUCTS SPECIFICATIONS:
| Connector | SC,LC,ST,FC,MU,E2000,MTRJ… | Polish | PC,UPC,APC |
| Fiber Mode | 9/125μm, 50/125μm, 62.5/125μm, | Jacket Color |
SM:Yellow/Blue/White; OM1&OM2: Grey/Orange; OM3:Aqua; OM4:Aqua/Violet/ Magenta |
| Cable Type | Duplex 2.0mm,3.0mm | Wavelength |
SM:1310/1550nm MM:850nm |
| Cable Type | Duplex | Jacket Material | LSZH/PVC/OFNR/OFNP |
| Insertion loss |
≤0.3dB(IEC Grade C) ≤0.12dB(IEC Grade B) |
Crush Resistance(N/100mm) |
Long term 3000; short term:5000 |
| Return loss |
SM UPC ≥ 50dB(min) SM APC ≥ 60dB(min) MM P ≥ 35dB(min) |
Interchangeability &Vibration | ≤0.2dB |
| Tensile Strength(N) |
Long term 100; short term:200 |
Operation&Storage temperature | -45~85°C |
Features:
High anti-tensility; High anti-pressure
High bent Resistance; Anti-bite from rodent animals
Flexible, convenient to connection and easy to deploy
Don’t worry about damage in project, Save space
Deploy easily and reduce cost of wiring, improve the inside
Situation of the ODF
USE as normal soft cable.
Application:
ODF,MODF,OCC
Fiber Cabling system, LAN,FTTH
Benefits of Armored Fiber Patch Cable
Common fiber optic cable is fragile, which needs to be protected, especially when in harsh applications where cables could be compromised by rodents, constant wear and tear or weather damage. Armored fiber patch cable retains all the features of standard fiber cable but is much stronger due to its extra layers of armor. With the protection of flexible and durable steel tube, armored fiber patch cable will ensure the excellent operation of your network.
Ideal for harsh installation conditions that require exceptional durability. It is used as interconnection or cross connection in data center. It is also used in ceiling, corridor and other harsh environment.
Company Information:
OMC industry co., limited, which was founded by an expert team, has been exporting FTTX passive products since 2007. We focus on providing innovative and integrated FTTX solutions for a variety of applications/Networks. Our capabilities include product/solution design, development, enhancement and integration. Our products are among the highest performing in the industry and truly represent the best values in the industry. We also offer training, pre and post-sales support. We help you select the right products for your Optical network's needs.
FAQ:
1. Are you the real factory?
Yes,we are the real factory more than 10 years
2. What is your main products?
Outdoor fiber optic cables; indoor fiber optic cables;FTTH Drop cables;
Indoor armored patch cords fiber cable; Optical patch cords SC/LC/FC/ST; MTP/MPO optical patch cord.
3. Do you have certificate for raw material?
We build long-term relationship cooperation with qualified ISO9001, ROHS raw material suppliers.
4. What is your delivery time?
Within 24 hours for normal kinds of fiber optic cable;
3~5 days for fiber optic patch cords with 10000 connectors.
5. MOQ: what is your minimum quantity?
MOQ for fiber optic cables: 1KM
There is no MOQ required for fiber optic patch cords,as there’s stock for normal kinds.
6. Do you have distributor in other country or domestic?
Until now, we sell our products to customers directly. And factory price could be offered.
7. Payment
For large orders: T/T, L/C
For small orders: T/T,Western Union and Paypal are acceptable
