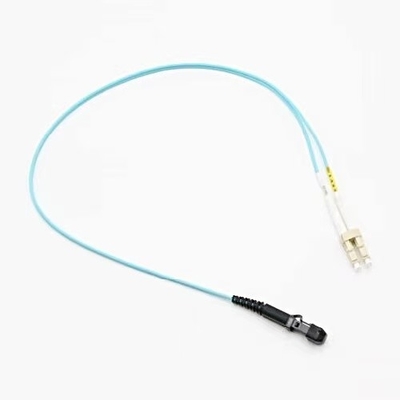

LC-MTRJ OM3 Zipcord Duplex Patch Cord 2.0 G651 LSZH Aqua Color
| Place of Origin | China |
|---|---|
| Brand Name | OMC or OEM |
| Certification | ROHS and ISO |
| Model Number | LC-MTRJ OM3 Zipcord Duplex patch cord |
| Minimum Order Quantity | 20 |
| Price | Negotiation |
| Packaging Details | Inner PE Bag and carton |
| Delivery Time | 5 - 8 work days |
| Payment Terms | L/C, T/T, Western Union |
| Supply Ability | 1000/pcs/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Products | LC-MTRJ OM3 Zipcord Duplex Patch Cord | Return Loss | ≤0.3dB Mean (Standard) |
|---|---|---|---|
| Insertion Loss | ≤0.3dB Mean (Standard) | Fiber Grade | G651 |
| Operating Temperature | -40~75°C | Polarity | A(Tx) To B(Rx) |
| High Light | LSZH Duplex patch cord,OM3 Zipcord Duplex patch cord,G651 Aqua patch cord |
||
Product Description
Description
The patch cord can be used in interconnect or cross-connect path connecting the incoming fibers to the electronic equipment and providing patching within the fiber paths.
The 50/125μm OM3 multimode bend insensitive fiber optic cable is less attenuation when bent or twisted compared with traditional optical fiber cables and this will make the installation and maintenance of the fiber optic cables more efficient. It can also save more space for your high density cabling in data centers, enterprise networks, telecom room, server farms, cloud storage networks, and any places fiber patch cables are needed.
This 50/125 OM3 multimode fiber optic cable is ideal for connecting 10G SR, 10G LRM, SFP+ transceivers etc. for 10G/40G/100G Ethernet connections and is the preferred fiber specification for 10G Ethernet connections.
Products Materials-Cable
|
Fiber : BIF Fiber OM3, 50/125 Cable OD: 2.0x4.1mm OD Cable Jacket : LSZH in Aqua color |

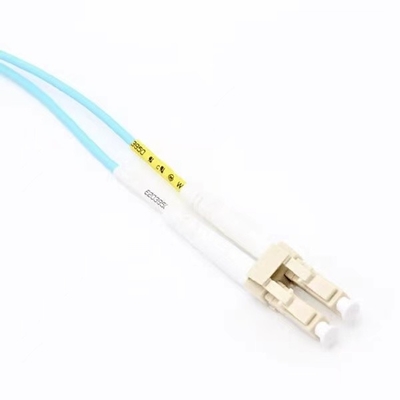

Connector Type-LC
|
High quality MM Ceramic ferrule, Good concentricity<4.0um |
LC: TIA/EIA, FOCIS10, GR-326 EIA/TIA-604-10, IEC61754-20 and JIS C5973.
|

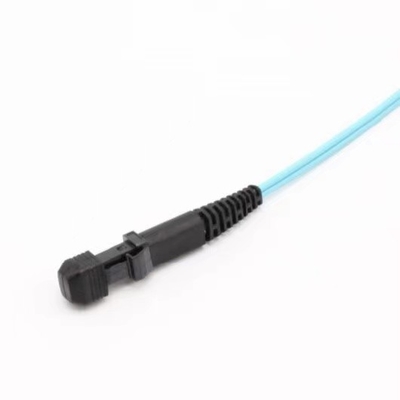

MT-RJ 2.0mm Standard boot |
MTRJ: TIA/EIA, FOCIS12, GR-326. IEC and JIS C5973.
Feature:
High precious connector guarantee Good Repeatability and Interchangeability
OEM Housing kits Color, OEM boot Colors
Customized Design for special demand
MM : Beige housing
OM3,:Aqua housing is available too
Optical Specifications-Patch cable
| Insertion loss | ≤0.3dB Mean (Standard) | Interchangeability | ≤0.2dB |
| Return loss | MM UPC≥35dB | Vibration | ≤0.2dB |
| Operating temperature | -40~75°C | Maximum pulling force |
70N(2.0mm cable) 100N(3.0mm cable) |
| Polarity | A(Tx) to B(Rx) | Fiber Grade | G651 |
Polishing Method
End-face Quality (MM)
| Zone | Range (μm) | Scratches | Defects | Reference |
| A: Core | 0 to 25 | None | None | IEC 61300-3-35:2015 |
| B: Cladding | 25 to 115 | None | None | |
| C: Adhesive | 115 to 135 | None | None | |
| D: Contact | 135 to 250 | None | None | |
| E: Rest of ferrule | None | None | ||
| Overall Length(L)(m) | length of tolerance(cm) |
| 0<L<1 | +5/-0 |
| 1<L<10 | +10/-0 |
| 10<L<40 | +15/-0 |
| 40<L | +0.5% x L/-0 |
Packaging
This easily taken and well-protected fiber patch cable package has been labelled and marked by OMC as default .Standard carton size : 34*22*15 cm; 44*34*24 cm ; 54*39*34 cm . Which carton to be used depends on goods Qty . Packing can be customized
