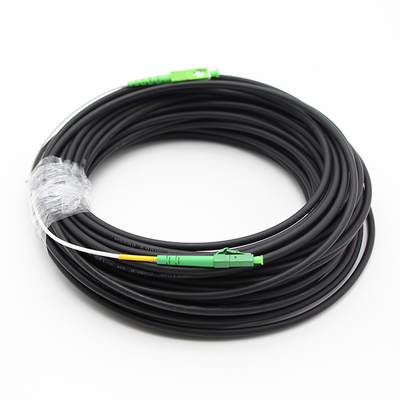

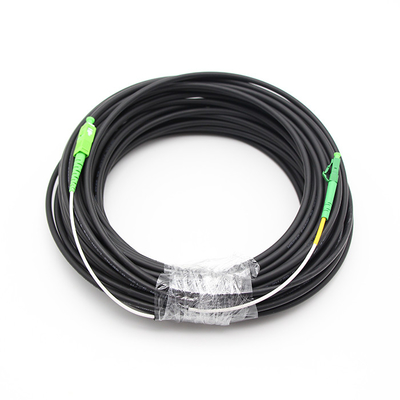

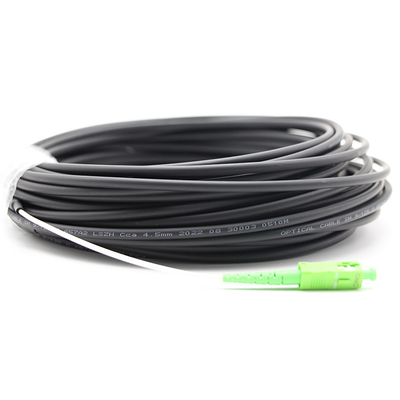

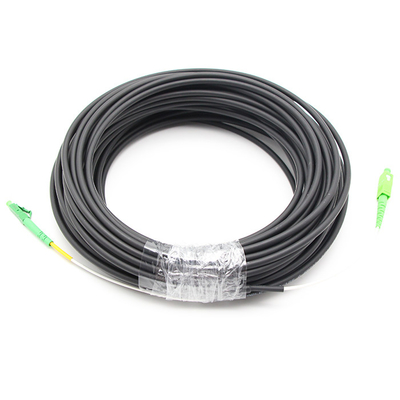

FTTH Outdoor Patch Cable SC APC - LC APC 4.5mm Double Jackets CCA LSZH Simplex Patch Cords
| Place of Origin | China |
|---|---|
| Brand Name | OMC or OEM |
| Certification | ROHS and ISO |
| Model Number | SC APC-LC APC simplex 4.5mm outdoor patch cable |
| Minimum Order Quantity | 10pcs |
| Price | Negotiable |
| Packaging Details | one peace in box, several pieces in cartoon |
| Delivery Time | 2-4 work days |
| Payment Terms | L/C, T/T, Western Union, Paypal |
| Supply Ability | 200000 per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Products | SC APC-LC APC Simplex 4.5mm Outdoor Patch Cable | Return Loss | ≥60 DB |
|---|---|---|---|
| Insertion Loss | ≤0.3 DB | Wavelength | 1310nm/1550nm |
| Polish Type | APC | Fiber Count | 1F |
| Fiber Grade | G657A2 | Cable Diameter | 4.5 Mm |
| Cable Jacket | CCA LSZH | Jacket Color | White/Black |
| High Light | FTTH Outdoor Patch Cable,4.5mm Outdoor Patch Cable,LSZH Jackets Simplex Patch Cords |
||
Product Description
FTTH Outdoor Patch Cable SC APC-LC APC 4.5mm Double Jackets CCA LSZH Simplex Patch Cords
The patch cord can be used in interconnect or cross-connect path connecting the incoming fibers to the electronic equipment and providing patching within the fiber paths.
OMC’s Patch cables are manufactured and tested in compliance with TIA 604 (FOCIS), IEC 61754 and YD/T industry standards. OM1, OM2, OM3, OM4, OM5 or OS2 fiber types to meet the demand of Gigabit Ethernet, 10 Gigabit
Ethernet and high speed Fiber Channel. Every termination through rigorous parameter test to ensure the hightest in network performance.
Connector’s Standard:
SC: TIA/EIA, FOCIS10, GR-326 EIA/TIA-604-10, IEC61754-20 and JIS C5973.
LC: TIA/EIA, FOCIS10, GR-326 EIA/TIA-604-10, IEC61754-20 and JIS C5973
Cable Specification
| Items | Description | ||
| Number of fiber | 1F | ||
| Fiber type | G657A2 | ||
| Loose Buffer | Material | PVC | |
| Diameter | 0.9±0.05mm | ||
| Strength member | Material | Aramid Yarn | |
| Inner sheath | Material | CCA LSZH | |
| Color | White | ||
| Diameter | 2.0±0.1mm | ||
| Outer sheath | Material | CCA LSZH | |
| Color | Black | ||
| Diameter | 4.5±0.45mm | ||
| Cable weight | 19kg/km | ||
| Installation Temperature range(℃) | -10+60 | ||
| Operation and transport temperature(℃) | -20+70 | ||
| Min Bending Radius(mm) | Long term | 10D | |
| Min Bending Radius(mm) | Short term | 20D | |
| Min allowable Tensile Strength(N) | Long term | 100 | |
| Min allowable Tensile Strength(N) | Short term | 350 | |
| Crush Load (N/100mm) | Long term | 100 | |
| Crush Load (N/100mm) | short term | 500 | |
Optical Specification
| Connector | SC-LC | Polish | APC-APC |
| Fiber Mode | 9/125μm, G657A2 | Jacket Color | White/Black |
| Cable OD | 4.5mm | Wavelength | SM:1310/1550nm |
| Cable Structure | Simplex | Jacket Material | CCA LSZH |
| Insertion loss | ≤0.3dB(IEC Grade C) | Crush Resistance(N/100mm) |
Long term 100; short term:500 |
| Return loss | SM APC ≥ 60dB(min) | Interchangeability &Vibration | ≤0.2dB |
| Tensile Strength(N) |
Long term 100; short term:350 |
Operation&Storage temperature | -45~85°C |
End-face Quality (SM)
| Zone | Range (μm) | Scratches | Defects | Reference |
| A: Core | 0 to 25 | None | None | IEC 61300-3-35:2015 |
| B: Cladding | 25 to 115 | None | None | |
| C: Adhesive | 115 to 135 | None | None | |
| D: Contact | 135 to 250 | None | None | |
| E: Rest of ferrule | None | None | ||
Length Tolerance
| Overall Length(L)(m) | length of tolerance(cm) |
| 0<L<1 | +5/-0 |
| 1<L<10 | +10/-0 |
| 10<L<40 | +15/-0 |
| 40<L | +0.5% x L/-0 |
Company Information:
OMC industry co., limited, which was founded by an expert team, has been exporting FTTX passive products since 2007. We focus on providing innovative and integrated FTTX solutions for a variety of applications/Networks. Our capabilities include product/solution design, development, enhancement and integration. Our products are among the highest performing in the industry and truly represent the best values in the industry. We also offer training, pre and post-sales support. We help you select the right products for your Optical network's needs.
FAQ:
1. Are you the real factory?
Yes,we are the real factory more than 10 years
2. What is your main products?
Outdoor fiber optic cables; indoor fiber optic cables;FTTH Drop cables;
Indoor armored patch cords fiber cable; Optical patch cords SC/LC/FC/ST; MTP/MPO optical patch cord.
3. Do you have certificate for raw material?
We build long-term relationship cooperation with qualified ISO9001, ROHS raw material suppliers.
4. What is your delivery time?
Within 24 hours for normal kinds of fiber optic cable;
3~5 days for fiber optic patch cords with 10000 connectors.
5. MOQ: what is your minimum quantity?
MOQ for fiber optic cables: 1KM
There is no MOQ required for fiber optic patch cords,as there’s stock for normal kinds.
6. Do you have distributor in other country or domestic?
Until now, we sell our products to customers directly. And factory price could be offered.
7. Payment
For large orders: T/T, L/C
For small orders: T/T,Western Union and Paypal are acceptable
