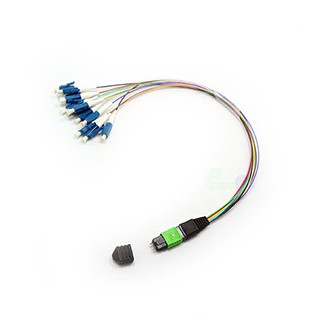

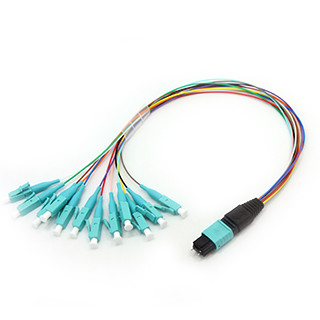

12 Core MPO LC Fanout 0.9mm Fiber Optic Patch Cable 33cm For MPO LC LGX Module Cassettes

  • 12 Core MPO LC Fanout 0.9mm Fiber Optic Patch Cable 33cm For MPO LC LGX Module Cassettes
  • 12 Core MPO LC Fanout 0.9mm Fiber Optic Patch Cable 33cm For MPO LC LGX Module Cassettes
  • 12 Core MPO LC Fanout 0.9mm Fiber Optic Patch Cable 33cm For MPO LC LGX Module Cassettes
Place of Origin China
Brand Name OMC or OEM
Certification ROHS and ISO
Model Number MPO male to LC fanout 900um patch cable 33cm
Minimum Order Quantity 20
Price Negotiation
Packaging Details Inner PE Bag and carton
Delivery Time 5 - 8 work days
Payment Terms L/C, T/T, Western Union
Supply Ability 1000/pcs/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Return Loss(MPO) ≥60dB（8degree Polishing） Insertion Loss (LC/SC/FC/ST) (IEC 61300-3-6) ≤0.3dB
Return Loss(LC/SC/FC/ST) APC≥60dB; UPC≥50dB Durability <0.3dBtypical Change, 200 Matings
Interchangeability ≤0.2dB Tensile Strength >70N
High Light

MPO LC fiber optic patch cable

,

0.9mm fiber optic patch cable

,

12 Core mpo fanout cable
Leave a Message
Product Description

Product discribtion:

12cores MPO Male - LC Fan-out 0.9mm 30cm patch cable are designed for MPO-LC LGX module cassettes are terminated with MPO and LC connector on each end.

12F MPO- LC/SC/FC/ST Fanout 0.9mm Cables are designed for 40G LR4 PSM, 40GBASE-SR4, 40G QSFP+ PLR4 and high-density data center. It is optimized for 10/40/100G high-density data center applications. This 12 Fiber harness cable is used for connecting (6) SFP+ into a MPO adapter panel and MPO trunk.

MPO Connector’s Details:

Connector Fiber Channel
12 Core MPO LC Fanout 0.9mm Fiber Optic Patch Cable 33cm For MPO LC LGX Module Cassettes 0 12 Core MPO LC Fanout 0.9mm Fiber Optic Patch Cable 33cm For MPO LC LGX Module Cassettes 1
MPO Male Connectors 12 Fibers
Note: Female connector need to connect with male connector type.



Connector Reference Housing Details
MPO Single Mode IEC 61754-7

SM APC: Green connectors+black boot (Standard Loss MPO)

SM APC: Yellow connectors+black boot (Super low loss MPO)
MPO Multimode IEC 61754-7

OM1&OM2 PC: Beige connectors+black boot (Standard Loss MPO)

OM3&OM4 PC: Aqua connectors+black boot (Standard&Super low loss MPO)

OM3&OM4 PC: Heather Violet connectors+black boot (Standard loss MPO)
  • Meets IEC Standard IEC-61754-7; IEC61755, Telcordia GR-1435-CORE, JIS C5982; TIA-604-5(FOCIS5) compliant
  • Structured cabling per TIA-568-C
  • 10G Fiber Channel Compliant
  • 40G and 100G IEEE 802.3

Other connectors’ Industrial Standard:

SC: TIA/EIA, FOCIS3, GR-326.NTT-SC IEC61754-4 and JIS C5973.

LC: TIA/EIA, FOCIS10, GR-326 EIA/TIA-604-10, IEC61754-20 and JIS C5973.

FC: EIA /TIA-604-04, FOCIS4, NTT-FC, GR-326. IEC61754-13 and JIS C5973

ST: TIA/EIA, FOCIS2, GR-326. IEC61754-2 and JIS C5973 Etc.

E2000: IEC61754-15



Available for

G657A1 MPO-LC, MPO-SC,MPO-FC,MPO-SC,MPO-ST,MPO-E2000

G657A2/B2 MPO-LC, MPO-SC,MPO-FC,MPO-SC,MPO-ST,MPO-E2000

G657B3 MPO-LC, MPO-SC,MPO-FC,MPO-SC,MPO-ST,MPO-E2000

OM1 62.5/125 MPO-LC, MPO-SC,MPO-FC,MPO-SC,MPO-ST,MPO-E2000

OM2 50/125 MPO-LC, MPO-SC,MPO-FC,MPO-SC,MPO-ST,MPO-E2000

OM3 50/125 MPO-LC, MPO-SC,MPO-FC,MPO-SC,MPO-ST,MPO-E2000

OM4 50/125 MPO-LC, MPO-SC,MPO-FC,MPO-SC,MPO-ST,MPO-E2000

OM5 50/125 MPO-LC, MPO-SC,MPO-FC,MPO-SC,MPO-ST,MPO-E2000

MPO-LC/SC/FC/ST Fan-out 0.9mm 30cm patch cable’s Specification:

Spec items. Single mode (APC 8-degree polished) Multimode (PC Flat polish)

Insertion loss (MPO)

(IEC 61300-3-34)

Standard loss:≤0.75dB(max), ≤0.35dB(Typical)

Super Low loss:≤0.35dB(max), ≤0.20dB(Typical)

Standard loss:≤0.6dB(max), ≤0.35(Typical)

Super Low loss:≤0.35dB(max) , ≤0.20dB(Typical)

Insertion loss (LC/SC/FC/ST)

(IEC 61300-3-6)

 ≤0.3dB ≤0.3dB
Return loss(MPO) ≥60dB(8degree polishing) ≥25dB
Return loss(LC/SC/FC/ST) APC≥60dB; UPC≥50dB ≥35dB
Durability <0.3dBtypical change, 200 matings
Interchangeability ≤0.2dB
Tensile strength >70N
Operating Temperature -40 to + 85°C



MPO End-Face 3D Interference Index

Item (IEC-61300-3-30) Minimum Maximum
Radius of curvature (mm) ROC-X(ABS) 2000
ROC-Y(ABS) 50mm
Angle Angle-X -0.2° -0.2°
Angle-Y APC 7.85° 8.15°
PC -0.2° -0.2°
Fiber height (nm) 1000nm 3500nm
Max.DH.All Fiber: -300nm 300nm
DH.Adj: -300nm 300nm
DH.Ave Fiber: -300nm 300nm
Core Dip: SM N/A N/A
MM -200nm 300nm



LC/SC/FC/ST End-Face Geometry 3D Interference Index

Items Connector PC End-face APC End-face
Radius of Curvature SC/FC/ST 10~25 mm 5~12 mm
LC/MU 7~25 mm 5~15 mm
Apex Offset ≤50 um
Fiber Spherical Height +/- 100 nm
Angular Offset ------ 8°± 0.5°



LC/SC/FC/ST End-face Quality (SM)

Zone Range (μm) Scratches Defects Reference
A: Core 0 to 25 None None IEC 61300-3-35:2015
B: Cladding 25 to 115 None None
C: Adhesive 115 to 135 None None
D: Contact 135 to 250 None None
E: Rest of ferrule None None



LC/SC/FC/ST End-face Quality (MM)

Zone Range (μm) Scratches Defects Reference
A: Core 0 to 65 None None IEC 61300-3-35:2015
B: Cladding 65 to 115 None None
C: Adhesive 115 to 135 None None
D: Contact 135 to 250 None None
E: Rest of ferrule None None

Features:

  • 100% pre-terminated and tested in factory to ensure transfer performance.
  • Low insertion loss, high return loss
  • MT based Multi-fiber Connector, 4,8,12 and 24 fiber connector terminations and assemblies
  • Economical solution for mass-termination of fiber
  • Designed for low loss and standard loss SM and MM applications
  • Ruggedized round cable, oval cable and bare ribbon options available
  • Color coded housings available to differentiate fiber type, polish type and/or connector grade
  • Good in repeatability and exchangeability



Application:

  • Data communication network.
  • Optical System Access network.
  • Storage area networking fiber channel.
  • High density architectures.

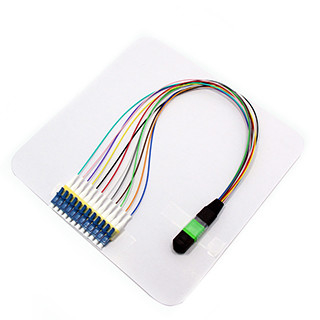

Cable Drawing:

12 Core MPO LC Fanout 0.9mm Fiber Optic Patch Cable 33cm For MPO LC LGX Module Cassettes 2
