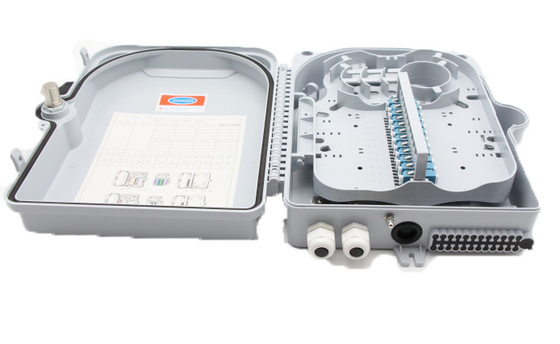

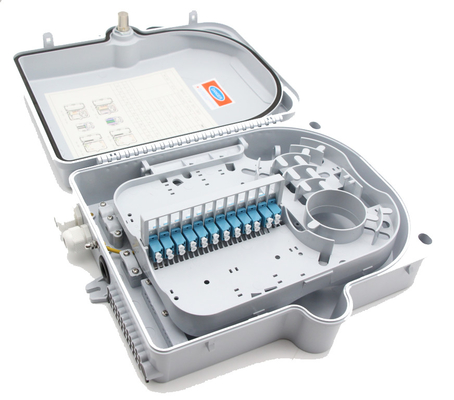

24 Cores 2 Port Fiber Distribution Box With Plc Splitter Pigtail And Adapter FDB
| Place of Origin | China |
|---|---|
| Brand Name | OMC or OEM |
| Certification | ROHS and ISO |
| Model Number | FDB-24A-1 |
| Minimum Order Quantity | 1 pc |
| Price | Negotiable |
| Packaging Details | One piece in a plastic bag, several pieces in the carton. |
| Delivery Time | 3-7days |
| Payment Terms | L/C, D/P, T/T, MoneyGram |
| Supply Ability | 100000 pcs per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | 24 Cores 2 Port Fiber Distribution Box Full Loaded With Plc Splitter Pigtail And Adapter FDB | Adaptor Type | SC,LC,FC |
|---|---|---|---|
| Material | ABS | Installation Method | Wall Mount And Pole Mount |
| Ip Grade | IP55 | Max Ratio | 1:16 (SC) And 1:32(LC) |
| High Light | IP55 Fiber Distribution Box,ROHS Fiber Distribution Box,Plc Splitter Pigtail Fiber Distribution Box |
||
Product Description
24 Cores Fiber Distribution Box full loaded with plc splitter and adapter
FDB-24A-1 is an excellent FTTH termination box with is designed for the FTTH optical network wiring, mainly for optical transmission terminal from end to end, fiber optic split; output function, effectively terminating, protection and management of fiber optic cable for the optic network. It’s the necessary equipment in the network transmission process.
Features:
This product is made of high strength and high flexibility material, injected from high temperature injection molding, smooth-lines shape, and strong shock resistance, protection up to IP55 level.
Multi-purpose wiring devices, can be on distribution application and optical split application as well. Flexible and easy to operate
The unique anti-theft lock design made the box opening and closing a flexible protective performance.

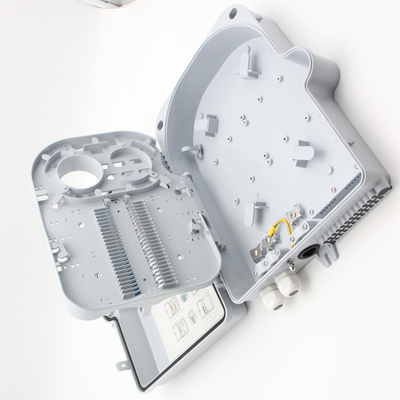

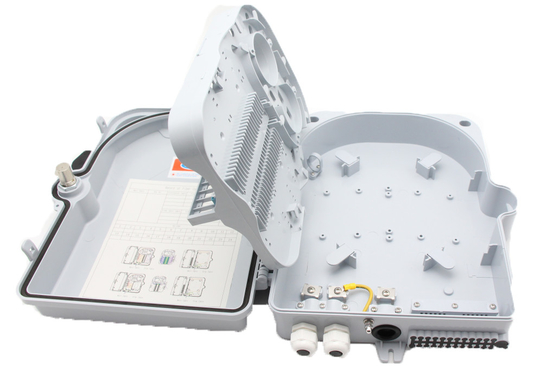

The unique activities of the hinge structure design, cover can be easily removed when in operation in order to made splicing and distribution working more convenient.
Turn structure of the plate, high-density configuration port and spectrophotometric facilities available.
Products details:
| Model No: | FDB-24A-3 |
| Dimension( L×W×H ) | 351mm×269.5mm×90mm |
| Function: | Cable termination; Optical Light split; Fiber access |
| Adaptor type | SC,LC,FC |
| Material | ABS/Pc+Abs |
| Ip Grade | IP55 |
| Max ratio | 1:16 (SC) and 1:32(LC) |
| Installation method | Wall mount and pole mount |
| Max capacity(F) | Splice 96F;PLC splitter 1x16 max |

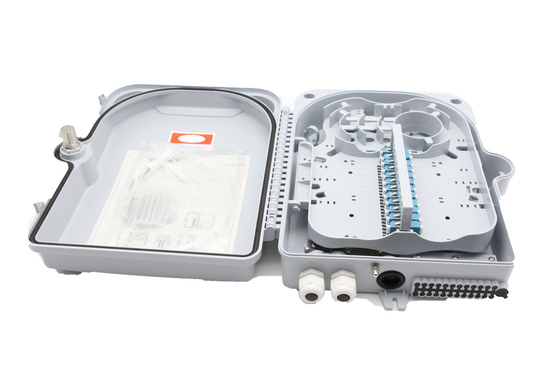

Accessories
| Screw: 4mm*40mm | 4pcs |
| Expansion bolt: M6 | 4pcs |
| Electrical adhesive tape: 5M | 1pcs |
| Cable tie:3mm*10mm | 12pcs |
| Bare cable protect tube | 0.5M |
| Heat-shrink sleeve:1.0mm*3mm 60mm | 24pcs |
Application
- When no splitter required,Max. 24cores Sc adaptor for transforming;
- When splitter required:module splitter 1X16 and 1X32 can be used,
- When tray type splitter required, 1X8 splitter application can be available;
Working Environmental conditions:
1. Working temperature:-40°C+60°C；
2. Relative humidity: ≤93%(at +40°C)；
3. Atmospheric pressure:62kpa~101kpa(Approximate elevation0～
5000m)；
4. Insert Loss:≤0.35dB；
5. Return Loss:≥50 dB；
6. Plug durability:>1000 times；
7. Insulation resistance:≥1000MΩ/500v(DC)；
8 Grounding resistance : >3000V (DC)/1min without breakdown, flashover
Company Information:
OMC industry co., limited, which was founded by an expert team, has been exporting FTTX passive products since 2007. We focus on providing innovative and integrated FTTX solutions for a variety of applications/Networks. Our capabilities include product/solution design, development, enhancement and integration. Our products are among the highest performing in the industry and truly represent the best values in the industry. We also offer training, pre and post-sales support. We help you select the right products for your Optical network's needs.
FAQ:
1. Are you the real factory?
Yes,we are the real factory more than 10 years
2. What is your main products?
Outdoor fiber optic cables; indoor fiber optic cables;FTTH Drop cables;
Indoor armored patch cords fiber cable; Optical patch cords SC/LC/FC/ST; MTP/MPO optical patch cord.
3. Do you have certificate for raw material?
We build long-term relationship cooperation with qualified ISO9001, ROHS raw material suppliers.
4. What is your delivery time?
Within 24 hours for normal kinds of fiber optic cable;
3~5 days for fiber optic patch cords with 10000 connectors.
5. MOQ: what is your minimum quantity?
MOQ for fiber optic cables: 1KM
There is no MOQ required for fiber optic patch cords,as there’s stock for normal kinds.
6. Do you have distributor in other country or domestic?
Until now, we sell our products to customers directly. And factory price could be offered.
7. Payment
For large orders: T/T, L/C
For small orders: T/T,Western Union and Paypal are acceptable
