OPGW Cable Fiber Optic Cable
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | OPGW Cable Fiber Optic Cable | Application | FTTH FTTB FTTX Network,LAN,Telecom/network,Telecommunication,GPON |
|---|---|---|---|
| Certification | ISO9001,UL,CE RoHS FCC,CE/TUV/ISO9001 | Fiber Mode | Singlemode Or Multimode |
Product Description

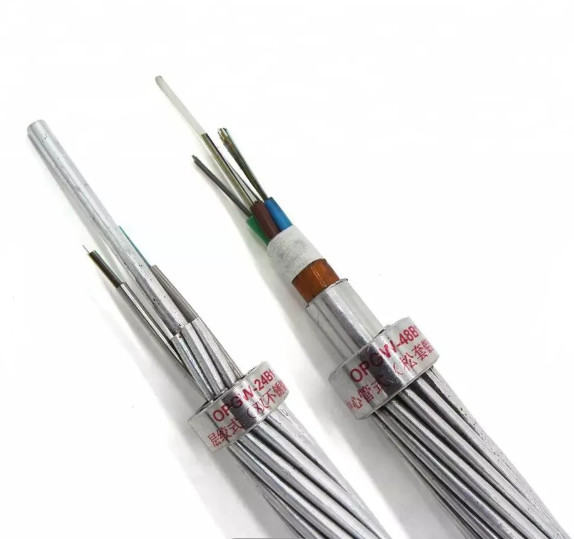

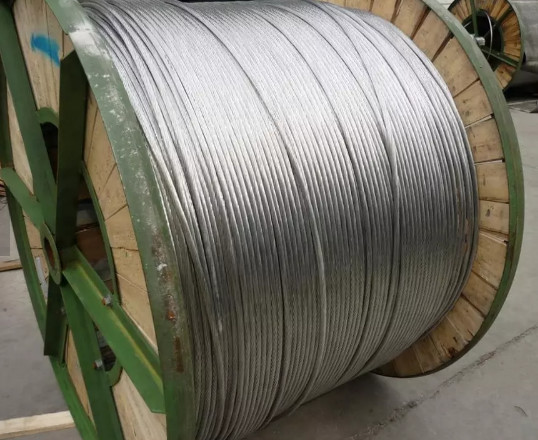

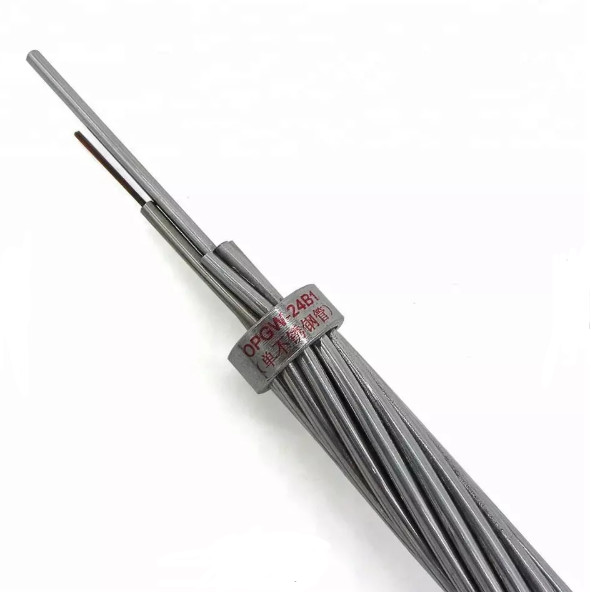

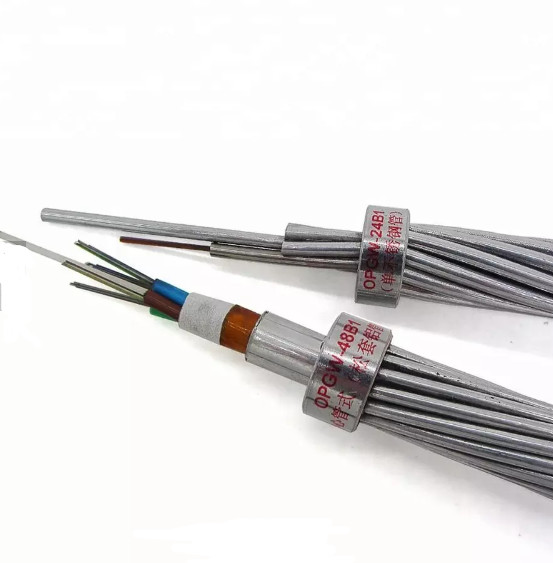

OPGW Cable Fiber Optic Cable
Features and advantage:
1. Replace existing aerial ground wires, upgrading communication lines of power systems.
2. Synchronous plan and design with ground wire when new aerial power lines are to be constructed
3. Provide stainless tube fiber unit with optimal protection
4. Conduct large fault short-circuit current and providing lightning protection
5. Suitable for application in hih fiber count and super high voltage power lines
6. Match with favorable tension-sag of the diffluent grond wire.
Product structure:
OPGW standard compliance:
IEEE -1138, IEC60794-4-1, ITU-T G.652, ITU-T G.655, IEC60794-1, DL/T 788-2001, YD/T 980-2002
| Model | OPGW12B1-32 |
| Max Fiber Qty | 12 |
| Stainless Steel Tube (mm) | 2.6 |
| Outer Dia(mm) | 7.8 |
| Supporting Cross Section (mm2) | 31.1 |
| Weight (Kg/Km) | 240 |
| Rated Tensile Strength RTS (KN) | 39.3 |
| DC Resistance @20℃ | 2.701 |
| Short Circuit Current Capacity, kA2.S (20~300℃) | 7.6 |
| Linear Expansion Coefficient, 10-61/℃ | 13.0 |
| E-Modulus(KN/mm2) | 162 |
Company Information:
OMC industry co., limited, which was founded by an expert team, has been exporting FTTX passive products since 2007. We focus on providing innovative and integrated FTTX solutions for a variety of applications/Networks. Our capabilities include product/solution design, development, enhancement and integration. Our products are among the highest performing in the industry and truly represent the best values in the industry. We also offer training, pre and post-sales support. We help you select the right products for your Optical network's needs.
FAQ:
1. Are you the real factory?
Yes,we are the real factory more than 10 years
2. What is your main products?
Outdoor fiber optic cables; indoor fiber optic cables;FTTH Drop cables;
Indoor armored patch cords fiber cable; Optical patch cords SC/LC/FC/ST; MTP/MPO optical patch cord.
3. Do you have certificate for raw material?
We build long-term relationship cooperation with qualified ISO9001, ROHS raw material suppliers.
4. What is your delivery time?
Within 24 hours for normal kinds of fiber optic cable;
3~5 days for fiber optic patch cords with 10000 connectors.
5. MOQ: what is your minimum quantity?
MOQ for fiber optic cables: 1KM
There is no MOQ required for fiber optic patch cords,as there’s stock for normal kinds.
6. Do you have distributor in other country or domestic?
Until now, we sell our products to customers directly. And factory price could be offered.
7. Payment
For large orders: T/T, L/C
For small orders: T/T,Western Union and Paypal are acceptable
