Inline Fixed Type Fiber Optic Attenuator SM LC 2.0mm Providing Safe Component Storage Short Boot For CATV Application

  • Inline Fixed Type Fiber Optic Attenuator SM LC 2.0mm Providing Safe Component Storage Short Boot For CATV Application
  • Inline Fixed Type Fiber Optic Attenuator SM LC 2.0mm Providing Safe Component Storage Short Boot For CATV Application
  • Inline Fixed Type Fiber Optic Attenuator SM LC 2.0mm Providing Safe Component Storage Short Boot For CATV Application
  • Inline Fixed Type Fiber Optic Attenuator SM LC 2.0mm Providing Safe Component Storage Short Boot For CATV Application
Place of Origin China
Brand Name OMC or OEM
Certification ROHS and ISO
Model Number LC SM SX UPC 1310nm & 1550nm
Minimum Order Quantity 1 pcs
Price Negotiable
Packaging Details 20 pieces in a plastic bag. Several bags in a larger plastic bag. hundreds of bags in a cartoon of 54*35*39cm. other size carton is available too.
Delivery Time 3 days
Payment Terms T/T, Western Union
Supply Ability 1000000 pcs per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Products Inline Fixed Type Fiber Optic Attenuator SM LC 2.0mm Providing Safe Component Storage Short Boot For CATV Application Wavelength 1310nm&1550nm
Cable Option 2mm Cable Fiber Type Singlemode
Initial Insertion Loss < 1.0dB Attenuation Range 0.6~60dB
Return Loss UPC>50dB APC>60dB Original Loss <0.6dB
Precision 0.02dB PDL <0.10dB
High Light

fixed optical attenuator

,

variable optical attenuator
Leave a Message
Product Description

Inline Fixed Type Fiber Optic Attenuator SM LC 2.0mm Providing Safe Component Storage Short Boot For CATV Application





Patch cord type Fixed attenuators from OMC offer defined control of optical signals in both integrated and add-on products.

Depending on the project or need, fixed attenuators can limit (attenuate) the amount of light passing through to the exact levels your project or application requireｍent. These precise attenuation levels provide for highly accurate performance.



OMC fixed attenuators are used in applications where a pre-determined amount of light loss is specified. Though its applications range widely, fixed attenuators are most commonly used for test and measurement, optical sensors, and telecommunications applications.



Attenuator Specifications



Items Parameters
Operating Bandwidth: SM MM
1310/1550nm 850nm
Insertion Loss <0.20db <0.35db
Return Loss UPC≥50db, APC≥60db PC≥35db
Connectors: SC,FC,LC,ST
Attenuation Tolerance 1～10db ≤0.5db; 11～30db≤1dB.
Vibration ≤0.1db change between 10～55hz(2hr)
Cable option: 2mm,0.9mm,3.0mm cable etc
Max Optical Input Power 200mw
Operating temp - 40°C to +85°C(≤0.2db insertion loss)



Applications



• DWDM applications

• Test & measurement

• Optical sensors

• Telecommunications applications

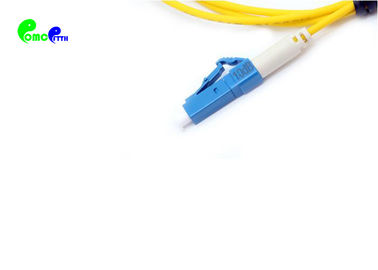

Inline Fixed Type Fiber Optic Attenuator SM LC 2.0mm Providing Safe Component Storage Short Boot For CATV Application 0

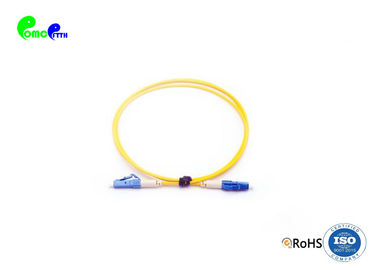

Inline Fixed Type Fiber Optic Attenuator SM LC 2.0mm Providing Safe Component Storage Short Boot For CATV Application 1

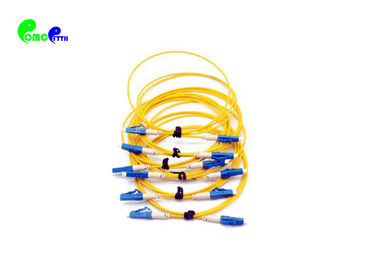

Inline Fixed Type Fiber Optic Attenuator SM LC 2.0mm Providing Safe Component Storage Short Boot For CATV Application 2



Packaging



This easily taken and well-protected fiber optical cable package has been labelled and marked by OMC as default .Standard carton size : 34*22*15 cm; 44*34*24 cm ; 54*39*34 cm . Which carton to be used depends on goods

Qty . Packing can be customized.

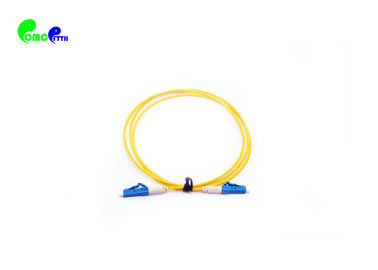

Inline Fixed Type Fiber Optic Attenuator SM LC 2.0mm Providing Safe Component Storage Short Boot For CATV Application 3



Company Information:



OMC industry co., limited, which was founded by an expert team, has been exporting FTTX passive products since 2007. We focus on providing innovative and integrated FTTX solutions for a variety of applications/Networks. Our capabilities include product/solution design, development, enhancement and integration. Our products are among the highest performing in the industry and truly represent the best values in the industry. We also offer training, pre and post-sales support. We help you select the right products for your Optical network's needs.




Inline Fixed Type Fiber Optic Attenuator SM LC 2.0mm Providing Safe Component Storage Short Boot For CATV Application 5

Inline Fixed Type Fiber Optic Attenuator SM LC 2.0mm Providing Safe Component Storage Short Boot For CATV Application 6


FAQ:



1. Are you the real factory?

Yes,we are the real factory more than 10 years



2. What is your main products?

Outdoor fiber optic cables; indoor fiber optic cables;FTTH Drop cables;

Indoor armored patch cords fiber cable; Optical patch cords SC/LC/FC/ST; MTP/MPO optical patch cord.



3. Do you have certificate for raw material?

We build long-term relationship cooperation with qualified ISO9001, ROHS raw material suppliers.



4. What is your delivery time?

Within 24 hours for normal kinds of fiber optic cable;

3~5 days for fiber optic patch cords with 10000 connectors.



5. MOQ: what is your minimum quantity?

MOQ for fiber optic cables: 1KM

There is no MOQ required for fiber optic patch cords,as there’s stock for normal kinds.



6. Do you have distributor in other country or domestic?

Until now, we sell our products to customers directly. And factory price could be offered.



7. Payment

For large orders: T/T, L/C

For small orders: T/T,Western Union and Paypal are acceptable

Tags:

fixed optical attenuator

variable optical attenuator

inline optical attenuator
