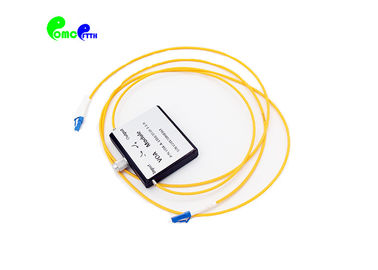

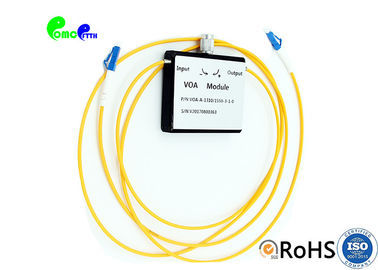

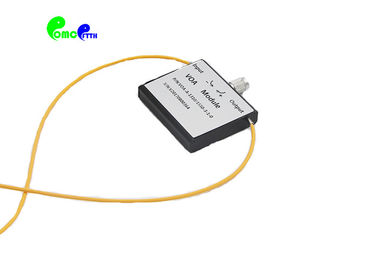

Fiber Optic Attenuator Customized LC UPC - LC UPC VOA In Line Variable Attenuator SM 0~60dB
| Place of Origin | China |
|---|---|
| Brand Name | OMC or OEM |
| Certification | ROHS and ISO |
| Model Number | LC UPC - LC UPC VOA In Line Variable Attenuator SM |
| Minimum Order Quantity | 1pcs |
| Price | Negotiable |
| Packaging Details | one peace in box, several pieces in cartoon |
| Delivery Time | 3-7 work days |
| Payment Terms | L/C, T/T, Western Union, Paypal |
| Supply Ability | 20000 per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Products | Fiber Optic Attenuator Customized LC UPC - LC UPC VOA In Line Variable Attenuator SM 0~60dB | Ferrule Type | Zirconia Ceramic |
|---|---|---|---|
| Attenuation Accuracy | ±0.8dB | Transfer Mode | Singlemode |
| Operating Wavelength(nm) | 1310~1550(SM) | Minimize Insertion Loss | <2.5dB |
| Polarization Dependent Loss | ≤0.2dB | Operating Temp Range | -40~80°C |
| High Light | fixed optical attenuator,variable optical attenuator |
||
Product Description
Fiber Optic Attenuator Customized LC UPC - LC UPC VOA In Line Variable Attenuator SM 0~60dB
Optical attenuator is a passive device used to reduce the power level of an optical signal. It is generally used in single-mode long-haul applications to prevent optical overload at the receiver. Optical attenuator is widely used in CWDM&DWDM, CATV systems, data center networks, test equipment and other high-power applications.
In-line Variable Optical Attenuator module is an useful tool for the optical components and systems test.
Features:
Wide attenuation range
High precision
Low original loss
Compact size:80*67*16.0mm
Specification:
| Wavelength (nm) | 1310 ± 40 | 1550 ± 40 |
| Attenuation range (dB) | 0.6-30 | 0.6-30 |
| Insertion loss (dB) | 0.42 | 0.4 |
| Precision (dB) | 0.02 | |
| Return loss (dB) | ≥50 | |
| PDL (dB) | ≤0.15 | |
| Max power input(mW) | 300 | |
| Cable length | 1m | |
| Operating &Storage temperature (℃) | -40 ~ +85 | |
Highlights
Attenuator Application
Variable in-line optical attenuators comprises a dual fiber collimator and a reflection component separated by a linear moveable ND filter. They are used to permit dynamic control of optical power levels in a fiber and can be applied to adjust power level of signal in the optical communication at the output of light sources, E/O converters and for the linear or dynamic range of power meter.
Packaging
This easily taken and well-protected fiber optical cable package has been labelled and marked by OMC as default .Standard carton size : 34*22*15 cm; 44*34*24 cm ; 54*39*34 cm . Which carton to be used depends on goods
Qty . Packing can be customized.
