1F 2F Outdoor Aerial Optical Fiber Drop Cable FTTH LSZH Material Singlemode G.657A Cable GJYXFCH

  • 1F 2F Outdoor Aerial Optical Fiber Drop Cable FTTH LSZH Material Singlemode G.657A Cable GJYXFCH
  • 1F 2F Outdoor Aerial Optical Fiber Drop Cable FTTH LSZH Material Singlemode G.657A Cable GJYXFCH
  • 1F 2F Outdoor Aerial Optical Fiber Drop Cable FTTH LSZH Material Singlemode G.657A Cable GJYXFCH
  • 1F 2F Outdoor Aerial Optical Fiber Drop Cable FTTH LSZH Material Singlemode G.657A Cable GJYXFCH
  • 1F 2F Outdoor Aerial Optical Fiber Drop Cable FTTH LSZH Material Singlemode G.657A Cable GJYXFCH
  • 1F 2F Outdoor Aerial Optical Fiber Drop Cable FTTH LSZH Material Singlemode G.657A Cable GJYXFCH
  • 1F 2F Outdoor Aerial Optical Fiber Drop Cable FTTH LSZH Material Singlemode G.657A Cable GJYXFCH
Place of Origin China
Brand Name OMC or OEM
Certification RoHS ISO
Model Number G657A FTTH outdoor aerial drop cable
Minimum Order Quantity 1000m
Price Negotiable
Packaging Details one peace in box, several pieces in cartoon
Delivery Time 3-7 work days
Payment Terms L/C, T/T, Western Union, Paypal
Supply Ability 20000km per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Cable Type FTTH Drop Cable Fiber Count 1 Fibers
Construction Self-supporting Fiber Type Singlemode G.657A
Outer Jacket Material LSZH (Black/White) Cable Diameter (2.0±0.2)×(5.0±0.2)mm
Weight 22kg/km Operating/Storage Temperature -40 To +60 °C
High Light

outdoor armored fiber optic cable

,

outdoor fiber optic cable
Leave a Message
Product Description

1F 2F Outdoor Aerial Optical Fiber Drop Cable FTTH LSZH Material Singlemode G.657A Cable GJYXFCH

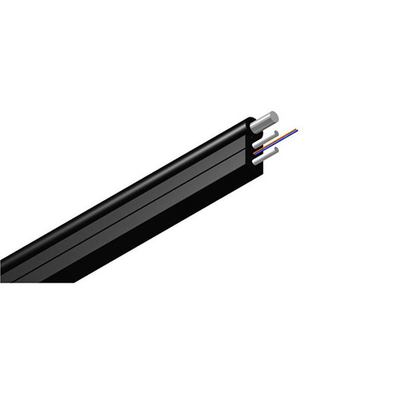

Drop cable/FTTH is mostly single-core and double-core structure. It can also be made into a four-core structure with a cross-section of 8-shaped. The reinforcement is located at the center of the two circles. It can be made of metal or non-metal structure. The fiber is in 8-shaped geometry. center. The drop cable/FTTH inner fiber adopts G.657 small bending radius fiber, which can be laid at a bending radius of 20mm. It is suitable for entering the house by pipe or cloth.

Drop cable/FTTH fiber access has become a hot spot in the field of optical communications. In the fiber access engineering, the indoor wiring close to the user is the most complicated link. The bending performance and tensile performance of the conventional indoor optical cable can not meet the requirements of FTTH (fiber to the home) indoor wiring.



Application



1. Adopted to outdoor level and vertical distribution.

2. Suitable for connect with communication equipment.

3. Long distance and local area network communication.

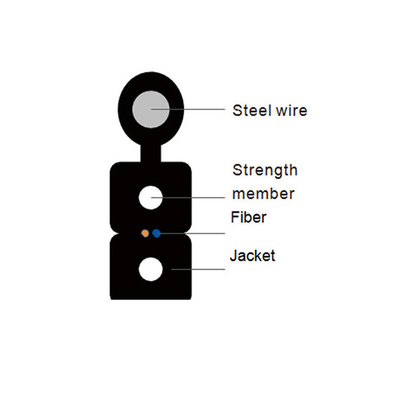

Cable Construction details

Items Description
Number of fiber 1cores
Fiber type G657A
Strength member material Galvanized steel wire/FRP/KFRP
diameter 2*(0.5~0.8)mm

Self support

Messenger wire

 material Galvanized steel wire
diameter 1.0mm
Outer sheath material LSZH
diameter 1.8±0.2mm
Cable size (Height * width) 2.0(±0.1) mm × 5.2(±0.2)mm
Cable sheath thickness Max. 0.8mm/Min. 0.4mm
Messenger sheath thickness 0.5~0.7mm
Cable weight 22KG±1KG

1F 2F Outdoor Aerial Optical Fiber Drop Cable FTTH LSZH Material Singlemode G.657A Cable GJYXFCH 0

1F 2F Outdoor Aerial Optical Fiber Drop Cable FTTH LSZH Material Singlemode G.657A Cable GJYXFCH 1

1F 2F Outdoor Aerial Optical Fiber Drop Cable FTTH LSZH Material Singlemode G.657A Cable GJYXFCH 2

1F 2F Outdoor Aerial Optical Fiber Drop Cable FTTH LSZH Material Singlemode G.657A Cable GJYXFCH 3



Cable Mechanical characteristic



Items Description
Installation Temperature range -20--+60℃
Operation and transport temperature -40-+70℃
Min Bending Radius(mm) Long term 15D
short term 30D
Allowable Tensile Strength(N) Long term 300
short term 600
Crush Load (N/100mm) Long term 1000
short term 2200



































                Cable marking



The cable sheath shall be marked with white characters at intervals of one meter with following information:

1. Purchaser’s name

2. Fiber type and counts

3. Cable type

4. Name of manufacturer

5. Country of origin

       6. Length marking



Packing Informations

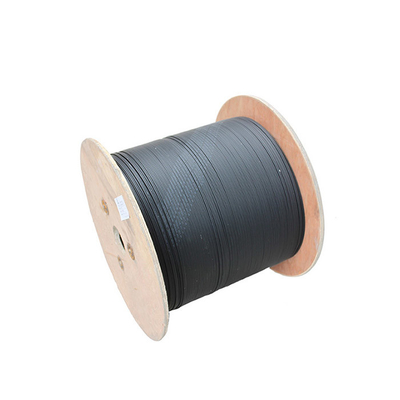

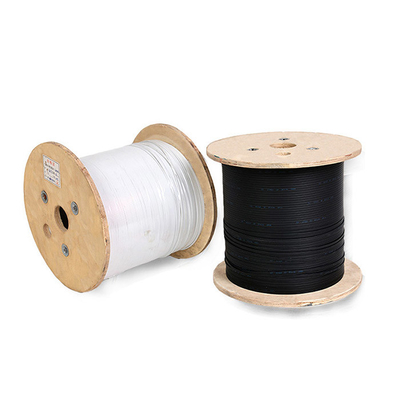

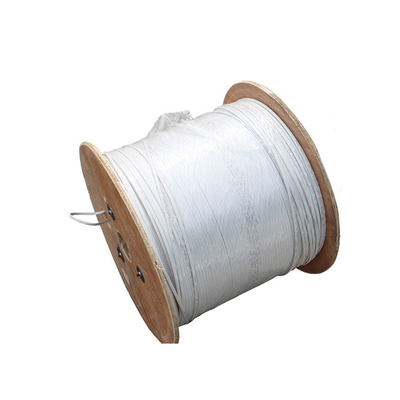

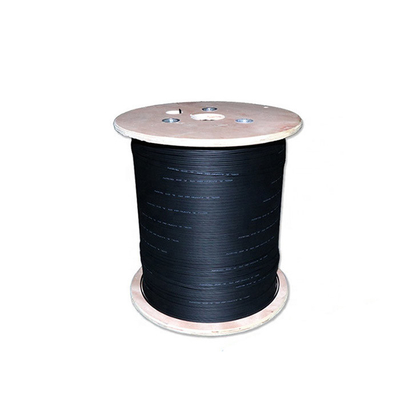

1. Packing material: Wooden drum+ Carton box

2. Packing length: standard length of cable shall be 2 km. Other cable length is also available if required by customer



Our advantages:



1. Professional cable manufacturer.

2. About 10 years experiences in cable industry.

3. MOQ just 1Km.

4. ISO, UL , ROSH,REACH...certifications.

5. Can be customized production of fiber optic cable.

6. Independent Lab with full set of testing machines.

7. OEM for 3M , TYCO more than 5 years.

8. Supply to Thai telecom, Doha airport, Doha telecom, Dubai telecom, Dubai telecom, Slovenia telecom and Yemen telecom and other big projects.

9. We have export license ,can support cable to you without profit, because we can get tax refund from Chinese government.

Company Information

OMC industry co., limited, which was founded by an expert team, has been exporting FTTX passive products since 2007. We focus on providing innovative and integrated FTTX solutions for a variety of applications/Networks. Our capabilities include product/solution design, development, enhancement and integration. Our products are among the highest performing in the industry and truly represent the best values in the industry. We also offer training, pre and post-sales support. We help you select the right products for your Optical network's needs.

13

FAQ:



1. Are you the real factory?

Yes,we are the real factory more than 10 years



2. What is your main products?

Outdoor fiber optic cables; indoor fiber optic cables;FTTH Drop cables;

Indoor armored patch cords fiber cable; Optical patch cords SC/LC/FC/ST; MTP/MPO optical patch cord.



3. Do you have certificate for raw material?

We build long-term relationship cooperation with qualified ISO9001, ROHS raw material suppliers.



4. What is your delivery time?

Within 24 hours for normal kinds of fiber optic cable;

3~5 days for fiber optic patch cords with 10000 connectors.



5. MOQ: what is your minimum quantity?

MOQ for fiber optic cables: 1KM

There is no MOQ required for fiber optic patch cords,as there’s stock for normal kinds.



6. Do you have distributor in other country or domestic?

Until now, we sell our products to customers directly. And factory price could be offered.



7. Payment

For large orders: T/T, L/C

For small orders: T/T,Western Union and Paypal are acceptable
