Air Blown Micro 144 Core Optical Fiber Cable For FTTH FTTB FTTX
| Place of Origin | China |
|---|---|
| Brand Name | OMC or OEM |
| Certification | RoHS,SGS,ISO |
| Model Number | GCYFTY 24-144 core Micro fiber cable |
| Minimum Order Quantity | 1 |
| Price | US $ 340-1300 |
| Packaging Details | 100*100*70cm |
| Delivery Time | 5-8 working days |
| Payment Terms | L/C, T/T,Paypal |
| Supply Ability | 100000 Kilometer/Kilometers per Month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | GCYFTY 24-144 Core Micro Fiber Cable | Package | Plywood Reel/customized |
|---|---|---|---|
| Jacket Material | PE PVC LSZH HDPE | Certification | CE/ROHS/ISO9001 |
| Application | FTTH FTTB FTTX Network | Installation | Micro Duct Air Blow |
| Central Strength Member | FRP | Fiber Type | G652D/G657A1/G657A2 |
| High Light | 144 Core Optical Fiber Cable,FTTH Optical Fiber Cable,FTTX 144 core fiber optic cable |
||
Product Description
Air Blown Micro 144 Core Optical Fiber Cable For FTTH FTTB FTTX
China Fiber Optic Cable Manufacturers Air-Blown Micro 24-144 core Optical Fiber Cable GCYFTY
OMC has been devoted to developing and producing the air blown fibre cable since 2003. So far, it has produced various air blown fibre cable types which are of good performance and compose a complete series of air blown products. ABF is the important part of the series, and it is the most popular product of the indoor optical fibre cables for generic cabling in Europe,Japan ,South Korea and so on.
The ABF is the product that with small diameter, lightweight, highly flexibility and proper stiffness, and it can be blown into the microduct of 5.0/3.5mm. The fibres are coated with a soft acrylate resin which provides excellent dimensional and thermal stability to cushion the fibres, in addition, the resin can be easily stripped in connecting the fibres. The outer sheath is a thermoplastic that is of low friction. The surface of the sheath is designed with special grooves, compared to the surface of the traditional optical fibre cable, it provides not only the high level of mechanical protection, but also the perfect blowing performance.
Features and Benefits
Stable structure, good mechanical and temperature performance.
Designed with special grooves to advance blowing distance.
Lightweight and proper stiffness , repeat installation.
Designed with no gel, easy stripping and handling.
Better costs advantage compared to traditional product.
Complete accessories, less manpower, lower installation time.
Standards
Unless otherwise specified in this specification, all requirements shall be mainly in accordance with the following standard specifications.
Optical Fibre …...ITU-T G.651,G.652,G.657
Optica Cable ……IEC 60794-1-2,IEC 60794-5

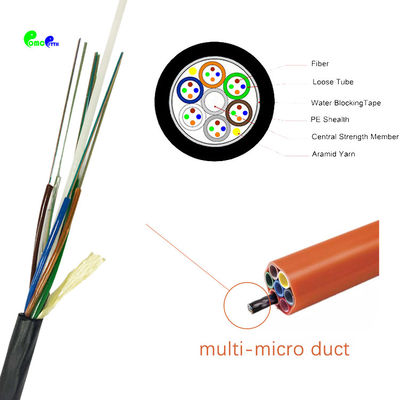

Air Blow Cable Design
Loose Tube Optical Fiber Cable-Mini Design-G.652D Fiber
Central Strength Member (CSM): glass fiber reinforced plastic rod (FRP) with PE sheath covering when needed.
Buffer Tube: PBT plastic material, containing 12 fibers and filled with a suitable water tightness compound.
Filler Elements: Nature PP plastic rods, when needed.
Stranding: Loose tubes and fillers SZ stranded around the CSM.
Longitudinal Water Tightness: dry core with water swellable elements.
Ripcord: 1 aramid ripcord under outer sheath.
Outer Sheath: Black HDPE
Cable Specification
| Cable Cores | 24 | 36 | 72 | 96 | 144 | |
| No. of Tubes | 2 | 4 | 6 | 8 | 12 | |
| No. of Fillers | 4 | 2 | / | / | / | |
| Fiber Counts in Tube | 12 | |||||
| Tube/Filler-Φ | mm | 1.6 | 1.4 | |||
| CSM-Φ | mm | 1.7 | 2.1 | 2.4 | ||
| CSM with PE-Φ | mm | / | 2.65 | 4.2 | ||
| Thickness of Outer PE Sheath | mm | 0.5 | ||||
| Max. Cable Diameter | mm | 6.0 | 6.9 | 8.0 | ||
| Nominal Cable Weight | Kg/km | 30 | 42 | 57 | ||
Main Mechanical and Environmental Characteristics
| Test | Test Standard | Specified Value | Acceptance Criteria |
| Tensile | IEC 60794-1-2-E1 | 500N, 10min | fiber strain≤0.60%,△α reversible |
|
Crush |
IEC 60794-1-2-E3 | 500N/10cm, 10min, 3time | α reversible, no damage |
| Impact | IEC 60794-1-2-E4 | 2J, R=300mm, 3impacts | α reversible, no damage |
| Bend | IEC 60794-1-2-E11 | R=10D, 3turns, 5cycles | α reversible, no damage |
| Torsion | IEC 60794-1-2-E7 | 40N, 5cycles, +/-180° | α reversible, no damage |
| Temperature Cycling | IEC 60794-1-2-F1 | -20~+70℃, 2 cycles, 8h | α reversible, no damage |
| Water Penetration | IEC 60794-1-2-F5 | 3m sample, 1m height, 24h | No water leakage |
Fiber & Tube Color
Package
Our Services
1, Free samples--- we can supply free products for testing .
2, Brand---OEM service acceptable
3, Payment terms---Nice payment. Like T/T, Western Union, Paypal etc.
4, Quality Level---High quality as per your requirements.
5, Competitive price---The manufacturer having our own factory has the advantage.
6, Delivery Time--- Usually 3 days. Less than a week.
8, Optical Network Project Consultant---Professional experts help you.
9, New Products development for customer---We can produce it for you with pattern.
10, logistic solution--- Cost-effective ways can be chosen for you.
