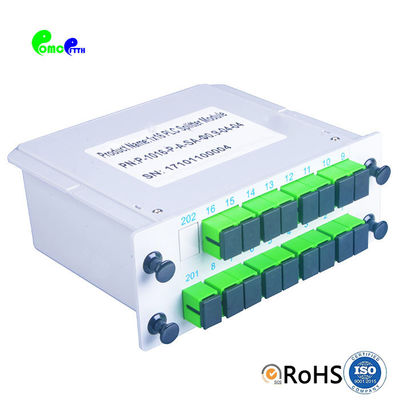

FTTH LGX Fiber Optic Splitter 1x16 SC APC UPC ABS Cassette Plug In Type PLC Splitter

  • FTTH LGX Fiber Optic Splitter 1x16 SC APC UPC ABS Cassette Plug In Type PLC Splitter
  • FTTH LGX Fiber Optic Splitter 1x16 SC APC UPC ABS Cassette Plug In Type PLC Splitter
  • FTTH LGX Fiber Optic Splitter 1x16 SC APC UPC ABS Cassette Plug In Type PLC Splitter
  • FTTH LGX Fiber Optic Splitter 1x16 SC APC UPC ABS Cassette Plug In Type PLC Splitter
  • FTTH LGX Fiber Optic Splitter 1x16 SC APC UPC ABS Cassette Plug In Type PLC Splitter
  • FTTH LGX Fiber Optic Splitter 1x16 SC APC UPC ABS Cassette Plug In Type PLC Splitter
Place of Origin China
Brand Name OMC or OEM
Certification ISO RoHS
Model Number 1x16 LGX Box Type Splitter SC APC UPC
Minimum Order Quantity 5
Price USD6.5-10
Packaging Details BOX
Delivery Time 3-7 workdays
Payment Terms L/C, T/T, Western Union,Paypal
Supply Ability 1000000pcs/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name 1x16 LGX Box Fiber Optic Plc Splitter Configuration Type 1x16
Connector Type SC APC/UPC Insertion Loss Max.13.5dB
Return Loss APC≥60, UPC≥50dB Directivity ≥55dB
Operating/Storage Temperature -40~85°C Operating Bandwidth 1260~1650nm
High Light

LGX Fiber Optic Splitter

,

1x16 Fiber Optic Splitter

,

plc splitter 1x16
Leave a Message
Product Description



FTTH LGX Fiber Optic Splitter 1x16 SC APC UPC ABS Cassette Plug In Type PLC Splitter



FTTH 1x16 LGX Box Type Splitter SC APC UPC Fiber Optic PLC Splitter ABS Cassette Plug in Type Splitter Single Mode



Planar lightwave circuit (PLC) splitter is an optical power distribution device based on the integrated waveguide of quartz plate. With the features of small size, wide range of operating wavelength, stable reliability and good uniformity, It’s widely used in PON,ODN,FTTX point to connect between termination device and central office to achieve the signal splitter.
OMC ‘s Mini Plug-in module Type PLC Splitter family has 1x2, 1x4, 1x8, 1x16, 1x32 PLC splitter, with specifications that are tailored for different applications and markets. Wide bandwidth, compact size. All products meets, ROHS, GR-1209-CORE-2001 and GR-1221-CORE-1999.





Specification

Parameter Unit Specification (P Grade)
Operation Wavelength nm 1260～1650
Channel Number 　 1X2 1X4 1X8 1X16 1X32 1X64
Insertion Loss with Connector (Max) dB 4.1/4.4 7.4/7.9 10.5/11.0 13.8/14.1 17.1/17.4 20.4/21.0
Insertion Loss without Connector (Max) dB 3.8/4.1 7.1/7.6 10.2/10.7 13.5/13.8 16.8/17.1 20.1/20.7
Uniformity (Max.) dB 0.6 0. 7 0.8 1.0 1.5 2.0
Polarization Dependent Loss dB 0.2 0.2 0.2 0.3 0.3 0.3
Return Loss dB ≥45(PC)；50(UPC)；60(APC)
Directivity dB ≥55



Parameter Unit Specification (P Grade)
Operation Wavelength nm 1260～1650
Channel Number 　 2X2 2X4 2X8 2X16 2X32 2X64
Insertion Loss with Connector (Max) dB 4.4/4.6 7.7/8.1 10.8/11.3 14.1/14.4 17.4/17.7 20.6/21.3
Insertion Loss without Connector (Max) dB 4.1/4.3 7.4/7.8 10.5/11 13.8/14.1 17.1/17.4 20.3/21.0
Uniformity (Max.) dB 0.6 0. 7 0.8 1.0 1.5 2.0
Polarization Dependent Loss dB 0.2 0.2 0.2 0.3 0.3 0.5
Return Loss dB ≥45(PC)；50(UPC)；60(APC)
Directivity dB ≥55



Environmental Conditions

Operating Temperature ℃ -40～+85
Storage Temperature ℃ -40～+85
Operating Humidity %RH ≤93
Storage Humidity %RH ≤93



Dimension (mm)

Splitter 1X2 1X4 1X8 1X16 1X32 1X64
Cassette size 100×80×10 100×80×10 100×80×10 120x80x18 120x80x18 140×114×18
Splitter 2X2 2X4 2X8 2X16 2X32 2X64
Cassette size 100×80×10 100×80×10 100×80×10 120x80x18 120x80x18 140×114×18



Cable Info

Fiber type G657A1
Loose Tube 900um,1.6mm,1.8mm,2.0mm
Connector SC, LC,FC,ST,…….
2xN Splitter Only Single Chip



Application

Being installed in an outside plant enclosure, PON splitter is used to distribute or combine optical signals, which gives carriers the ability to split optical signals to multiple homes or businesses.

FTTH LGX Fiber Optic Splitter 1x16 SC APC UPC ABS Cassette Plug In Type PLC Splitter 0FTTH LGX Fiber Optic Splitter 1x16 SC APC UPC ABS Cassette Plug In Type PLC Splitter 1



FAQ:



1. Are you the real factory?

Yes,we are the real factory more than 10 years



2. What is your main products?

Outdoor fiber optic cables; indoor fiber optic cables;FTTH Drop cables;

Indoor armored patch cords fiber cable; Optical patch cords SC/LC/FC/ST; MTP/MPO optical patch cord.



3. Do you have certificate for raw material?

We build long-term relationship cooperation with qualified ISO9001, ROHS raw material suppliers.



4. What is your delivery time?

Within 24 hours for normal kinds of fiber optic cable;

3~5 days for fiber optic patch cords with 10000 connectors.



5. MOQ: what is your minimum quantity?

MOQ for fiber optic cables: 1KM

There is no MOQ required for fiber optic patch cords,as there’s stock for normal kinds.



6. Do you have distributor in other country or domestic?

Until now, we sell our products to customers directly. And factory price could be offered.



7. Payment

For large orders: T/T, L/C

For small orders: T/T,Western Union and Paypal are acceptable
