2 IN 2 OUT IP68 FTTH Fiber Optic Splice Closure FOSC Splice Closures
| Place of Origin | China |
|---|---|
| Brand Name | OMC or OEM |
| Certification | ROHS and ISO |
| Model Number | 2 IN 2 OUT FOSC Splice Closures Horisontal Type |
| Minimum Order Quantity | 5pcs |
| Price | Negotiable |
| Packaging Details | Box |
| Delivery Time | 3-7 workdays |
| Payment Terms | L/C, T/T, Western Union,Paypal |
| Supply Ability | 1000000pcs/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | 2 IN 2 OUT FOSC Splice Closures Horisontal Type | Dimensions | 460mmx182mmx160mm |
|---|---|---|---|
| No. Of Fiber | 96core | Protection Level | IP68 |
| Number Of Inlet/outlet Ports | 2 (pieces) On Each Side (total 4 Pieces) | Assemmbling Method | Pole Mounting,Pedestal Mounting Strand Mounting |
| Application | Outdoor Used | Color | Black |
| Material | PC | ||
| High Light | FTTH Fiber Optic Splice Closure,IP68 Fiber Optic Splice Closure,IP68 FOSC Splice Closures |
||
Product Description

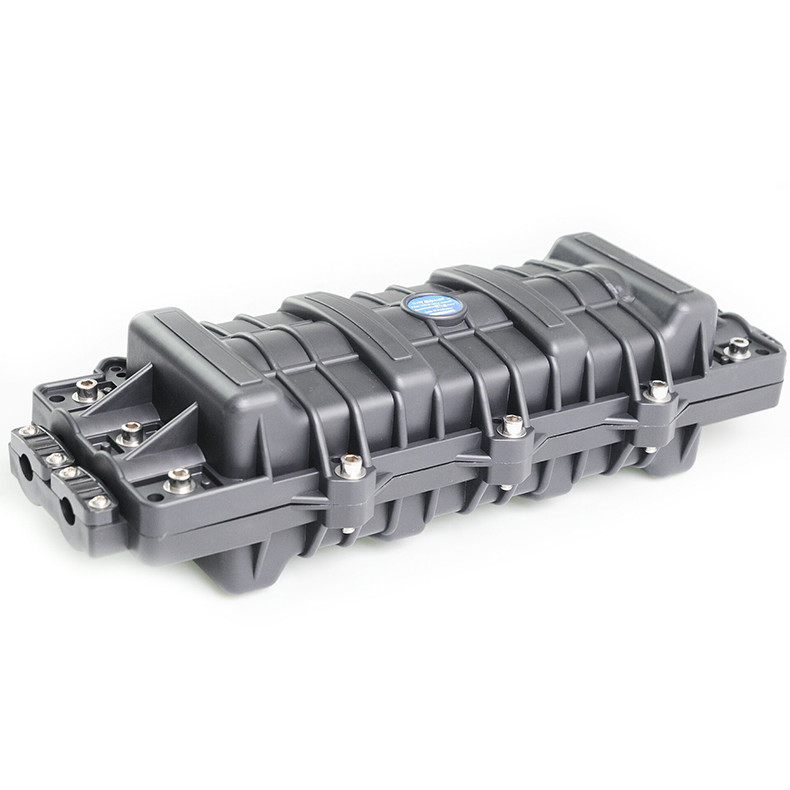

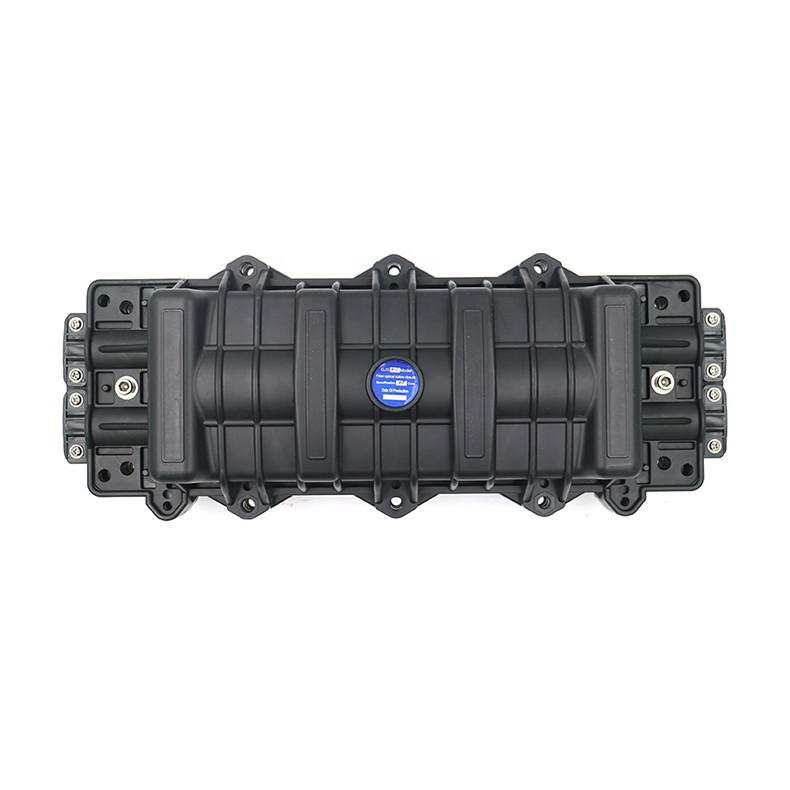

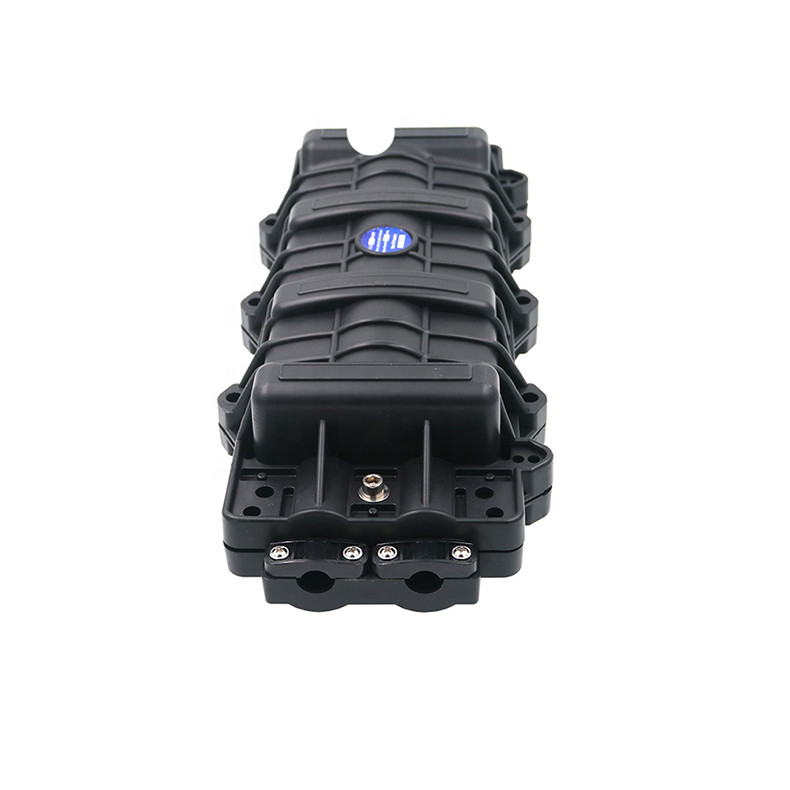

2 IN 2 OUT IP68 FTTH Fiber Optic Splice Closure FOSC Splice Closures
2 IN 2 OUT IP68 FTTH Underground H015 Optical Fiber Joint FOSC Splice Closures Horisontal Type
Horizontal type fiber closure has a flat or cylindrical outer housing to provide space and protection for fiber optic splices. It usually contains one or more fiber splice trays assembled to hold/protect optical fiber splices. The common fiber counts of per splice tray are 6, 12 and 24 fibers. So one fiber closure’s splice capacity could cover a range of 6-288Fibers Totally.
They are commonly made of high tensile construction plastic, so they have good adaptability and compression re-sistance. At the same time, they have good waterproof and dustproof function. If attached to a pole or hung from wir-ing, these fiber splice closures need to be held firmly in place, to avoid damage from weather and wind. So This type of fiber splice closure is the most commonly used one in mounted aerials or buried underground.
Basic structure and configuration
1). Dimension and capacity
| Outside dimension (LxWxH) | 460×182×120 (mm) |
| Weight (excluding outside box) | 2300g-2500g |
| Number of inlet/outlet ports | 2 (pieces) on each side (total 4 pieces) |
| Diameter of fiber cable | Φ5—Φ20 (mm) |
| Capacity of FOSC |
Bunchy: 12—96(Cores) Ribbon: max. 288(Cores) |

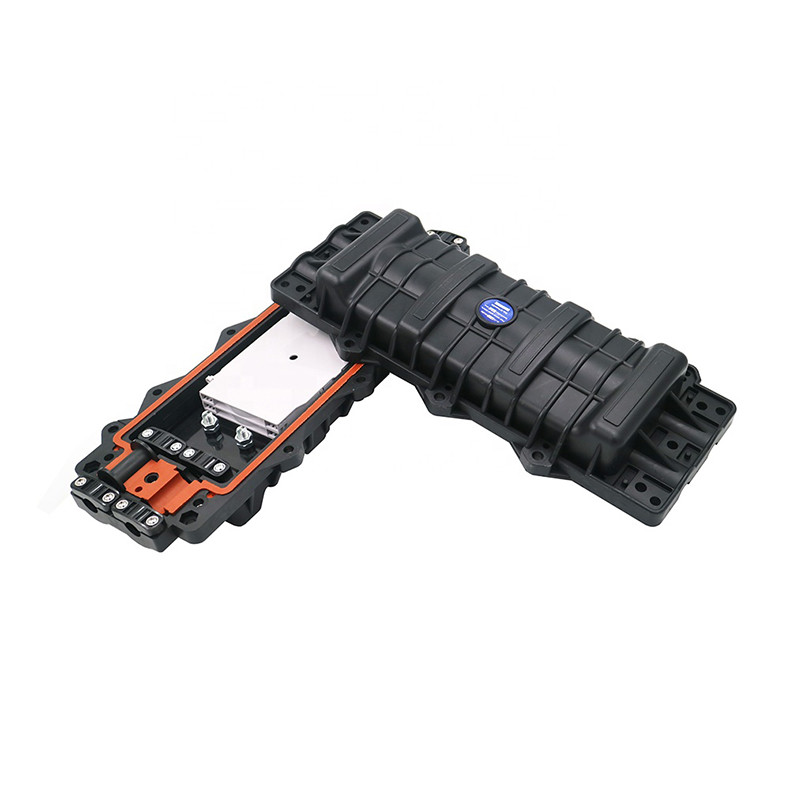

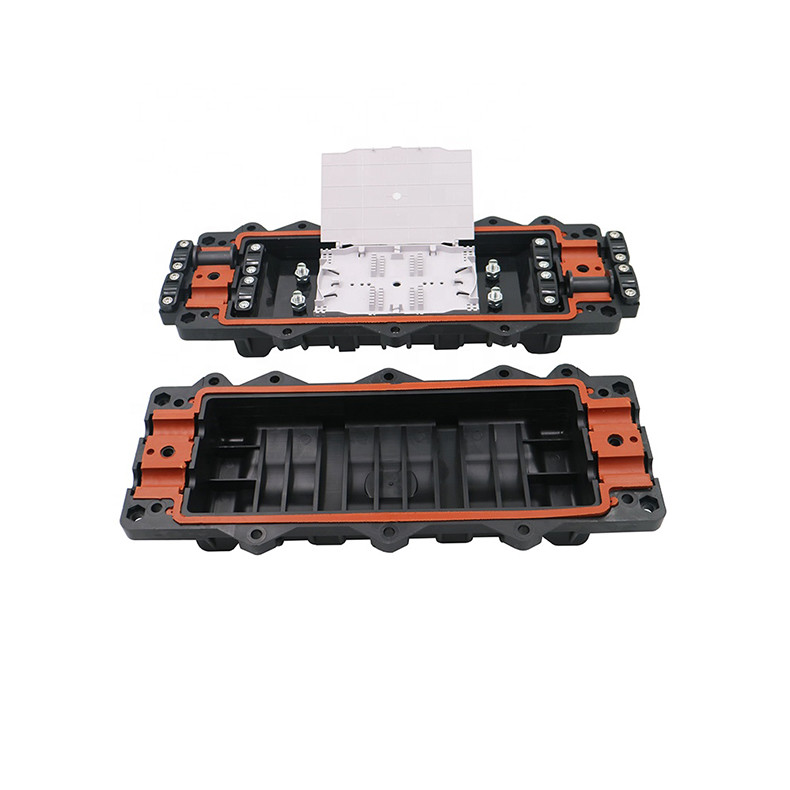

2). Main components
| No. | Name of components | Quantity | Usage | Remarks |
| 1 | Housing | 1 set | Protecting fiber cable splices in whole |
Internal diameter: 460×182×60 (mm) |
| 2 |
Fiber optic splice tray (FOST) |
max. 4 pcs (bunchy) max.4 pcs (ribbon) |
Fixing heat shrinkable protective sleeve and holding fibers |
Suitable for: Bunchy:12,24(cores) Ribbon:6 (pieces) |
| 3 | Foundation | 1 set | Fixing reinforced core of fiber- cable and FOST | |
| 4 | Seal fitting | 1 set | Sealing between FOSC cover and FOSC bottom | |
| 5 | Port plug | 2 pieces | Sealing empty ports |
