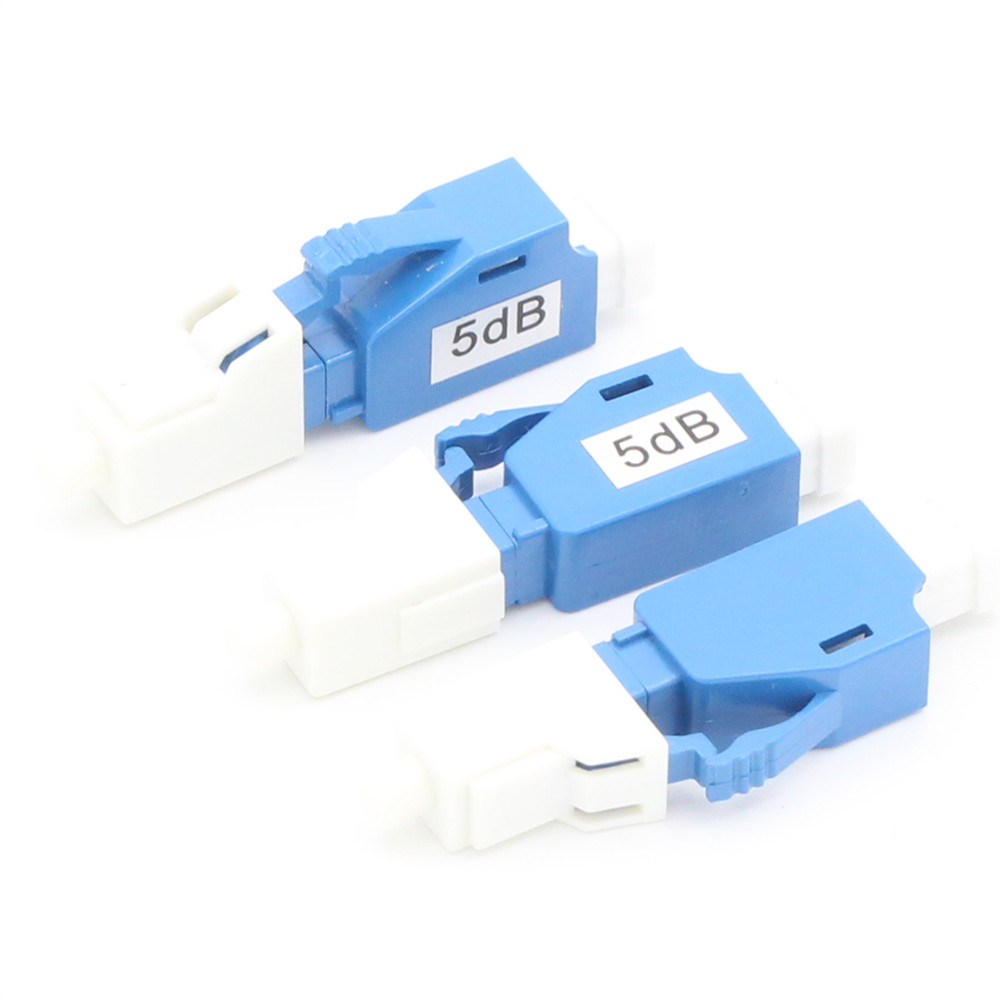

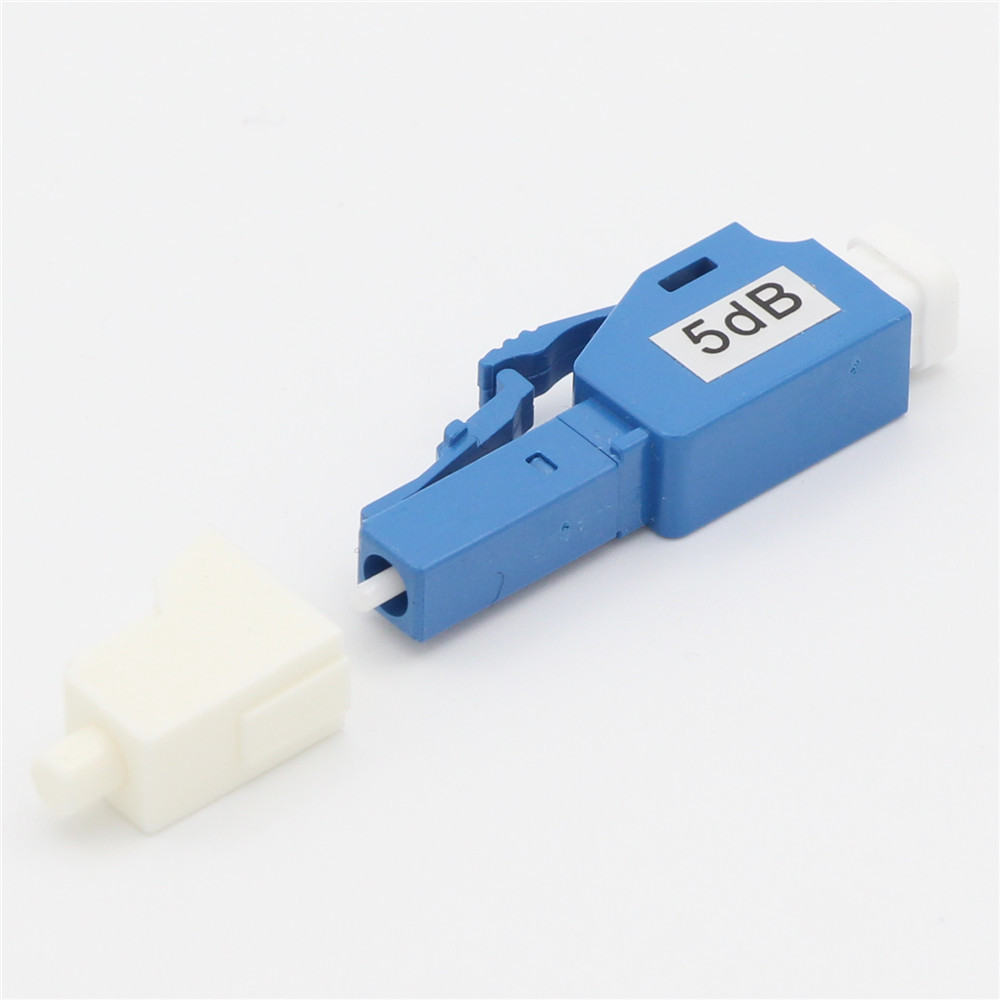

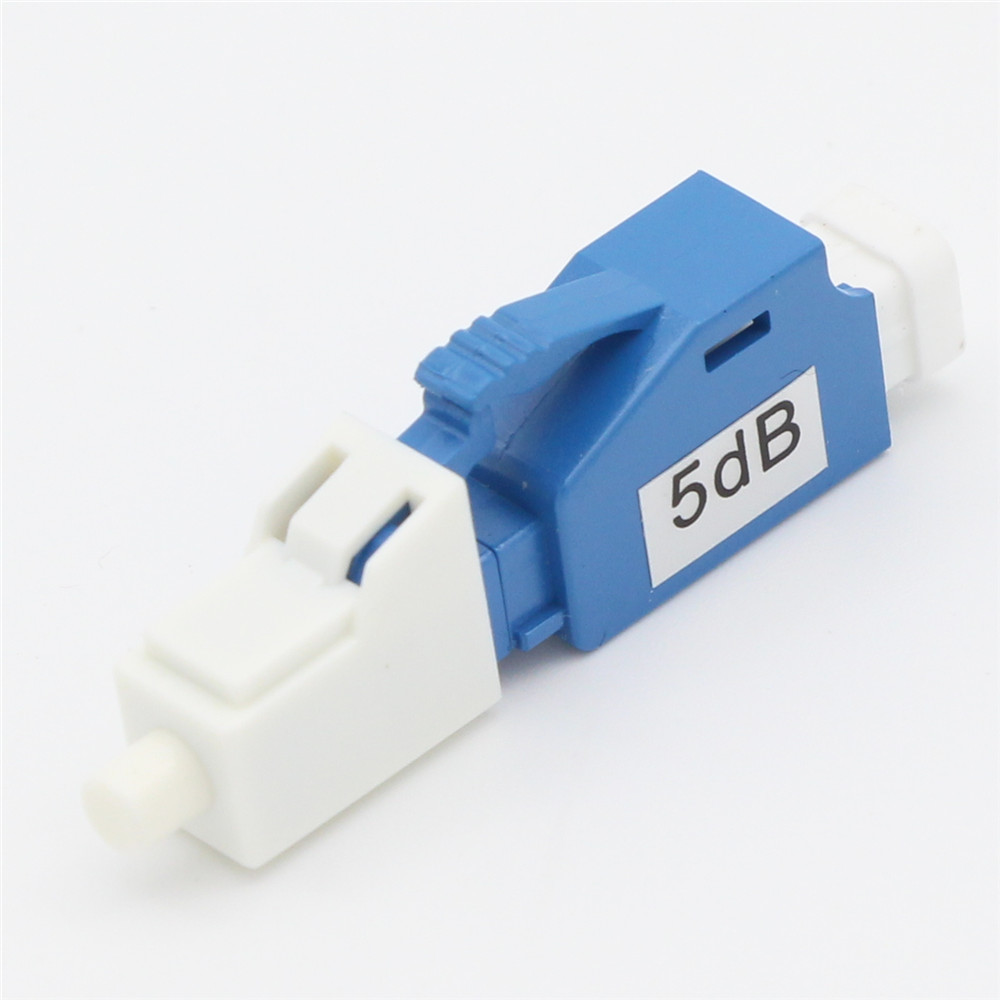

1310/1550nm Plug - In Fixed Optical Attenuator

  • 1310/1550nm Plug - In Fixed Optical Attenuator
  • 1310/1550nm Plug - In Fixed Optical Attenuator
  • 1310/1550nm Plug - In Fixed Optical Attenuator
Place of Origin China
Brand Name OMC or OEM
Certification ROHS and ISO
Model Number LC SM 1310/1550nm plug-in fixed female to male
Minimum Order Quantity 5 pcs
Price Negotiable
Packaging Details 20 pieces in a plastic bag. Several bags in a larger plastic bag. hundreds of bags in a cartoon of 54*35*39cm. other size carton is available too.
Delivery Time 3 days
Payment Terms T/T, Western Union
Supply Ability 1000000 pcs per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Place Of Origin Guangdong, China (Mainland) Brand Name OEM Or OMC
Model Number 5dB LC SM Attenuator Operating Bandwidth 1260~1620(SM)
Insertion Loss SM<0.20db, MM<0.35db Return Loss UPC≥50db, APC≥60db
Attenuation Tolerance 1~5db±0.5db &6~25db±10% Vibration 10~55hz(2hr)
Max Optical Input Power 200mw Operating Temp - 40°C To +85°C
Application FTTH FTTB FTTX Network Certification RoHS
Fiber Type Single Mode
High Light

fixed optical attenuator

,

variable optical attenuator
Leave a Message
Product Description

LC SM 1310/1550nm Plug-in Fixed Female To Male Attenuator



Fixed Female to male attenuatorsfrom OMC offer defined control of optical signals in both integrated and add-on products.



Depending on the project or need, fixed attenuators can limit (attenuate) the amount of light passing through to the exact levels your project or application requirement.These precise attenuation levels provide for highly accurate performance.



OMC fixed attenuators are used in applications where a pre-determined amount of light loss is specified. Though its applications range widely, fixed attenuators are most commonly used for test and measurement, optical sensors, and telecommunications applications.



Details



Fiber Connector LC/UPC Connector Gender Fixed Male to Female
Transfer Mode Singlemode Attenuation 5dB
Operating Wavelength(nm) 1260~1620(SM) Attenuation Accuracy ±0.5dB
Return loss ≥ 55dB Max Optical Input Power 200mW
Operating Temp Range -40~80°C Polarization Dependent Loss ≤ 0.2dB
Storage Temp Range -40~85°C Humidity 95%RH



Features & Benefits



Fully compatible with LC fiber optic connectors

Precise attenuation values

Industry standard attenuation levels

Low PDL and insertion loss

Precision polishing for reduced back reflection

Highly Reliable Physical Contact Connectors

Compartmentalized case provides safe component storage and simple organization

Small, durable case for easy portability

RoHS compliant



Applications



- DWDM applications

- Test & measurement

- Optical sensors

- Telecommunications applications



1310/1550nm Plug - In Fixed Optical Attenuator 0



Packaging & Delivery

Packaging Details 20 pieces in a plastic bag.
Several bags in a larger plastic bag.
hundreds of bags in a cartoon of 54*35*39cm.
other size carton is available too.
Delivery Time Shipped in 3 days after payment
