FC Female To FC Female Variable Optical Attenuator
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Fiber Connector | FC | Attenaution Method | Variable |
|---|---|---|---|
| Transfer Mode | Singlemode | Attenuation Accuracy | ±0.8dB |
| Operating Wavelength(nm) | 1260~1620(SM) | Polarization Dependent Loss | ≤0.2dB |
| Minimize Insertion Loss | <2.5dB | Max Optical Input Power | 200mW |
| High Light | fixed optical attenuator,variable optical attenuator |
||
Product Description

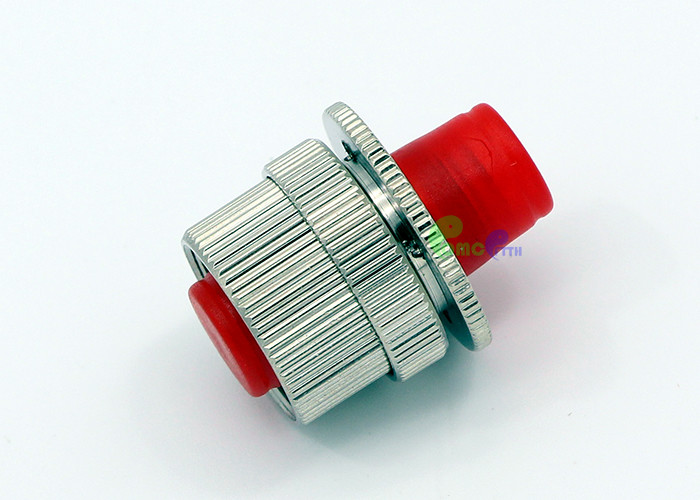

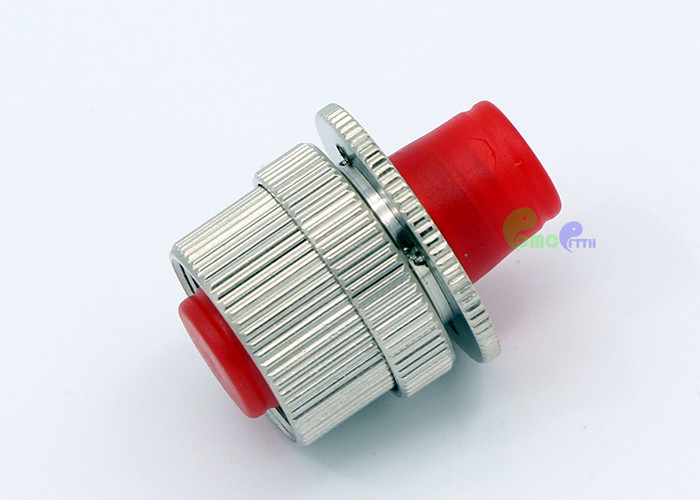

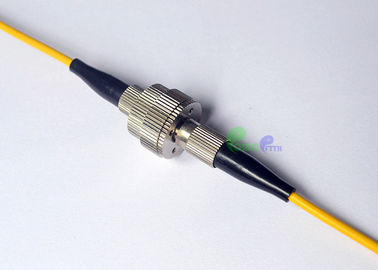

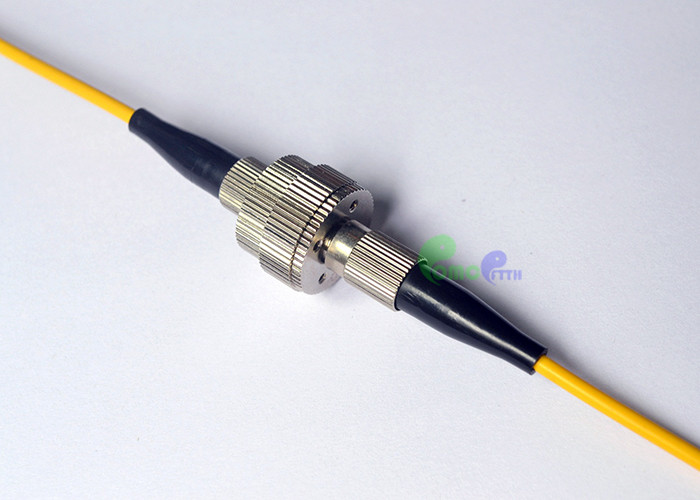

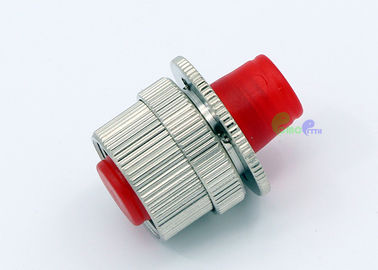

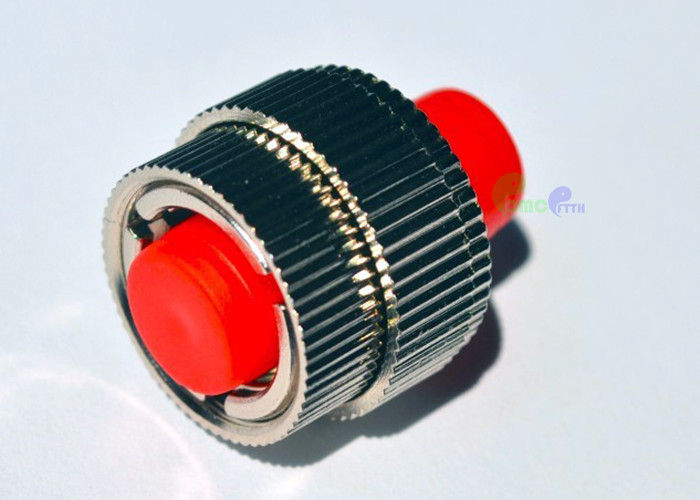

FC Female to FC Female variable Fiber optic attenuator 1~30dB
Optical attenuator is a passive device used to reduce the power level of an optical signal. It is generally used in single-mode long-haul applications to prevent optical overload at the receiver. Optical attenuator is widely used in CWDM&DWDM, CATV systems, data center networks, test equipment and other high power applications.
Female to female variable attenuators from OMC offer defined control of optical signals in both integrated and add-on products.
OMC Variable attenuators are used in applications where a pre-determined amount of light loss is specified. Though its applications range widely, attenuators are most commonly used for test and measurement, optical sensors, and telecommunications applications.
Highlights:
1. High quality ceramic core
The application of Imported A - grade ceramic insert enable the product with high stability, good reliability , high transmission speed and low insertion loss.
2. Wide attenuation range 1dB to 30dB
The FC attenuator from OMC are designed to give the accurate attenuation required by the connected device and are available in a wide range of attenuation levels.
3. Easy Installation
The FC attenuator from OMC is designed for optical hardware to reduce the dB power, the plug type allows them to be used directly at the end of a patch cable, they also feature a dust cap on the tips for protection.
Attenuator Specifications
| Fiber Connector | FC | Attenuation method | Variable |
| Attenuation | 1~30dB | Transfer Mode | Singlemode |
| Attenuation Accuracy | ±0.8dB | Operating Wavelength(nm) | 1260~1620(SM) |
| Polarization Dependent Loss | ≤0.2dB | Minimize Insertion Loss | <2.5dB |
| Operating Temp Range | -40~80°C | Max Optical Input Power | 200mW |
Applications
With the excellent characteristics, Female to female Variable Fiber Optic Attenuators can be used in fiber optical telecommunication system and optical transmission system. These attenuators can be applied in FTTH, CATV, WAN, fiber optical sensor and metropolitan area network. They are often used as the testing equipment.
DWDM applications
Test & measurement
Optical sensors
Telecommunications applications
