1260~1610nm Inline Fiber Optic Attenuator , 0-60dB Variable Optical Attenuator
| Place of Origin | China |
|---|---|
| Brand Name | OMC or OEM |
| Certification | ROHS and ISO |
| Model Number | 0-60dB Inline Variable |
| Minimum Order Quantity | 1 pcs |
| Price | Negotiable |
| Packaging Details | 20 pieces in a plastic bag. Several bags in a larger plastic bag. hundreds of bags in a cartoon of 54*35*39cm. other size carton is available too. |
| Delivery Time | 3 days |
| Payment Terms | T/T, Western Union |
| Supply Ability | 1000000 pcs per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Wavelength | 1260~1610nm | Cable Option | 2mm Cable |
|---|---|---|---|
| Length | Customized | Fiber Type | Singlemode |
| Initial Insertion Loss | < 1.0dB | Attenuation Range | 0.6~60dB |
| Return Loss | UPC: >55dB APC: >65dB | Original Loss | <0.6dB |
| Precision | 0.02dB | PDL | <0.10dB |
| High Light | inline optical attenuator,variable optical attenuator |
||
Product Description
0-60dB Inline Variable Fiber Optic Attenuator With SC UPC Connector
Single Mode Variable Optical Attenuators allow the user to manually vary the attenuation of the signal in the fiber as it is transmitted through the device. These VOAs can be used to to precisely balance the signal strengths in fiber circuits or to balance an optical signal when evaluating the dynamic range of the measurement system. The maximum specified attenuation is achieved within 10 turns of the adjustment screw.
All in-line VOAs have single mode fiber pigtails with a Ø3 mm jacket. The VOAs are offered unterminated or terminated with 2.0 mm narrow key FC/PC or FC/APC connectors.
Each attenuator has a lens to collimate the light from the input fiber. A blocking device or window can be manually adjusted by a screw
Then, a second lens is used to couple light into the output fiber. Thus, the coupling efficiency is changed until the desired attenuation is obtained.
Technical Specification :
| parameter | SM(9/125) | MM(50/125,62.5/125) | ||
| Attenuation values | 1dB to 20dB(1dB step),25dB,30dB | 1dB to 25dB(1dB step) | ||
| attenuator Wavelength | 1310nm & 1550nm | 850nm &1300nm | ||
| Attenuation Tolerance (dB) | 1-10dB<±1.0dB ( typical ) standard | 2dB,5dB,10dB<±1.0dB(typical ) standard | ||
| 11-25dB<±10% ( typical ) standard | 15dB<±10% ( typical ) standard | |||
| 1-10dB<±0.5dB ( typical ) premium | 2dB,5dB,10dB<±0.5dB(typical ) premium | |||
| 11-25dB<±5% ( typical ) premium | 15dB<±5% ( typical ) premium | |||
| attenuator Return Loss | PC | ≥45 dB |
/ |
|
| UPC | ≥55 dB | |||
| APC | ≥65 dB | |||
| Attenuator mode | Fixed type, male to female type, In-line type, Variable type | |||
| attenuator Operating Temperature | -40°C~+75°C | |||
| attenuator Storage Temperature | -40°C~+85°C | |||

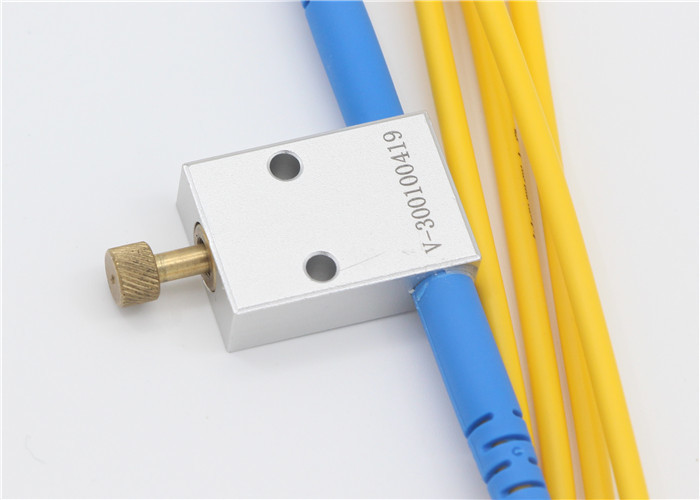

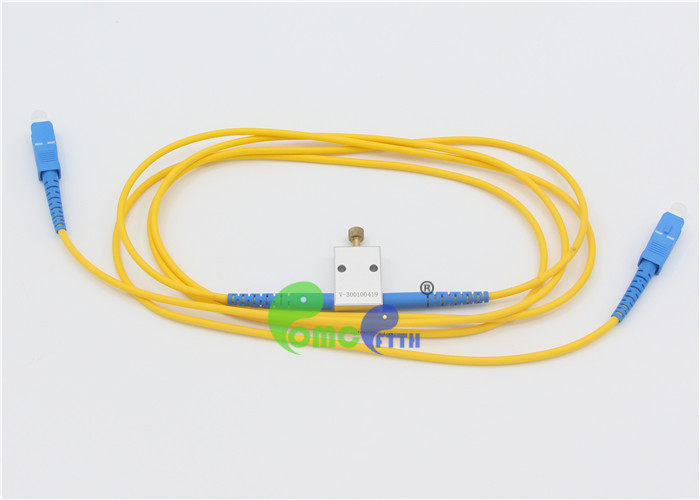

Detailed Picture
Operation of Variable Optical Attenuator
With above excellent characteristics, variable fiber optic in-line attenuators can be used in fiber optical telecommunication system and optical transmission system. These attenuators can be applied in FTTH, CATV, LAN, fiber optical sensor and subscriber loop. They are often used as the testing equipment.
Packaging & Delivery
| Packaging Details | 20 pieces in a plastic bag. Several bags in a larger plastic bag. hundreds of bags in a cartoon of 54*35*39cm. other size carton is available too. |
|---|---|
| Delivery Time | Shipped in 3 days after payment |
